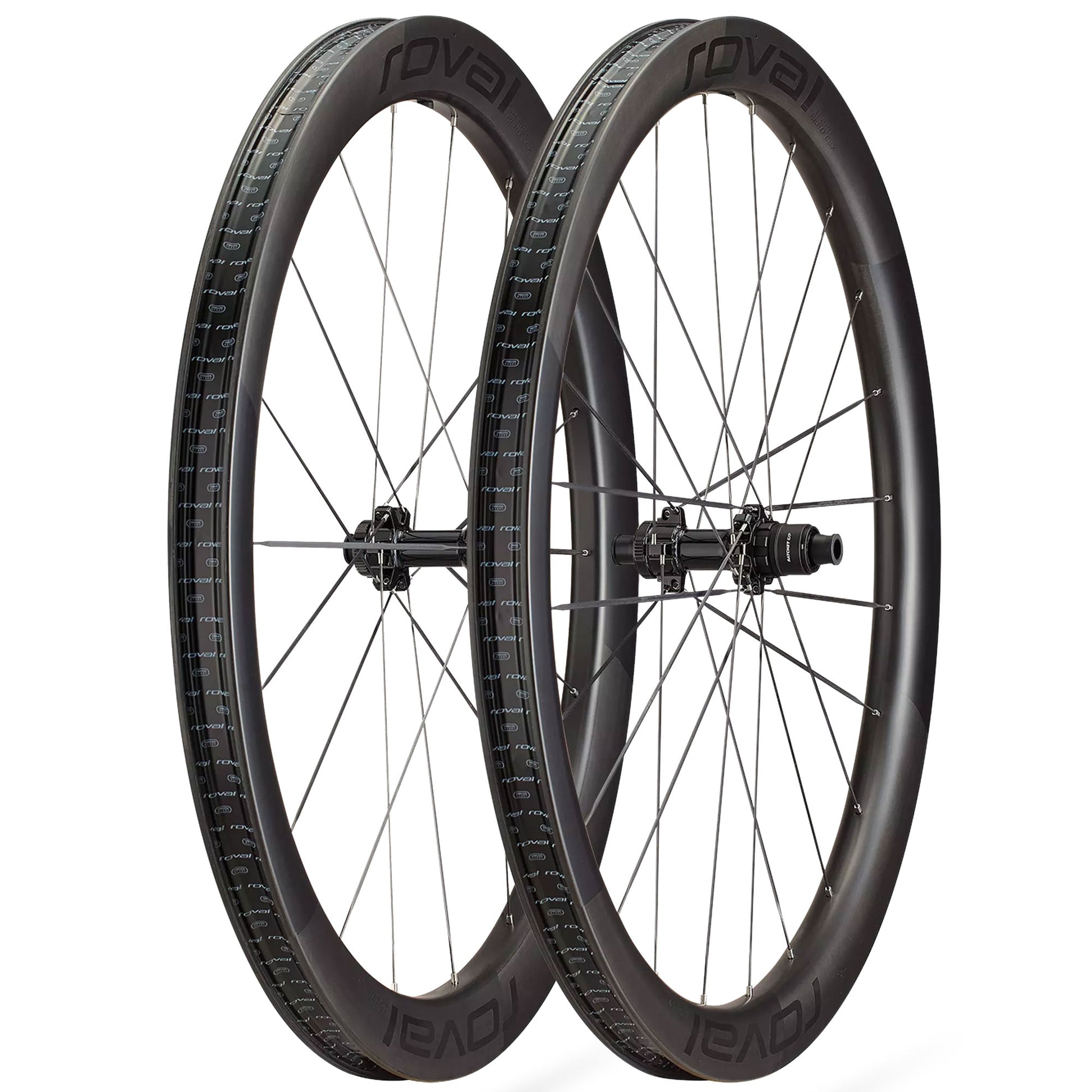

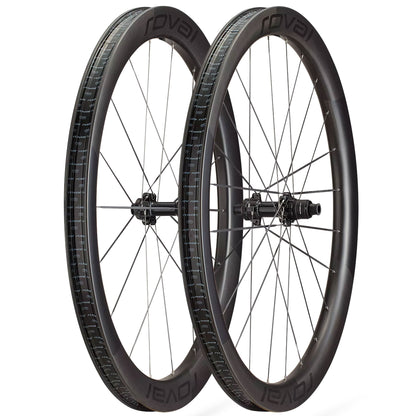

Roval Terra Aero CLX Carbon 700c Gravel Bike Wheels (Shimano HG Freehub)
Roval Terra Aero CLX Carbon 700c Gravel Bike Wheels (Shimano HG Freehub)
Regular price
$2,000.00 AUD
Regular price
Sale price
$2,000.00 AUD
Unit price
per
GST included.
Shipping calculated at checkout.
In warehouse - Allow additional 5 - 7 days delivery
Couldn't load pickup availability
The fastest gravel racing now demands the same level of aerodynamic discipline historically reserved for World Tour races. Riders are pushing deeper into speed ranges where aero drag matters and they’re doing it on rougher terrain with bigger tires. Give yourself every advantage... Up to 5.84 watts faster than the previous generation, with a first-of-its-kind 50mm Chopped Aero Speed design.
At a Glance
- Use: Gravel Racing
- Weight: 1,340g with tape & valves
- Rim Depth & Width: 50mm / 45mm F/R external, 38.5mm external width
- Hub & Engagement: DT Swiss 180 EXP internals, 36T
- Spokes: Roval Aero Composite Spokes by ARRIS
Technical Specifications

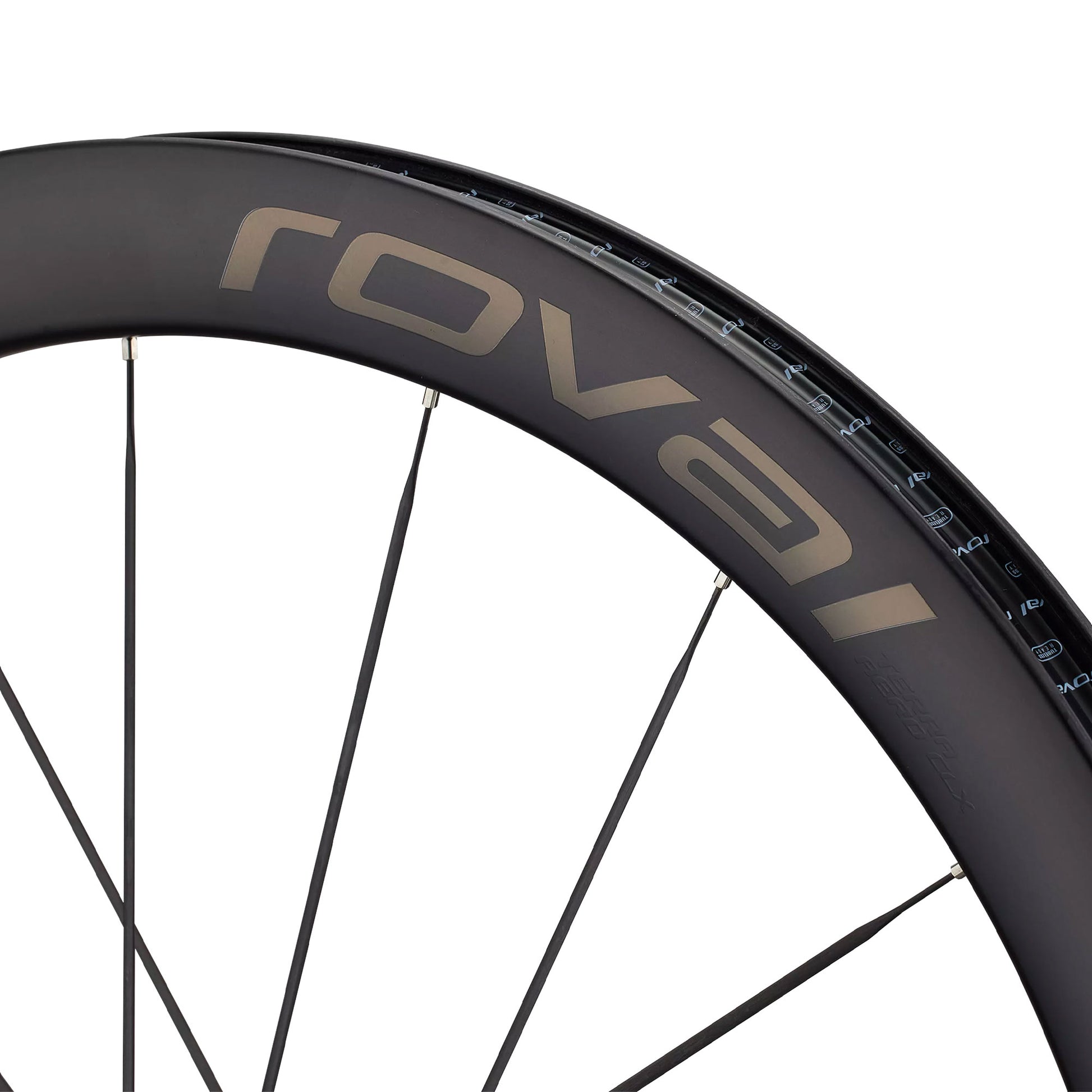

Rims
- Wheel Size: 700c
- Tubeless Compatibility: Yes
- Insert Compatibility: Yes
- Brake Compatibility: Disc (Centerlock)
- Rim Construction: Carbon Clincher Hooked
- Valve Stem Length: Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
- Hole Count: Front: 18H, Rear: 24H

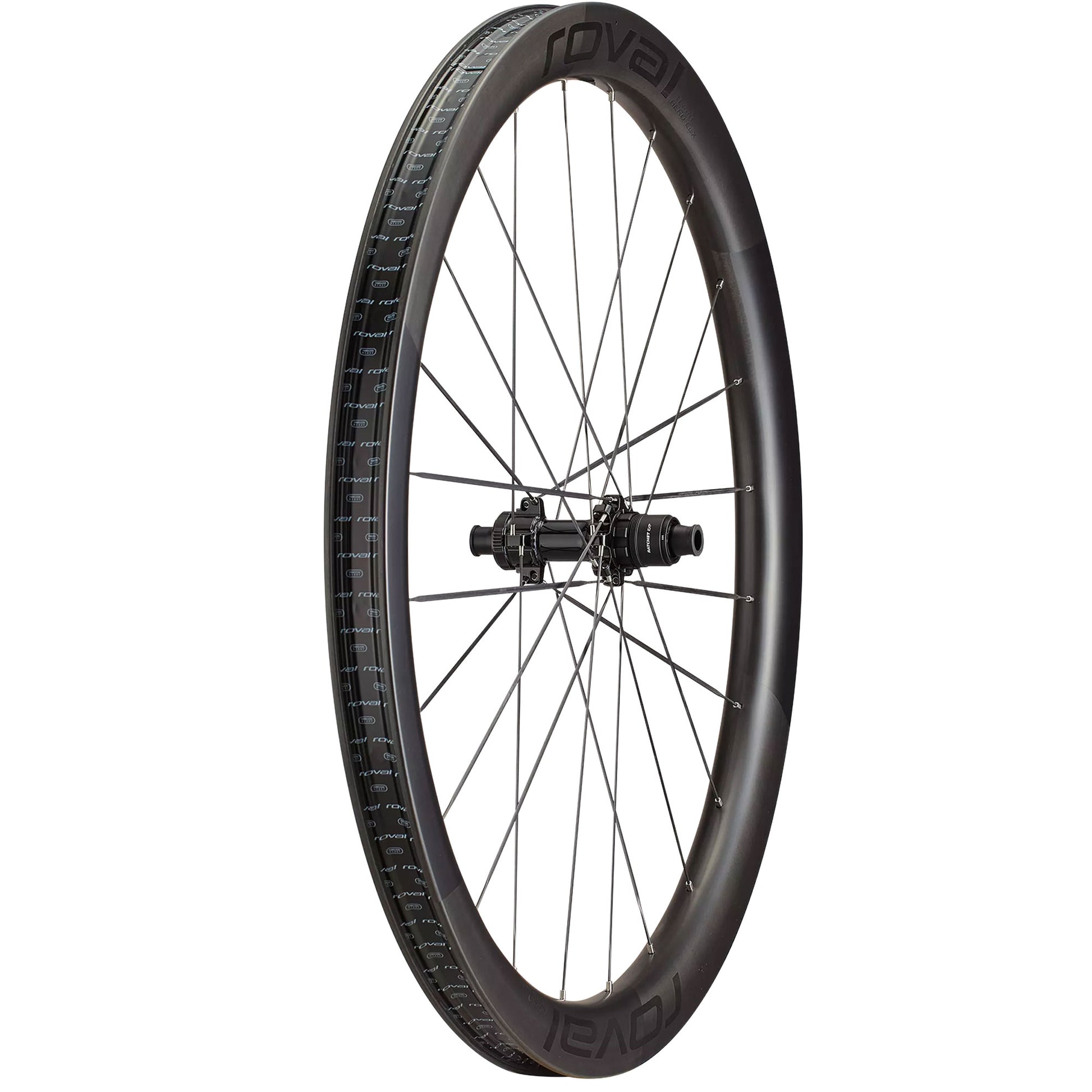

- Rear Rim: Terra Aero CLX Carbon Clincher Rear, 700c (CR2571)
- Rear Rim Dimensions: Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

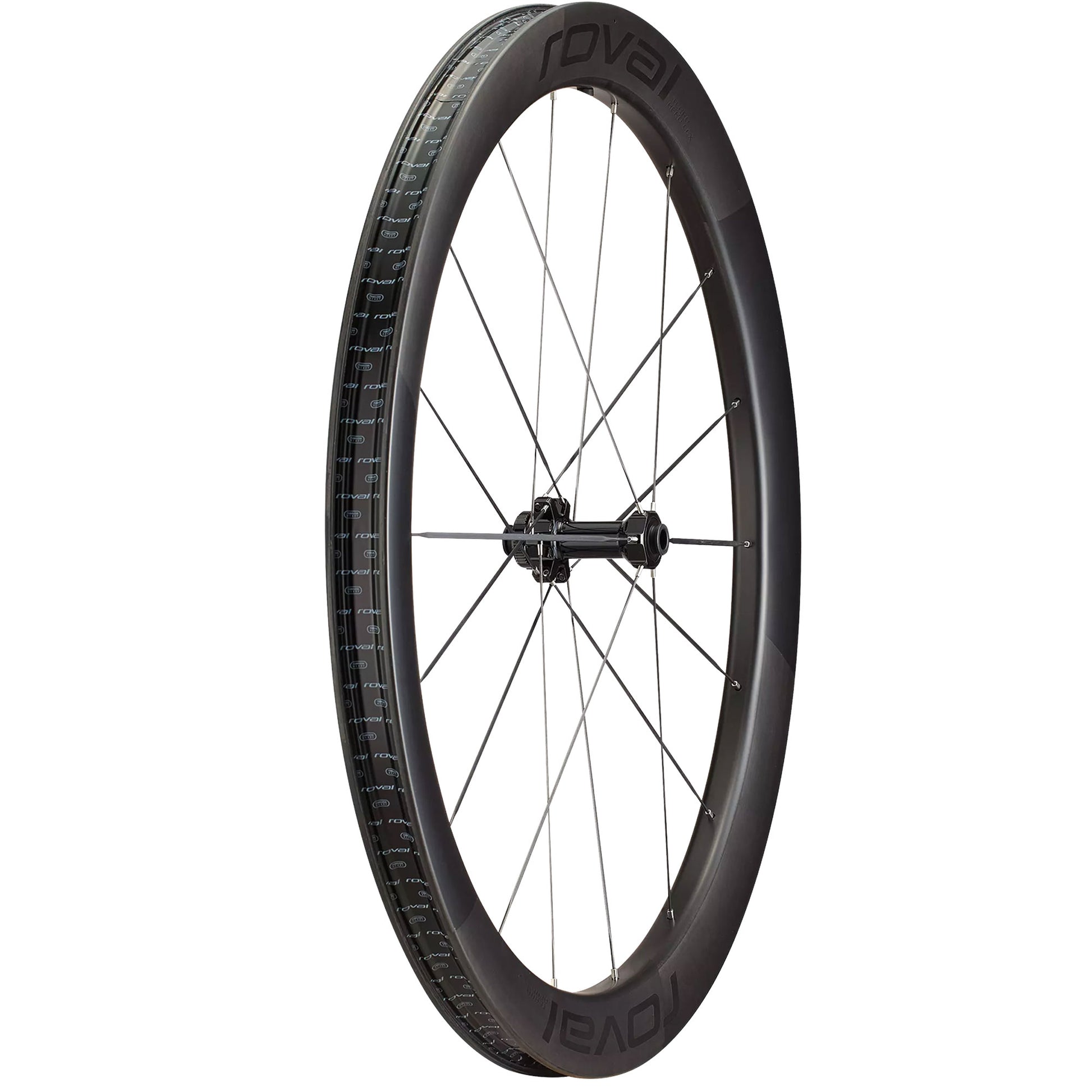

- Front Rim: Terra Aero CLX Carbon Clincher, 700c (CR2570)
- Front Rim Dimensions: Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
Hubs

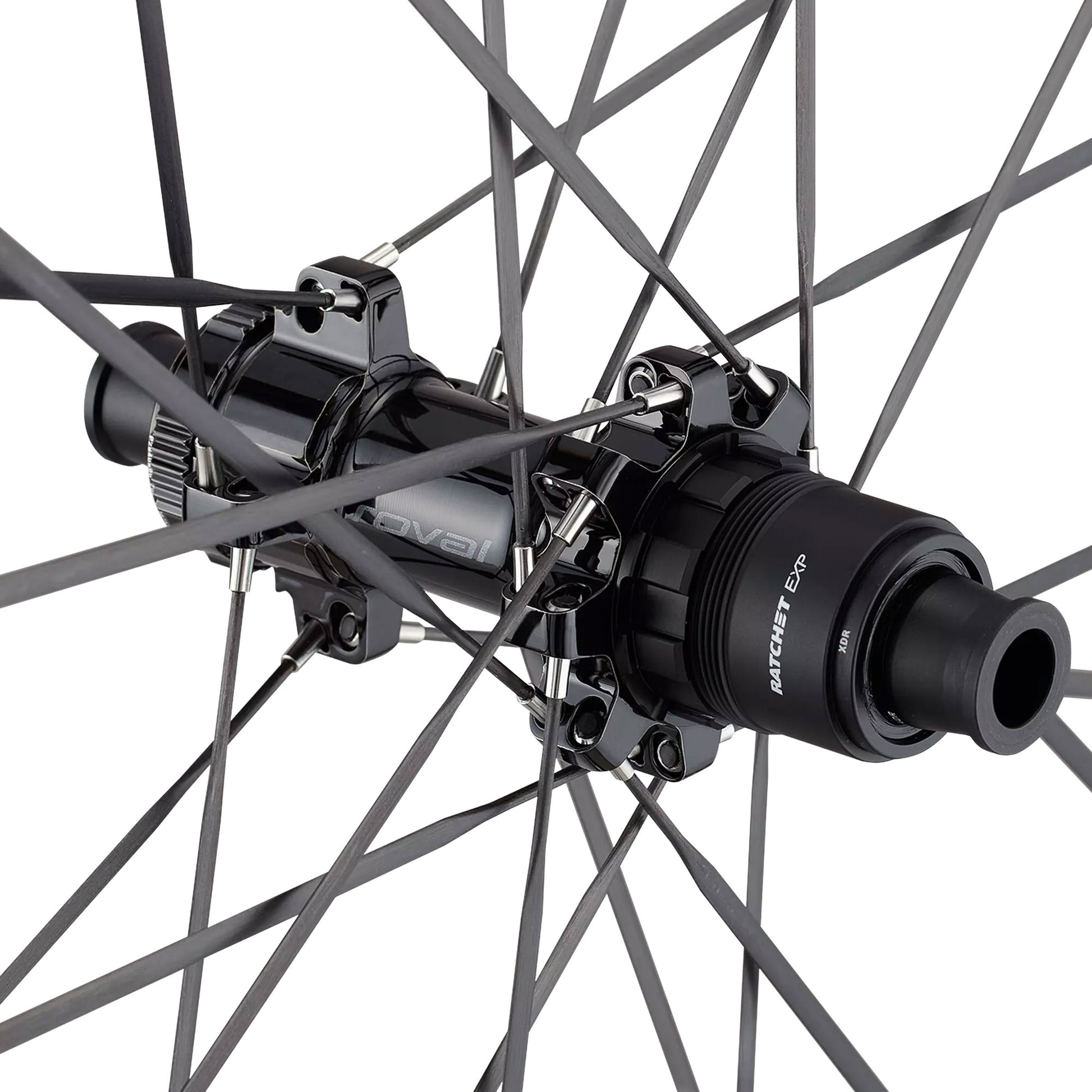

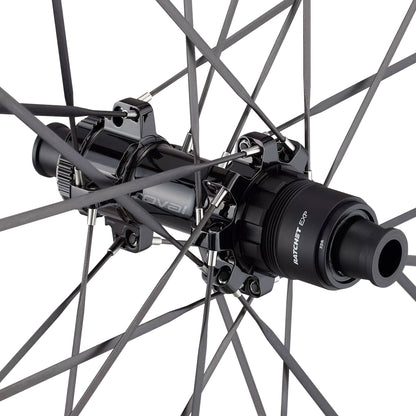

- Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
- Rear Freehub Body: DT Swiss Ratchet EXP (36T ): Sram XD-R
- Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)

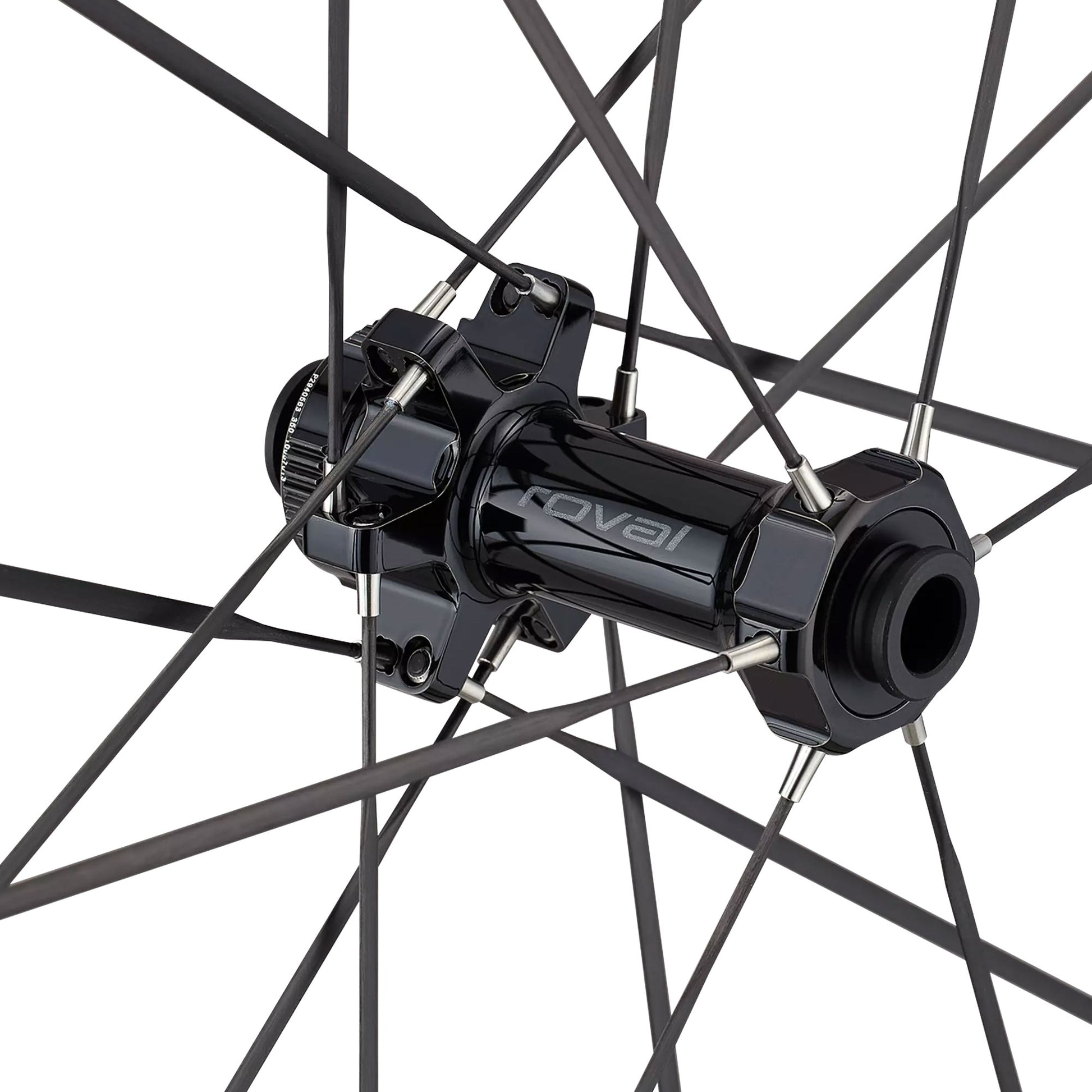

- Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
- Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
Spokes & Nipples
- Nipples: ARRIS MK4 Spoke Nipple Alloy, 6mm
- Rear Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm)
- Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
- Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
Tire Info
- Tubeless Tape Width: 30mm
- Tire Type: Clincher Tubeless and Clincher Tube Type
- Design Tire: Tracer TLR 45mm
- Approved Tire Widths : 35mm-60mm (2.2")
- Max Pressure: 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
- Weight: Wheelset Weight 1340g (with valves and tape)
- Rear Weight: 700g (with valves and tape)
- Front Weight: 640g (with valves and tape)
General
- Warranty: Limited Lifetime Warranty
- Assembly Method: Hand Built
- Weight Limit: 275 lbs / 125 kg
- Certifications: ISO 5775-2, UCI Approved
- E-bike Approved: No
- Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
Description
The fastest gravel racing now demands the same level of aerodynamic discipline historically reserved for World Tour races. Riders are pushing deeper into speed ranges where aero drag matters and they’re doing it on rougher terrain with bigger tires. Give yourself every advantage... Up to 5.84 watts faster than the previous generation, with a first-of-its-kind 50mm Chopped Aero Speed design.
At a Glance
- Use: Gravel Racing
- Weight: 1,340g with tape & valves
- Rim Depth & Width: 50mm / 45mm F/R external, 38.5mm external width
- Hub & Engagement: DT Swiss 180 EXP internals, 36T
- Spokes: Roval Aero Composite Spokes by ARRIS
Technical Specifications
Rims
- Wheel Size: 700c
- Tubeless Compatibility: Yes
- Insert Compatibility: Yes
- Brake Compatibility: Disc (Centerlock)
- Rim Construction: Carbon Clincher Hooked
- Valve Stem Length: Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
- Hole Count: Front: 18H, Rear: 24H
- Rear Rim: Terra Aero CLX Carbon Clincher Rear, 700c (CR2571)
- Rear Rim Dimensions: Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
- Front Rim: Terra Aero CLX Carbon Clincher, 700c (CR2570)
- Front Rim Dimensions: Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
Hubs
- Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
- Rear Freehub Body: DT Swiss Ratchet EXP (36T ): Sram XD-R
- Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)
- Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
- Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
Spokes & Nipples
- Nipples: ARRIS MK4 Spoke Nipple Alloy, 6mm
- Rear Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm)
- Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
- Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
Tire Info
- Tubeless Tape Width: 30mm
- Tire Type: Clincher Tubeless and Clincher Tube Type
- Design Tire: Tracer TLR 45mm
- Approved Tire Widths : 35mm-60mm (2.2")
- Max Pressure: 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
- Weight: Wheelset Weight 1340g (with valves and tape)
- Rear Weight: 700g (with valves and tape)
- Front Weight: 640g (with valves and tape)
General
- Warranty: Limited Lifetime Warranty
- Assembly Method: Hand Built
- Weight Limit: 275 lbs / 125 kg
- Certifications: ISO 5775-2, UCI Approved
- E-bike Approved: No
- Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
