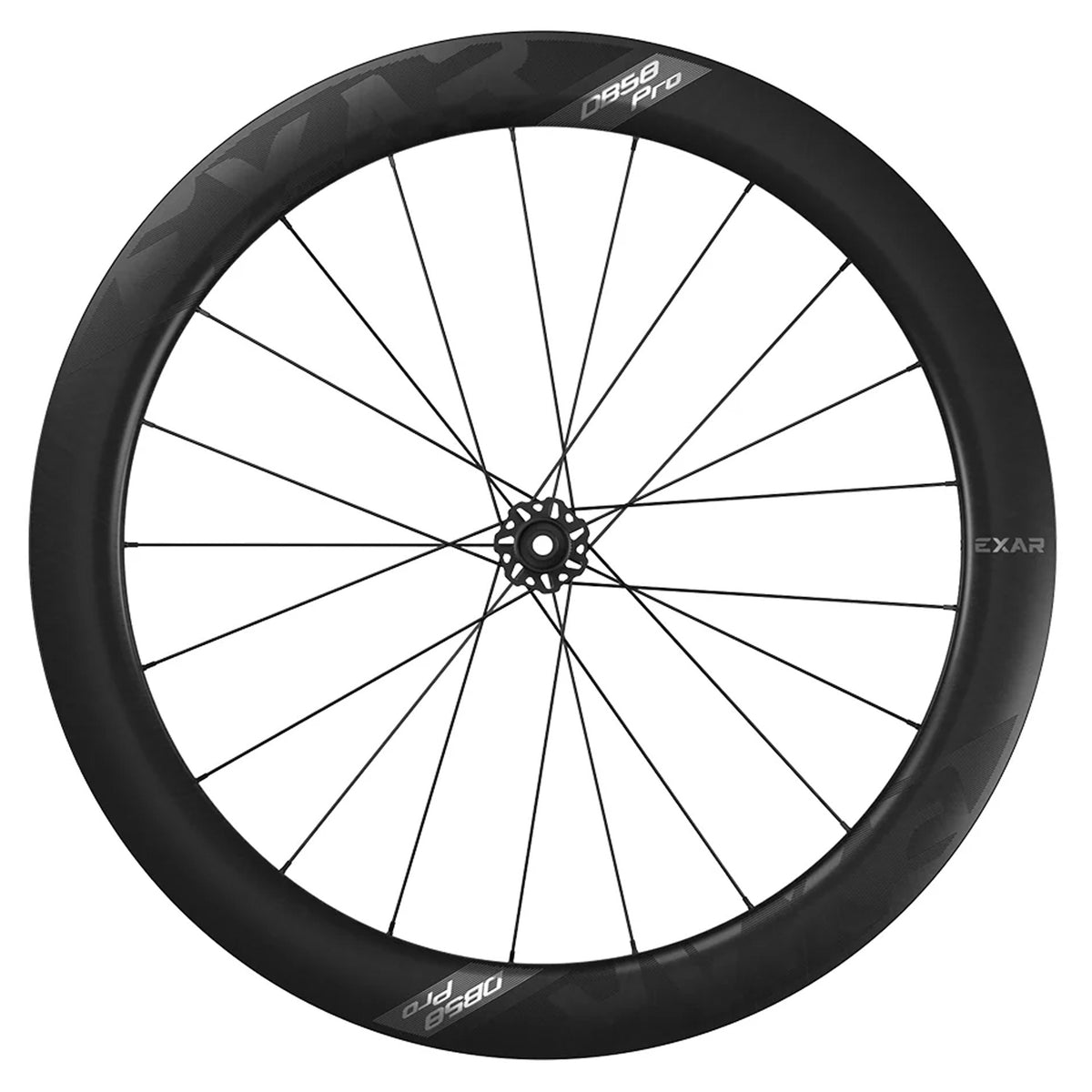

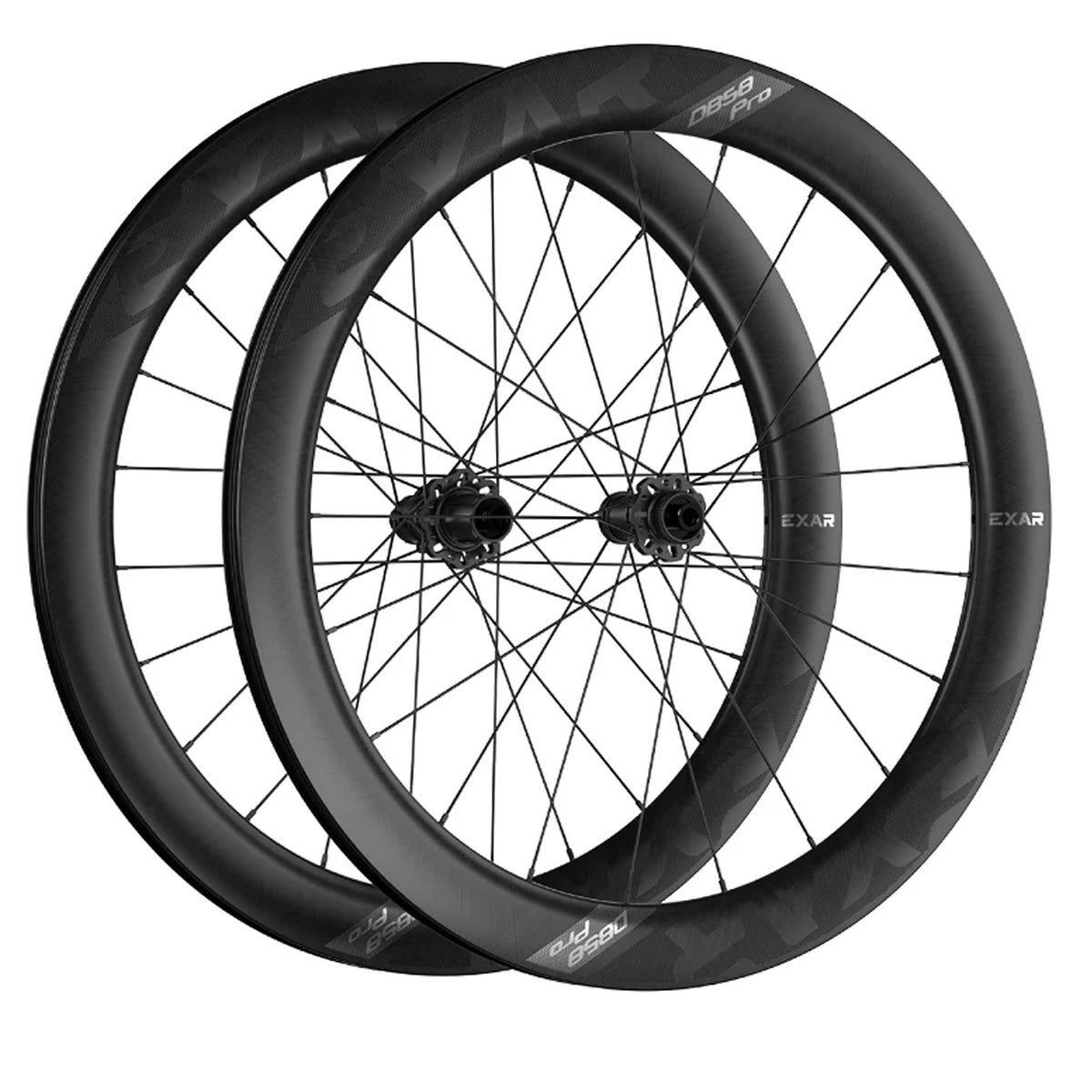

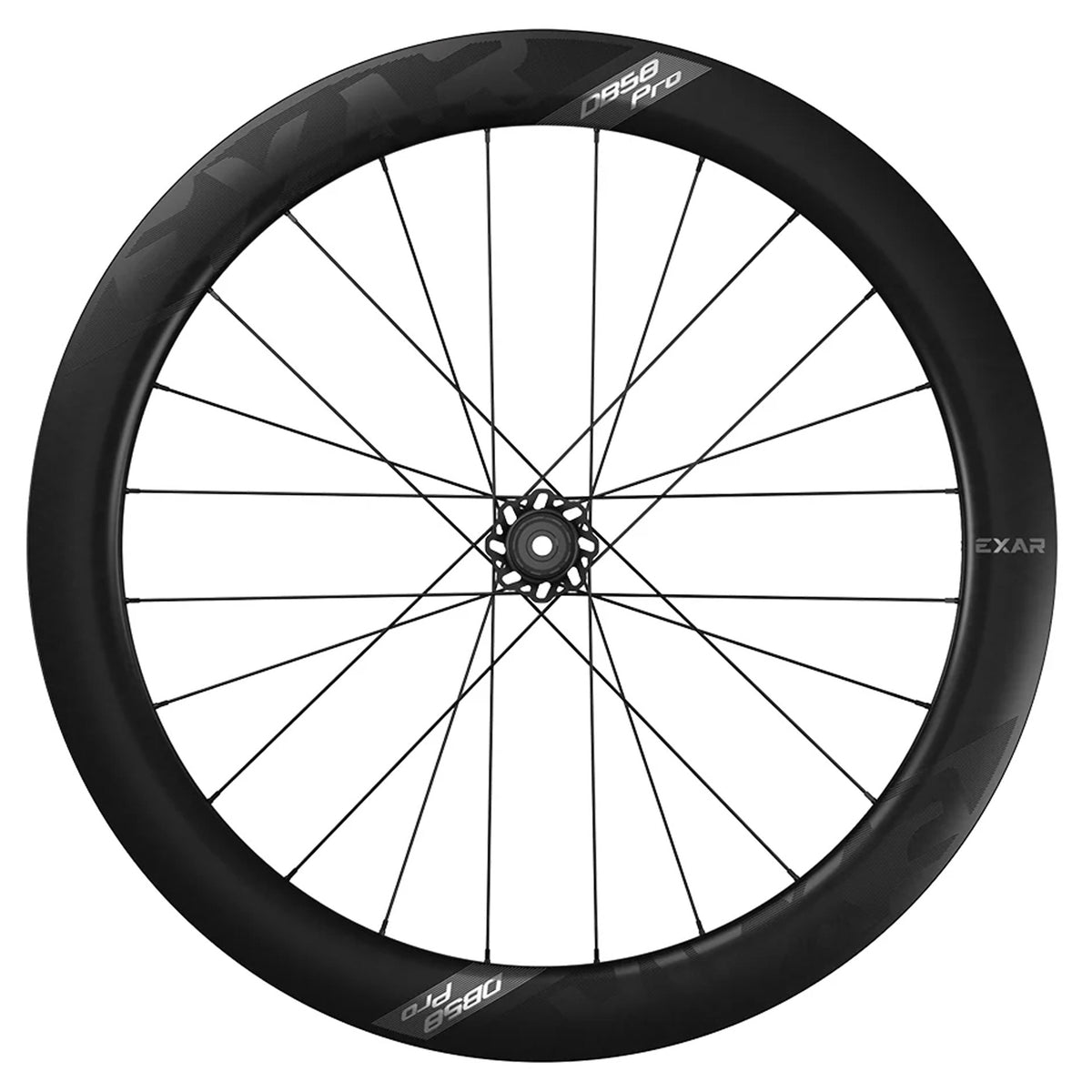

Magene EXAR DB58 Pro 700C Carbon Road Bike Wheelset - Shimano HG Freehub

If you are looking for an aftermarket performance road wheelset that's competition-ready or just to give you a sneaky advantage in the local club ride, the Magene EXAR DB58 Pro series wheelset might be perfect. The Pro series uses the stiffest HI-MOD 800 carbon fibre in the rim layup. Front and rear rims are both 58mm high so if your preferred terrain is undulating to flat and you want higher average speeds, this rims depth is for you. Spokes are flat bladed aero steel.

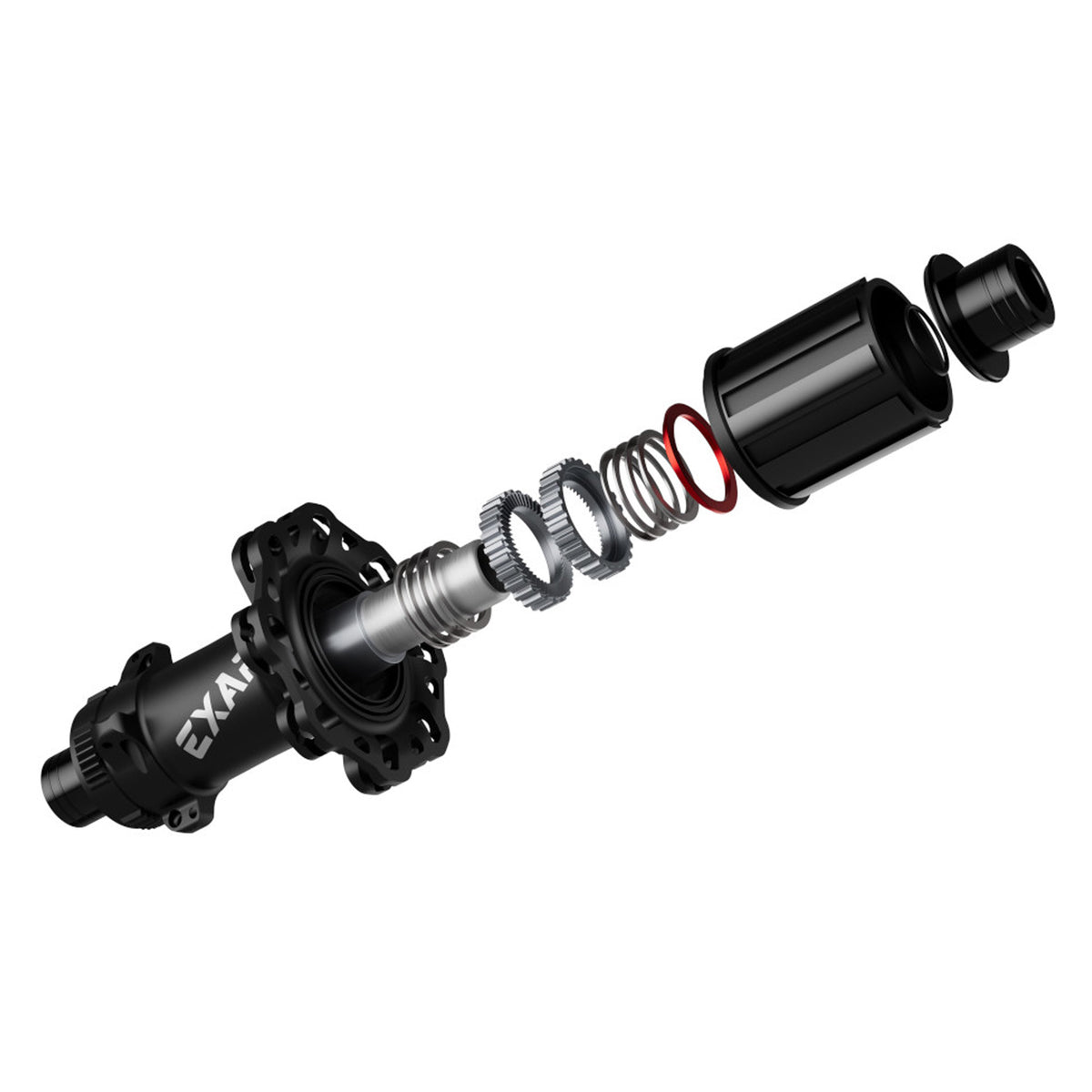

Flat Engagement Ratchet Ensures Stable Performance

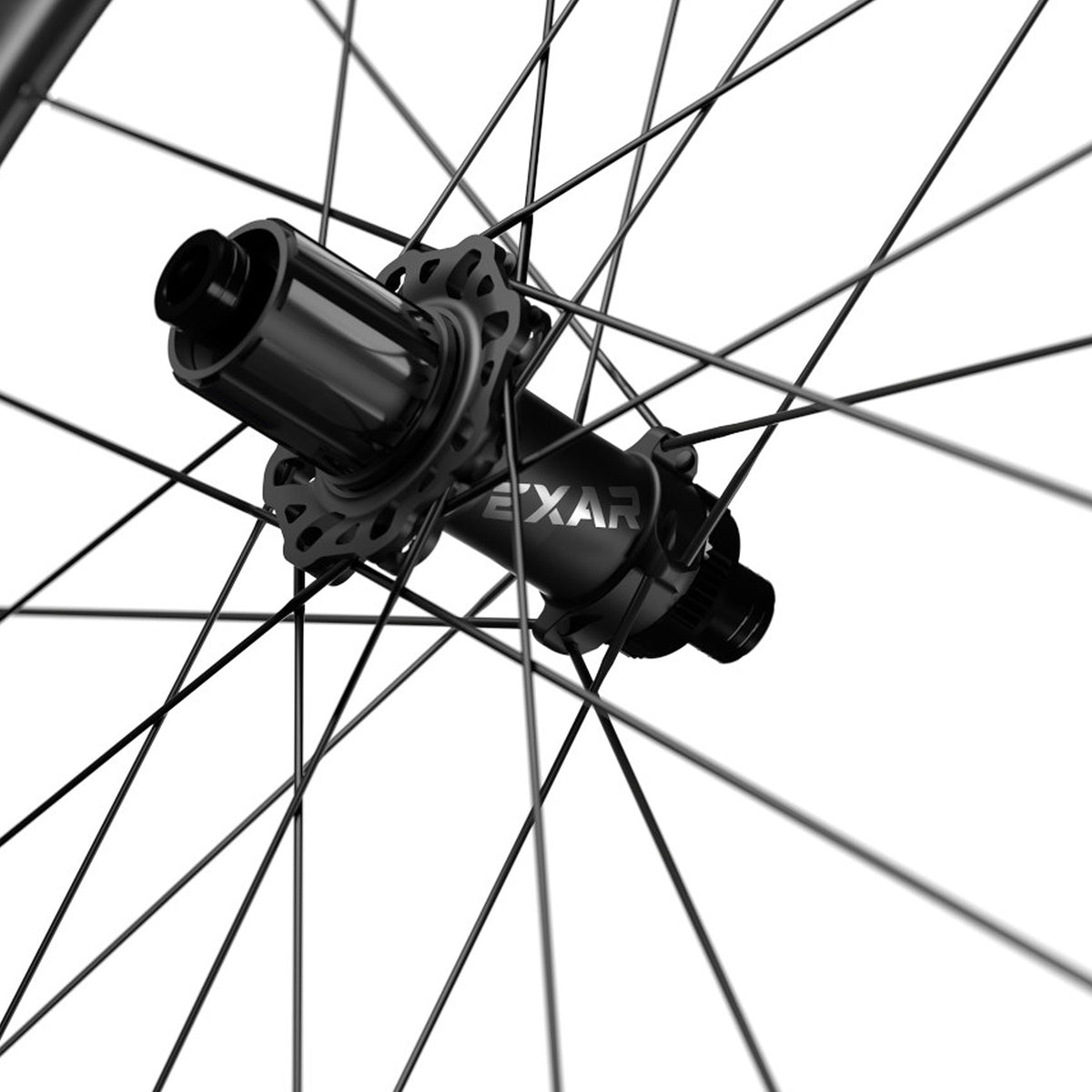

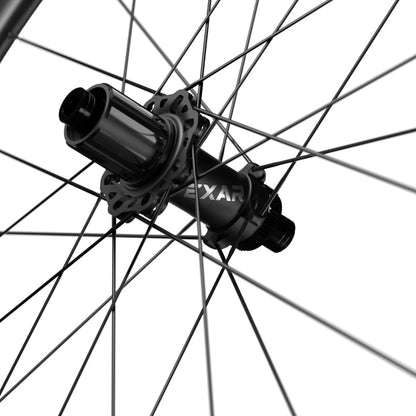

The rear hub features a 36-tooth flat ratchet, which has a faster engagement with larger surface and more durability that many counterparts.

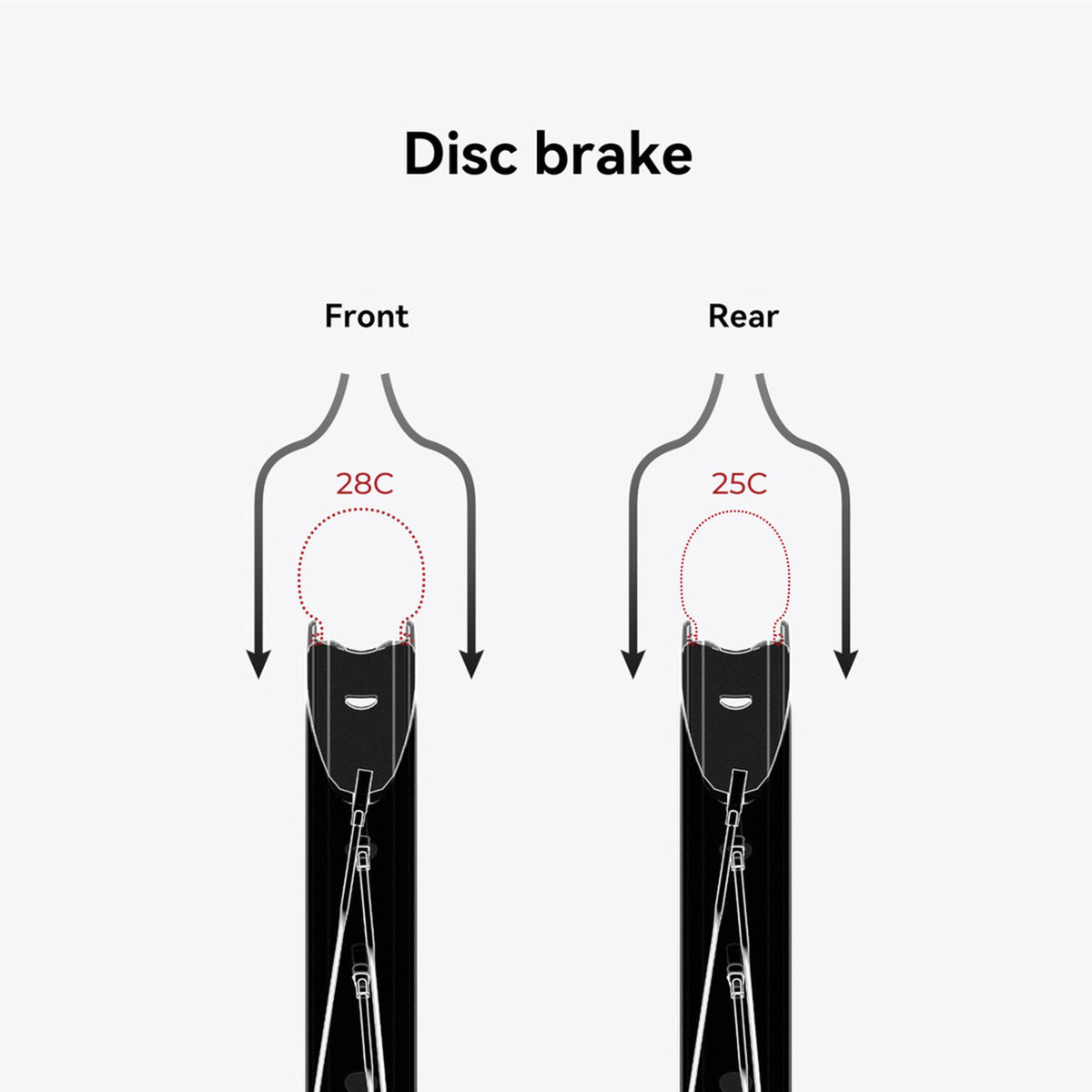

Wider for Better Aerodynamics
Pro series wheelsets have an external width of 27mm and an internal width of 20mm.  The 27mm wide rim provides a flatter aerodynamic surface with 25c and 28c outer tires and thus reducing air resistance.

UCI Approved
EXAR Pro series wheelsets have passed UCI impact tests. After applying an energy of 40 J on the bare carbon rim, the deviation complies with UCI standard.

SPECIFICATIONS

• Brake type - Disc Brake Centrelock
• Rim Height - 58mm
• Weight - 1500g
• External width - 27mm
• Internal width - 20mm
• Rim Material - HI-MOD carbon fiber
• Spoke Type - Pillar Wing21 Aero flat steel
• Ratchet - 36T (Compatible with DT system. Replaceable with different tooth amount DT ratchet)
• Front Wheel Spoke Tension - 100kgf±10%
• Rear Wheel Spoke Tension - Drive side 120kgf±10% Non-drive side 110kgf±10%
• Front Wheel Spoke Lacing - DB58 Pro: 21H, 2:1, brake side×2, non-brake side radial lacing
• Rear Wheel Spoke Lacing - DB58 Pro: 24H, 2:1, drive side×2, brake side×2
• Rim Type - Front + Rear wheel: Symmetric
• Frame Spacing - 100/142mm thru-axle (100/135mm quick release available separately)
• Freehub - Standard Shimano HG11-speed (Campagnolo N3W and SRAM XDR freehubs are available separately)
• Compatible Cassette - Shimano 8-12 speed, SRAM 8-12 peed (require separate XDR freehub for 12s), Campagnolo 8-13 speed (require separate N3W freehub)
• Compatible Tire Type - Clincher tire, tubeless tire
• Compatible Tire Width - Compatible with 25c tire and above [Suggested tire width is 28c-32c]
• Maximum Tire Pressure - Clincher - 120psi for 25c, 110psi for 28c, 100 psi for 30c, 90psi for 32c. |. Tubeless - 110psi for 25c, 100psi for 28c, 90psi for 30c, 80psi for 32c

INCLUDES

• Carbon fiber front wheel *1
• Carbon fiber rear wheel *1
• Tubeless rim tape *2 (factory-installed)
• Instruction manual
• Tubeless valve *2
