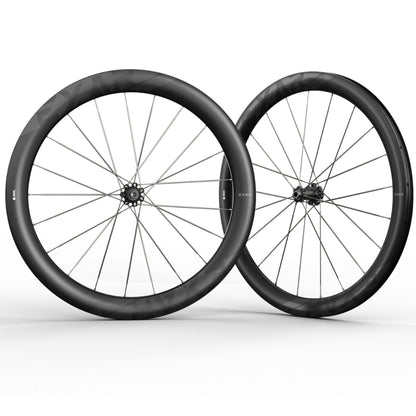

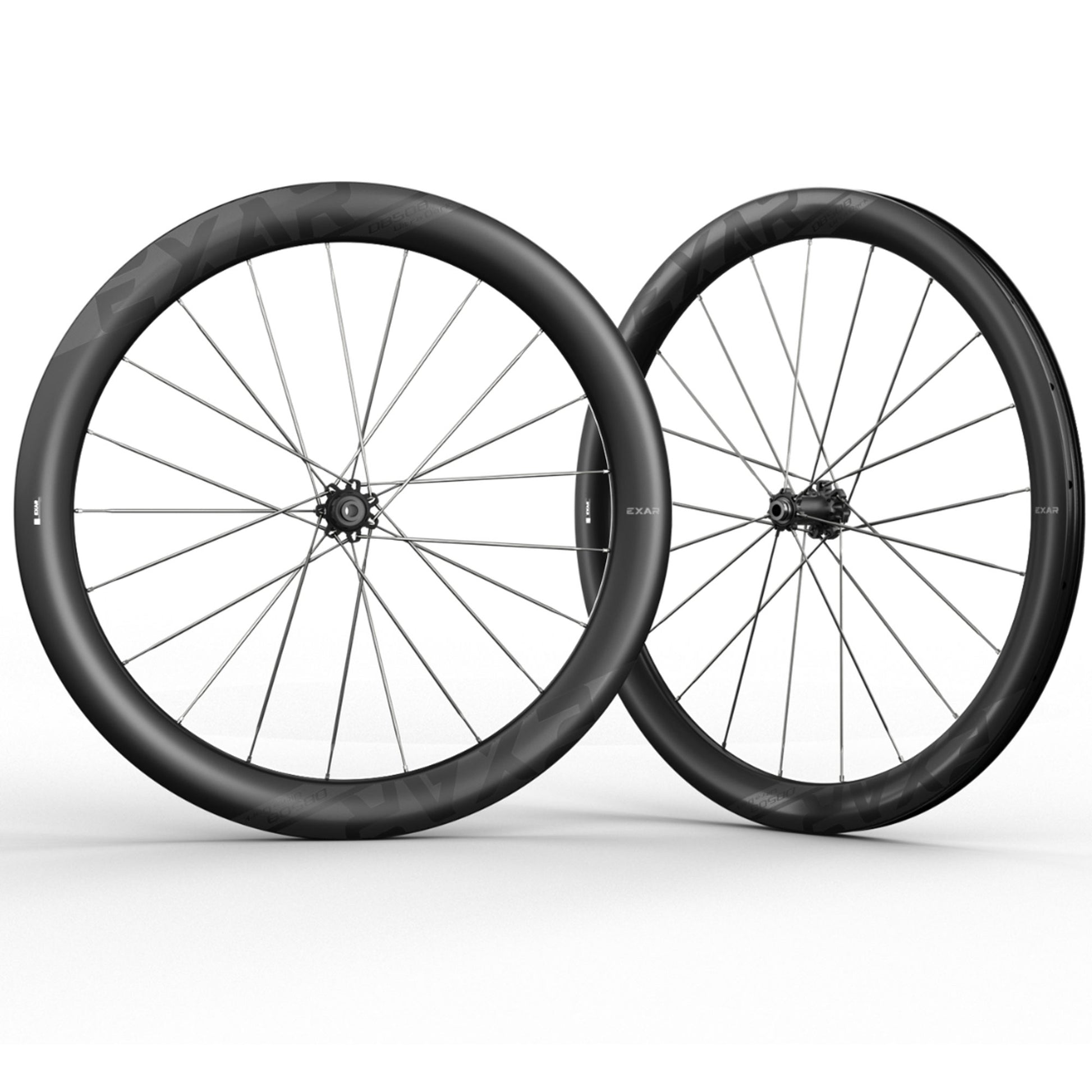

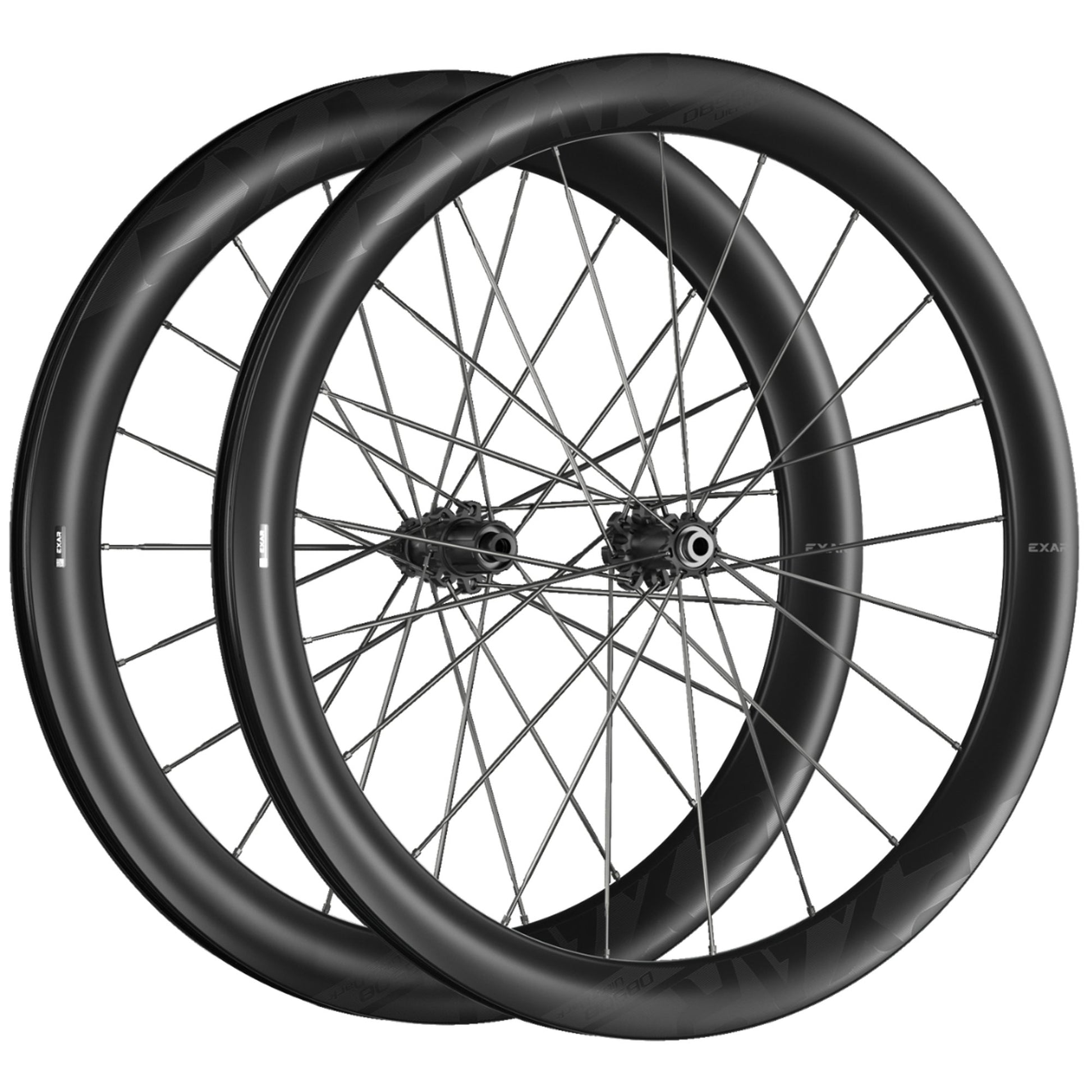

2026 Magene EXAR DB508 Ultra Dark Wheelset, Shimano Hyperglide Freehub - WITH FREE WHEEL BAGS!
2026 Magene EXAR DB508 Ultra Dark Wheelset, Shimano Hyperglide Freehub - WITH FREE WHEEL BAGS!
Low stock: 1 left
Couldn't load pickup availability
Designed specifically for disc brakes DB508 UltraDark offer first-class performance without breaking the bank. The DB508 Ultra features a lower front and higher rear rim height. The new dark black design complements a variety of frames. Upgraded hubs and spokes provide faster and more stable responses, making this wheelset an optimal choice for performance enthusiasts.
Integral Design, Lighter and Faster
Riders want wheelsets that are lighter, stiffer, and faster. EXAR engineers have risen to the challenge with Ultra wheelset to help riders ride faster in the race. The EXAR UltraDark wheelset weighs in at 1390 grams per pair and features HI-MOD T800 carbon fibre rims for light weight, excellent lateral stiffness and faster acceleration.
Lower Front Wheel and Higher Rear Wheel Design
The EXAR UltraDark wheelset features a lower profile 50mm deep front rim and 58mm deep rear rim, an optimum balance in aerodynamics and controllability especially in crosswinds.

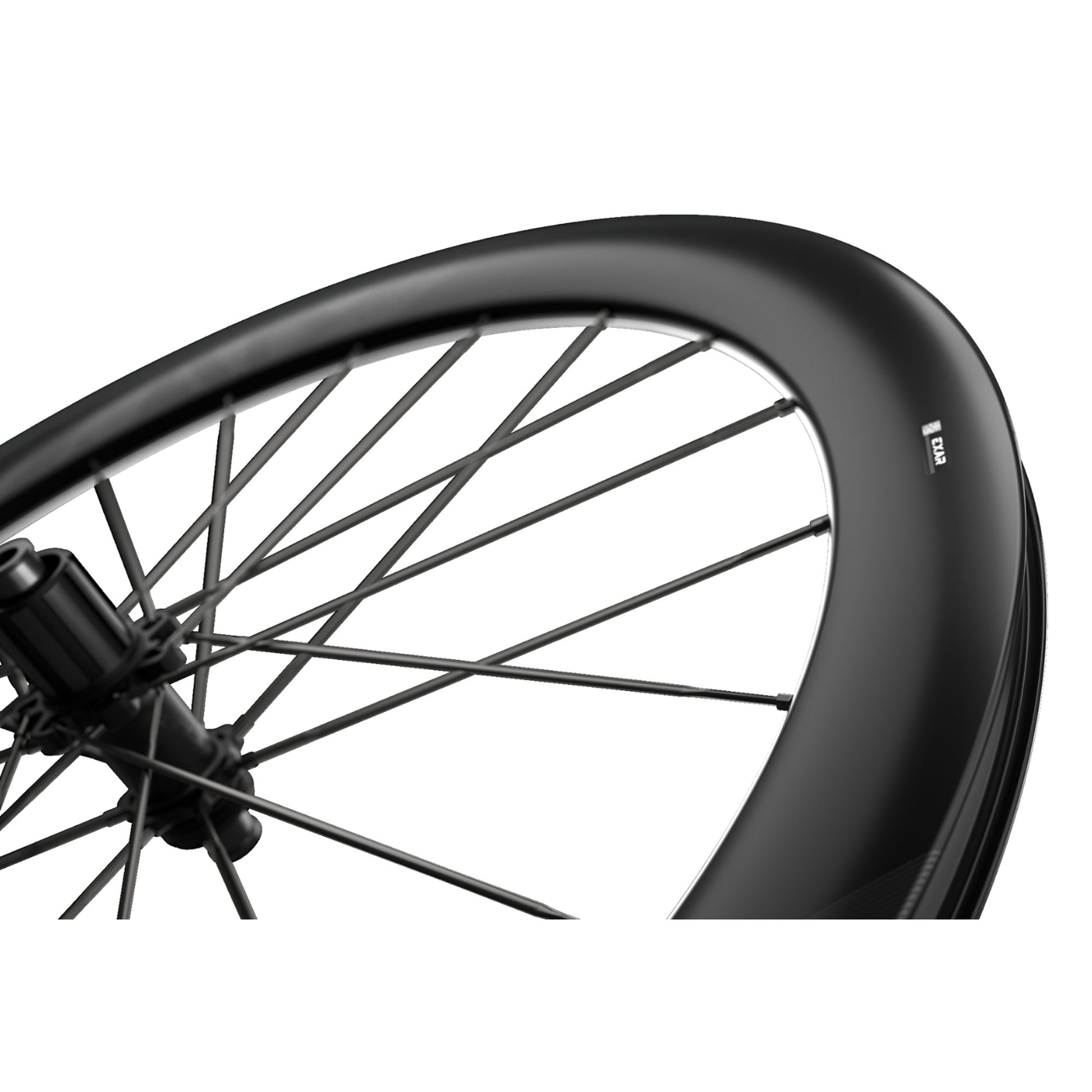

30mm Width Rim, More Aerodynamic and Comfortable

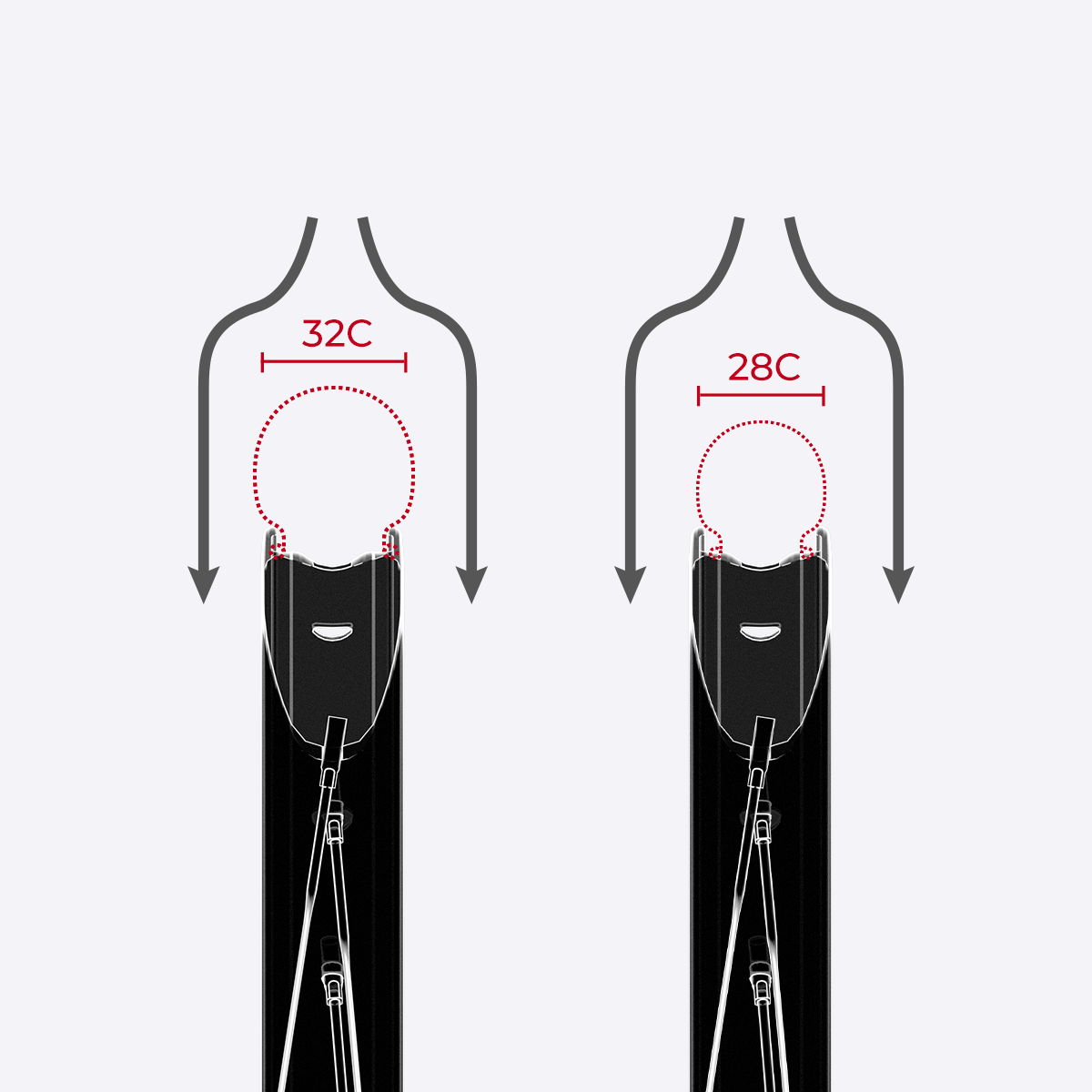

A 30mm width rim and 23mm internal width are purely designed for disc brake structure. It ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well. Optimised for tyre widths 28-32mm.

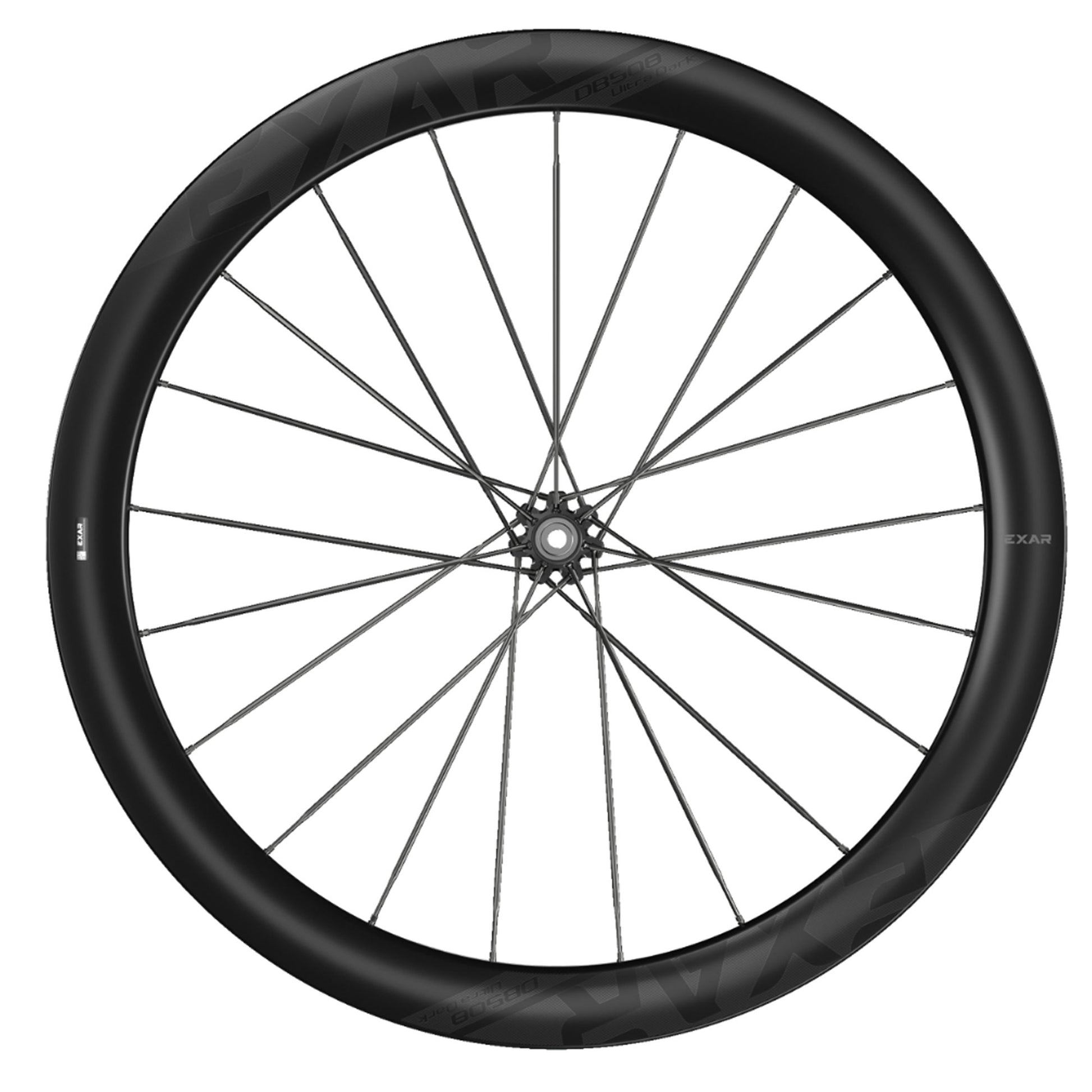

Full Carbon Fibre Spokes, Contribute Ultra-Stiffness
EXAR UltraDark carbon fibre wheelset features HI-MOD T800 carbon fibre spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fibre spokes have higher tensile strength and can withstand 30% more tensile force. The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.

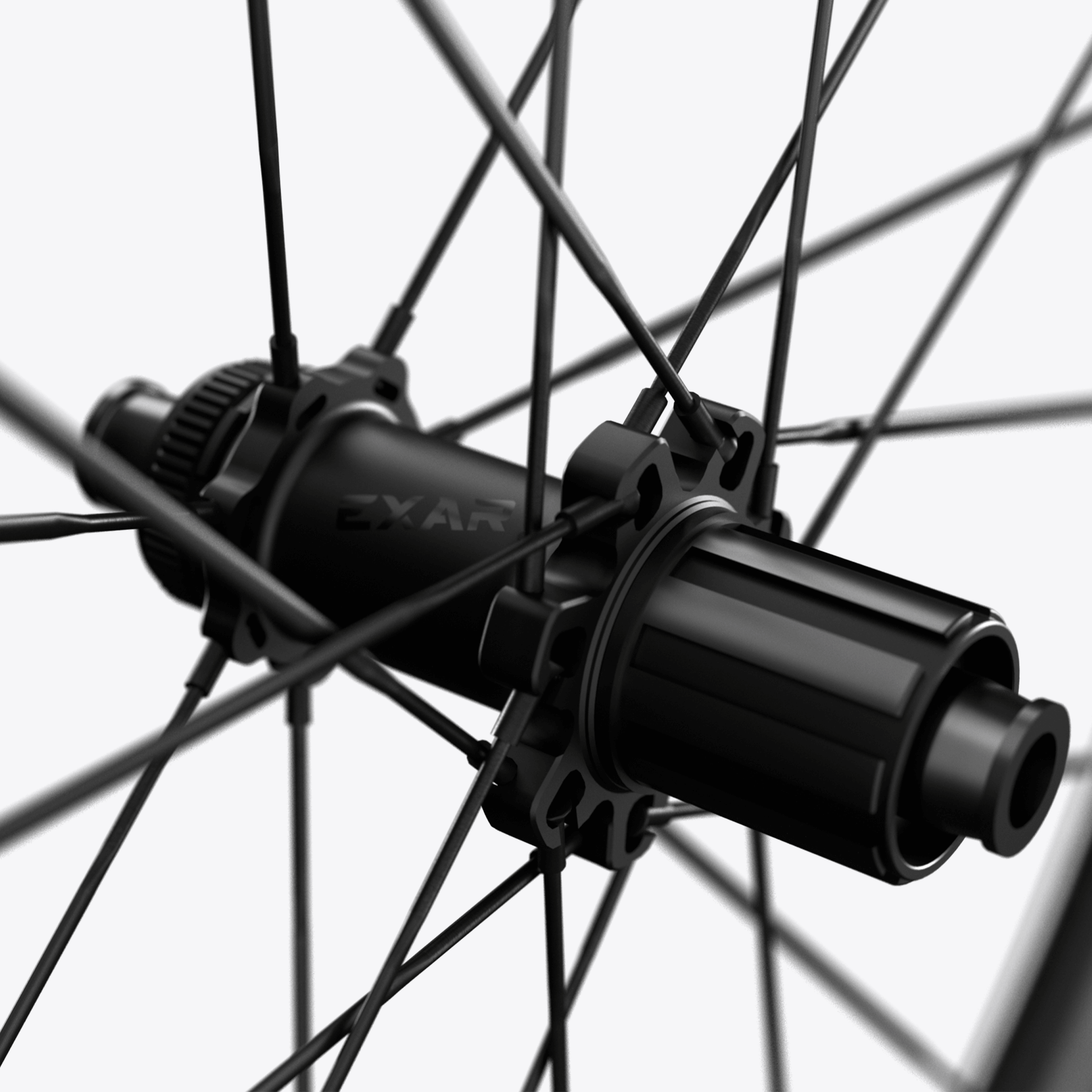

Flat Engagement Ratchet Design
The rear hub features a new 36-tooth flat ratchet, which has tighter engagement with a larger surface making it more durable, with fast and precise engagement.
Specifications
- Brake: DIsc Only
- Rim Height: Front Wheel - 50mm, Rear Wheel 58mm
- Wheel set Weight: 1390g ±3%
- Rider/Bike Weight 110 kg's Maximum
- External Rim Width: 30mm
- Internal Rim Width: 23mm
- Bearings - Standard
- Rim Material: HI-MOD T800 Carbon Fiber
- Spokes: HI-MOD T800 Carbon Fiber 9 (Front wheel tension: 110kgf±10%. Rear Wheel Tension: Drive Side 130kgf±10%, Non-drive Side 110kgf±10%)
- Ratchet:
- Axel: 100/142mm thru-axle
- Freehub: Shimano HG 11-speed installed (Campagnolo N3W and SRAM XDR Freehubs are available separately)
- Compatible with Clincher & Tubeless tyres (hooked rim)
- Compatible tyre width: Compatible with 25c Tyre and Above, Suggested Tyre Width is 28c - 32c
Description
Designed specifically for disc brakes DB508 UltraDark offer first-class performance without breaking the bank. The DB508 Ultra features a lower front and higher rear rim height. The new dark black design complements a variety of frames. Upgraded hubs and spokes provide faster and more stable responses, making this wheelset an optimal choice for performance enthusiasts.
Integral Design, Lighter and Faster
Riders want wheelsets that are lighter, stiffer, and faster. EXAR engineers have risen to the challenge with Ultra wheelset to help riders ride faster in the race. The EXAR UltraDark wheelset weighs in at 1390 grams per pair and features HI-MOD T800 carbon fibre rims for light weight, excellent lateral stiffness and faster acceleration.
Lower Front Wheel and Higher Rear Wheel Design
The EXAR UltraDark wheelset features a lower profile 50mm deep front rim and 58mm deep rear rim, an optimum balance in aerodynamics and controllability especially in crosswinds.
30mm Width Rim, More Aerodynamic and Comfortable
A 30mm width rim and 23mm internal width are purely designed for disc brake structure. It ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well. Optimised for tyre widths 28-32mm.
Full Carbon Fibre Spokes, Contribute Ultra-Stiffness
EXAR UltraDark carbon fibre wheelset features HI-MOD T800 carbon fibre spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fibre spokes have higher tensile strength and can withstand 30% more tensile force. The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.
Flat Engagement Ratchet Design
The rear hub features a new 36-tooth flat ratchet, which has tighter engagement with a larger surface making it more durable, with fast and precise engagement.
Specifications
- Brake: DIsc Only
- Rim Height: Front Wheel - 50mm, Rear Wheel 58mm
- Wheel set Weight: 1390g ±3%
- Rider/Bike Weight 110 kg's Maximum
- External Rim Width: 30mm
- Internal Rim Width: 23mm
- Bearings - Standard
- Rim Material: HI-MOD T800 Carbon Fiber
- Spokes: HI-MOD T800 Carbon Fiber 9 (Front wheel tension: 110kgf±10%. Rear Wheel Tension: Drive Side 130kgf±10%, Non-drive Side 110kgf±10%)
- Ratchet:
- Axel: 100/142mm thru-axle
- Freehub: Shimano HG 11-speed installed (Campagnolo N3W and SRAM XDR Freehubs are available separately)
- Compatible with Clincher & Tubeless tyres (hooked rim)
- Compatible tyre width: Compatible with 25c Tyre and Above, Suggested Tyre Width is 28c - 32c
