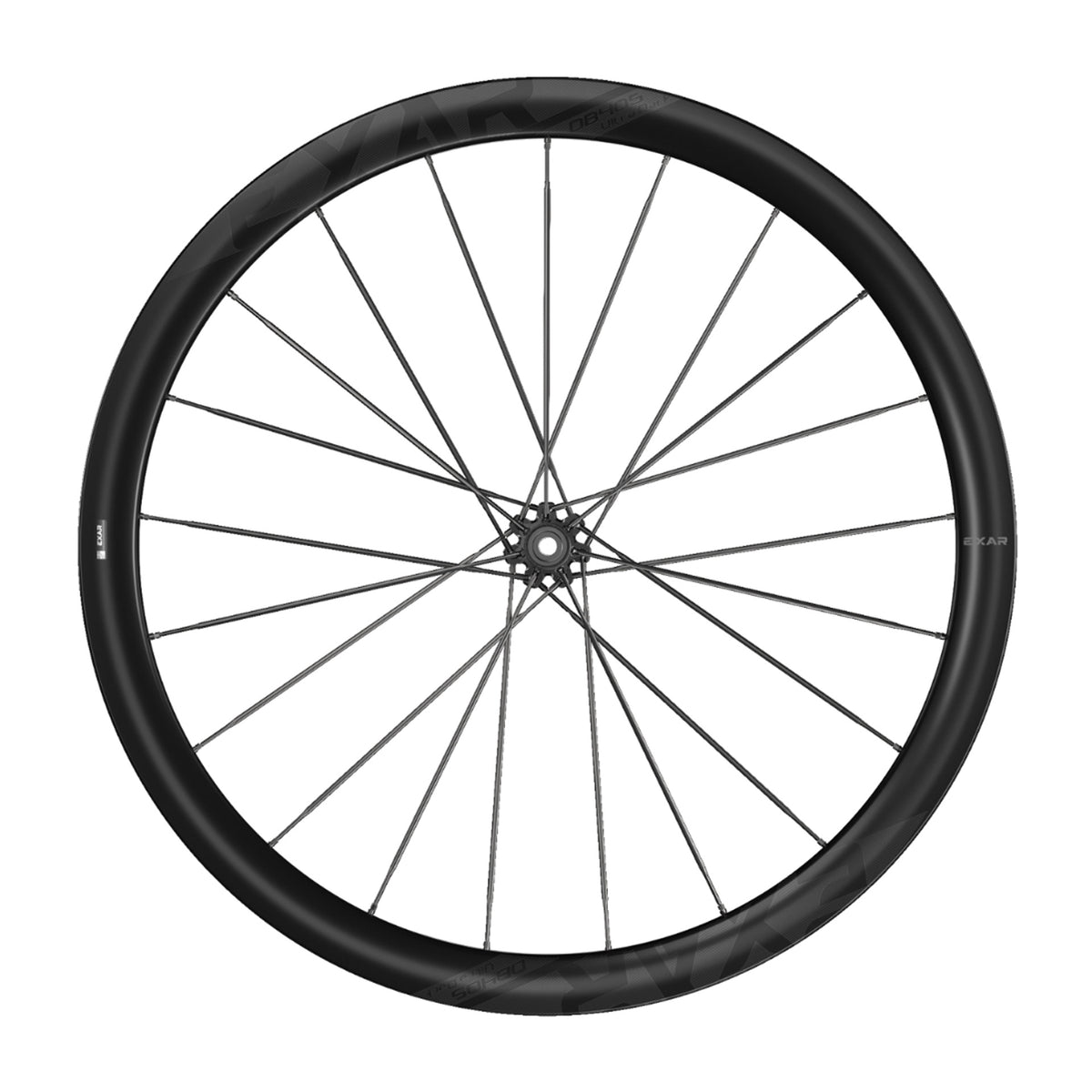

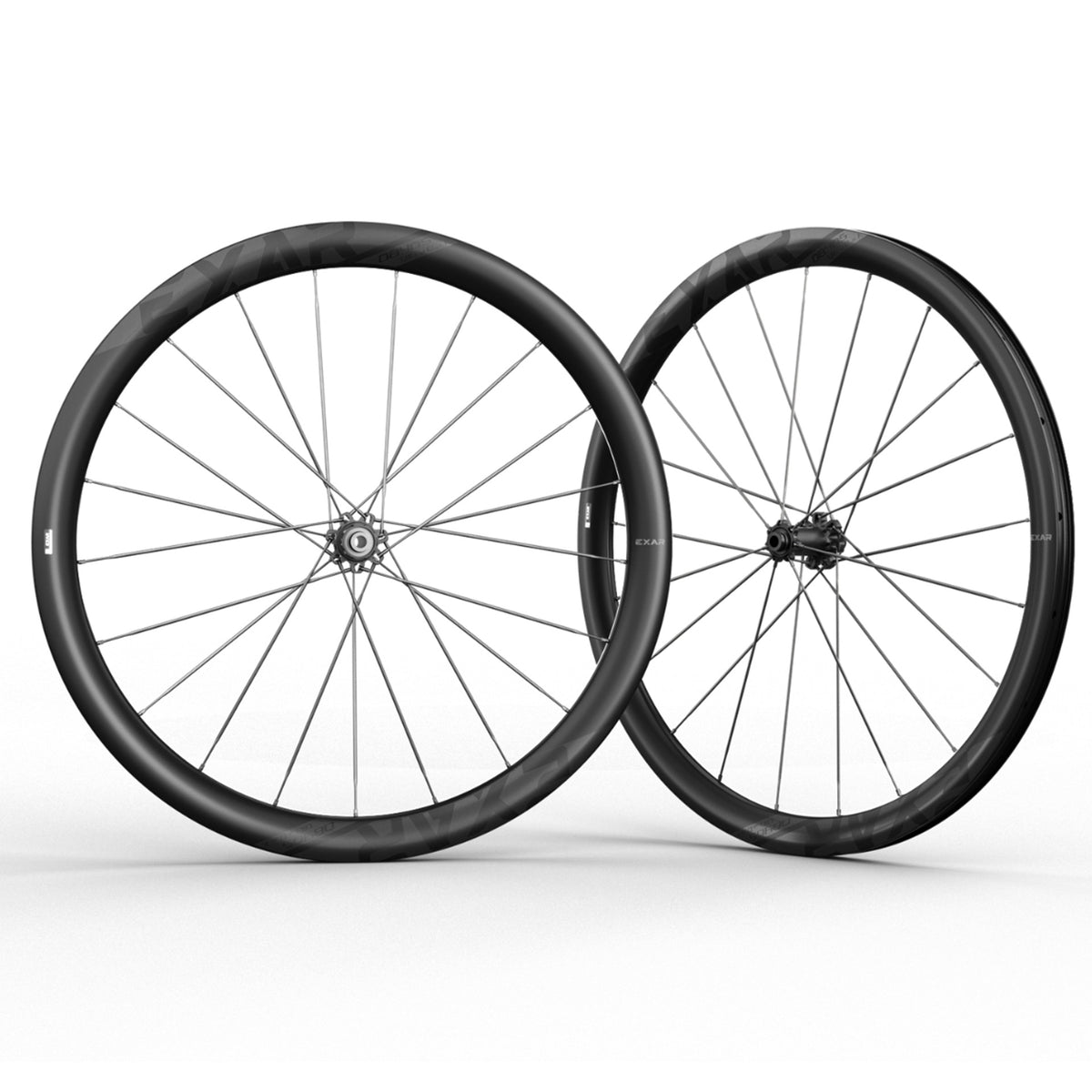

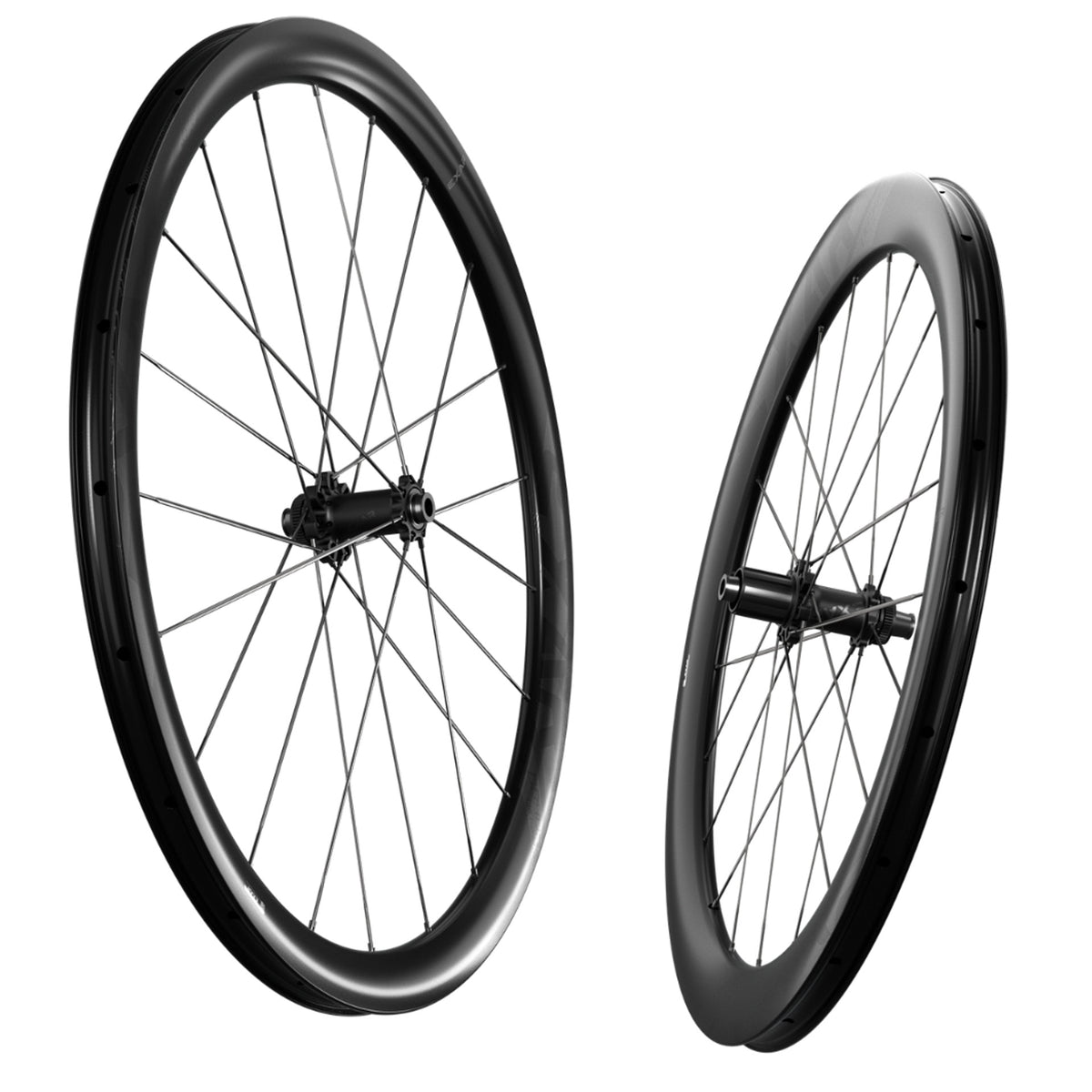

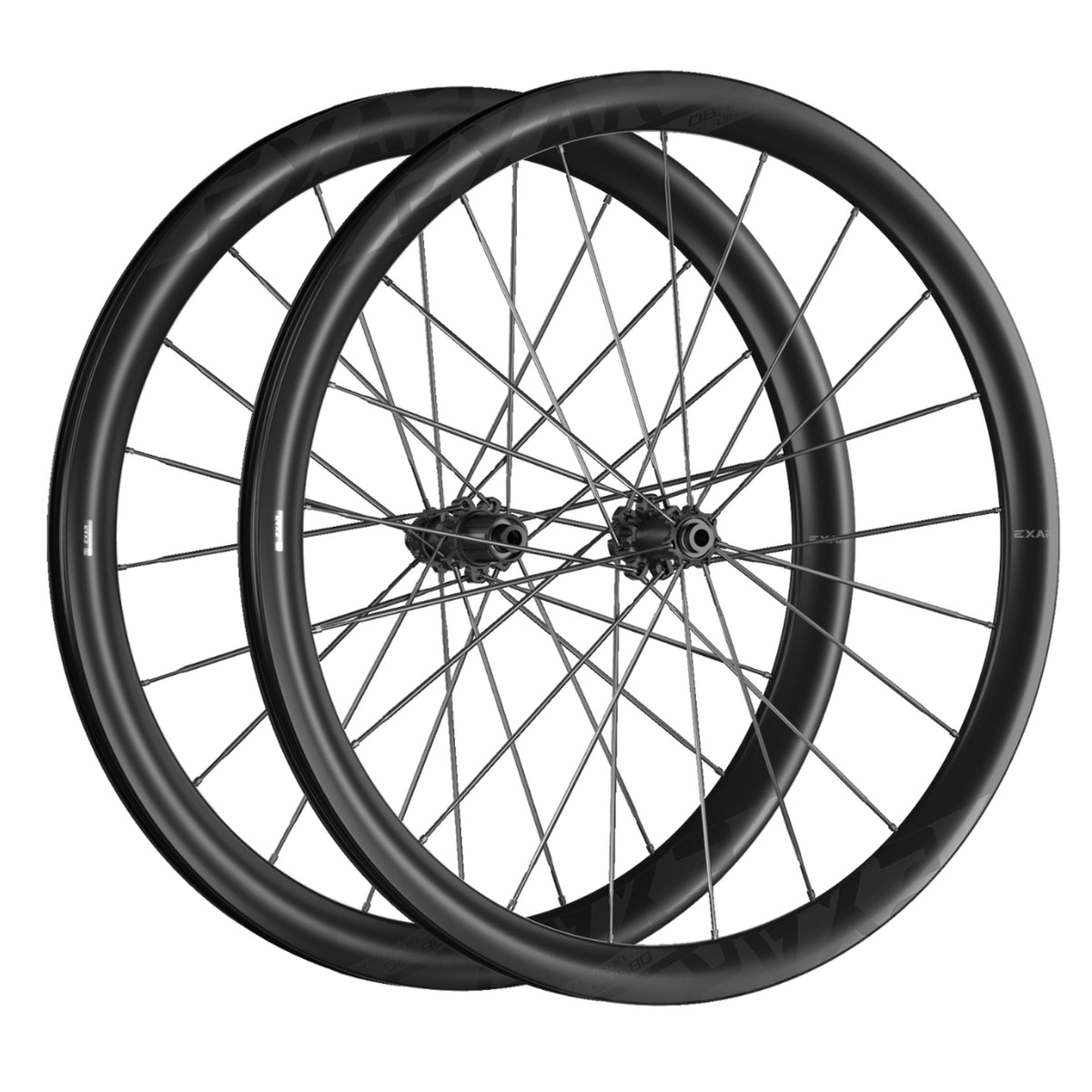

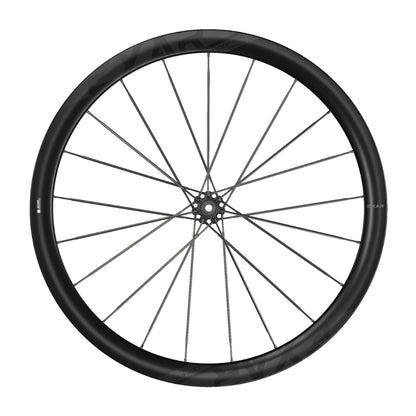

Magene EXAR DB405 Ultra Dark 700C 40/45mm Carbon Wheelset 2026 - HG Freehub
Magene EXAR DB405 Ultra Dark 700C 40/45mm Carbon Wheelset 2026 - HG Freehub
5 in stock
Couldn't load pickup availability
If you are looking for an aftermarket performance road wheelset that's durable aerodynamic and light, then check the Magene UltraDark series out. These wheels utilise HI-MOD 800 carbon fibre rim layup and carbon aero spokes to ensure a stiff and solid ride to maximise power transfer. The 40/45mm rim height combination is a great all-rounder, good on flat terrain and great when the road goes up as they weigh in at just 1300 grams a pair!
30mm Width Rim, More Aerodynamic and Comfortable
A 30mm width rim and 23mm internal width ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well. USed in combination with 28-32c tyres, the contact surface between the tyre and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort.
Full Carbon Fibre Spokes, Contribute Ultra-Stiffness
EXAR UltraDark carbon fibre wheelset features HI-MOD T800 carbon fibre spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fibre spokes have higher tensile strength and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency.
The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.
Flat Engagement Ratchet Design
The 36-tooth flat ratchet offers a faster and tighter engagement with a larger surface than many competitors.
Specifications
- Brake: DIsc Only: Centrelock disc compatibility
- Rim Height: 700C Front Wheel - 40mm, Rear Wheel 45mm
- Wheel set Weight: 1305g ±3%
- Rider/Bike Weight  110 kg's Maximum
- External Rim Width: 30mm
- Internal Rim Width: 23mm
- Bearings - Standard
- Rim Material: HI-MOD T800 Carbon Fiber
- Spokes: HI-MOD T800 Carbon Fiber 9 (Front wheel tension: 110kgf±10%. Rear Wheel Tension: Drive Side 130kgf±10%, Non-drive Side 110kgf±10%)
- Ratchet: 36T
- Axle: 100/142mm thru-axle
- Freehub: Shimano  HG 11-speed installed (Campagnolo N3W and Sram XDR Freehubs are available separately)
- Compatible with Clincher & Tubeless tyres (hooked rim)
- Compatible tyre width: Compatible with 25c Tyre and Above, Suggested Tyre Width is 28c - 32c
Description
If you are looking for an aftermarket performance road wheelset that's durable aerodynamic and light, then check the Magene UltraDark series out. These wheels utilise HI-MOD 800 carbon fibre rim layup and carbon aero spokes to ensure a stiff and solid ride to maximise power transfer. The 40/45mm rim height combination is a great all-rounder, good on flat terrain and great when the road goes up as they weigh in at just 1300 grams a pair!
30mm Width Rim, More Aerodynamic and Comfortable
A 30mm width rim and 23mm internal width ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well. USed in combination with 28-32c tyres, the contact surface between the tyre and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort.
Full Carbon Fibre Spokes, Contribute Ultra-Stiffness
EXAR UltraDark carbon fibre wheelset features HI-MOD T800 carbon fibre spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fibre spokes have higher tensile strength and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency.
The wheelset applies a 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of the rear-wheel drive side is 130kgf±10%, and the non-drive side is 110kgf±10%.
Flat Engagement Ratchet Design
The 36-tooth flat ratchet offers a faster and tighter engagement with a larger surface than many competitors.
Specifications
- Brake: DIsc Only: Centrelock disc compatibility
- Rim Height: 700C Front Wheel - 40mm, Rear Wheel 45mm
- Wheel set Weight: 1305g ±3%
- Rider/Bike Weight  110 kg's Maximum
- External Rim Width: 30mm
- Internal Rim Width: 23mm
- Bearings - Standard
- Rim Material: HI-MOD T800 Carbon Fiber
- Spokes: HI-MOD T800 Carbon Fiber 9 (Front wheel tension: 110kgf±10%. Rear Wheel Tension: Drive Side 130kgf±10%, Non-drive Side 110kgf±10%)
- Ratchet: 36T
- Axle: 100/142mm thru-axle
- Freehub: Shimano  HG 11-speed installed (Campagnolo N3W and Sram XDR Freehubs are available separately)
- Compatible with Clincher & Tubeless tyres (hooked rim)
- Compatible tyre width: Compatible with 25c Tyre and Above, Suggested Tyre Width is 28c - 32c
