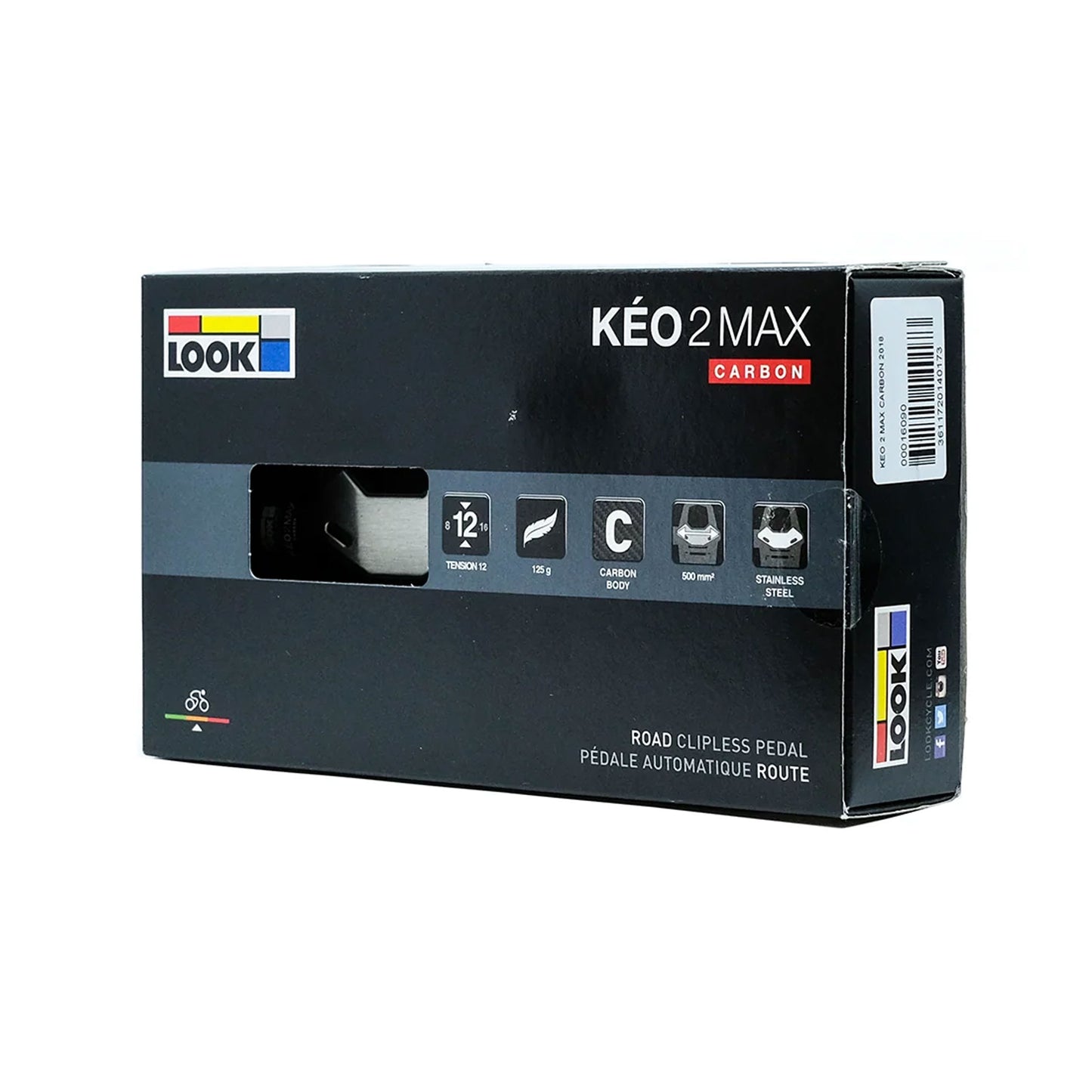

Look Keo 2 Max Carbon Pro Team LTD Road Pedals

The KEO 2 MAX CARBON pedal features a huge 500 mm² contact area providing optimal power transfer from your legs to your bike. The carbon body ensures lightness and efficiency while the Chromoly+ axle offers robustness in all conditions. Install your pedal, adjust the tension, and you are ready to ride.

Why you'll love it?

• The "simple" pedal with the carbon body
• A pedal that weighs barely 125 grams
• A wide, stainless steel contact area for excellent stability thru the pedal stroke
• A carbon body combined with our renowned spring technology
• The Look design team has completely remodeled the shape of the KEO 2 MAX carbon, giving it a new, slimmed down line yet a wider contact surface, increasing its style and efficiency.

Improved Spindle Profile
The spindle profile of the new KEO 2 MAX has also been optimized. Built around an oversized «Chromoly Plus» steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally.

A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play.

The sole purpose of the sum of these improvements has been to guarantee you irreproachable reliability.

Specifications

• Spindle: Chromoly +
• Body material: Carbon
  Platform material    Stainless steel
• Platform area: 500 mm²
• Platform width: 60 mm
• Total stack height: (pedal + cleat) 17,3 mm (11 + 6.3 mm)
• Q Factor: 53 mm
• Retention: 8 to 12
• Supplied with Cleats: KEO grip
