BIKE SPECS
FRAME
FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
FORK
All New Rockshox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
REAR SHOCK

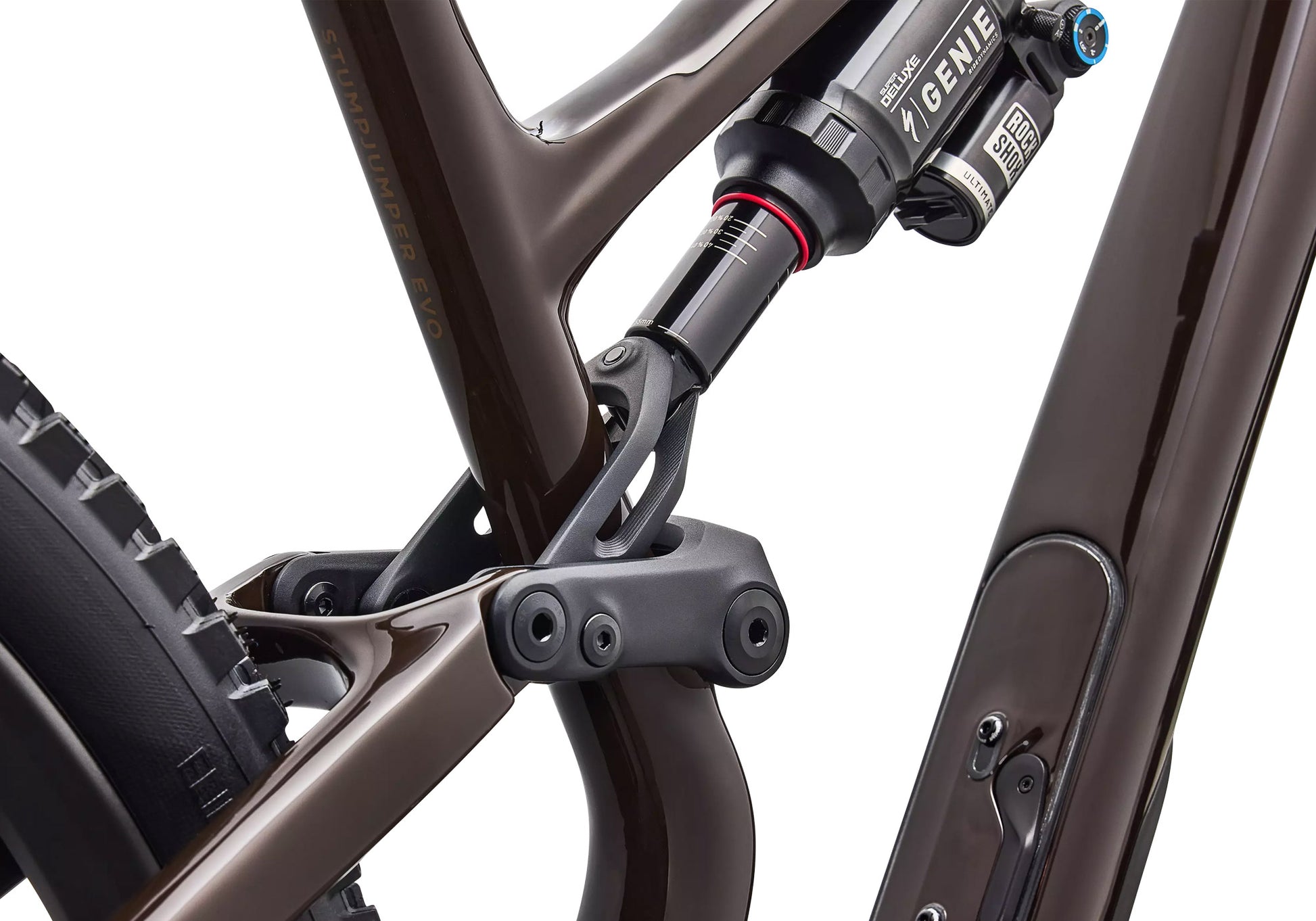

All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
WHEELS
Front: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28h, Sapim D-Light Spokes. Rear: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 12x148mm, 28h, Sapim D-Light Spokes
TYRES
Front: Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4. Rear: Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
CRANKSET
SRAM X0 Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
BOTTOM BRACKET
SRAM DUB Threaded Wide
SHIFT LEVERS
SRAM AXS Pod Controller w/discrete clamp 12 speed
REAR DERAILLEUR
SRAM X0 Eagle Transmission Electronic wireless 12 speed
CASSETTE
SRAM XS 1295, 12 speed, 10-52T
CHAIN
SRAM X0 Eagle Transmission 12-Speed Flattop Chain
BRAKES
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm/180mm Centerline Rotors
HANDLEBARS
S1-S2: Bike Yoke, Barmate Al7050 800x50x35mm, 9 degree backsweep, 6 degree upsweep; S3-S6: Bike Yoke, Barmate Al7050 800x65x35mm, 9 degree backsweep, 6 degree upsweep
GRIPS
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
STEM
Alloy Trail Stem, 35mm bar bore
SADDLE
Bridge Expert with MIMIC, Hollow Ti rails
SEATPOST
Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm
|
* Specifications are subject to change without notice
|
