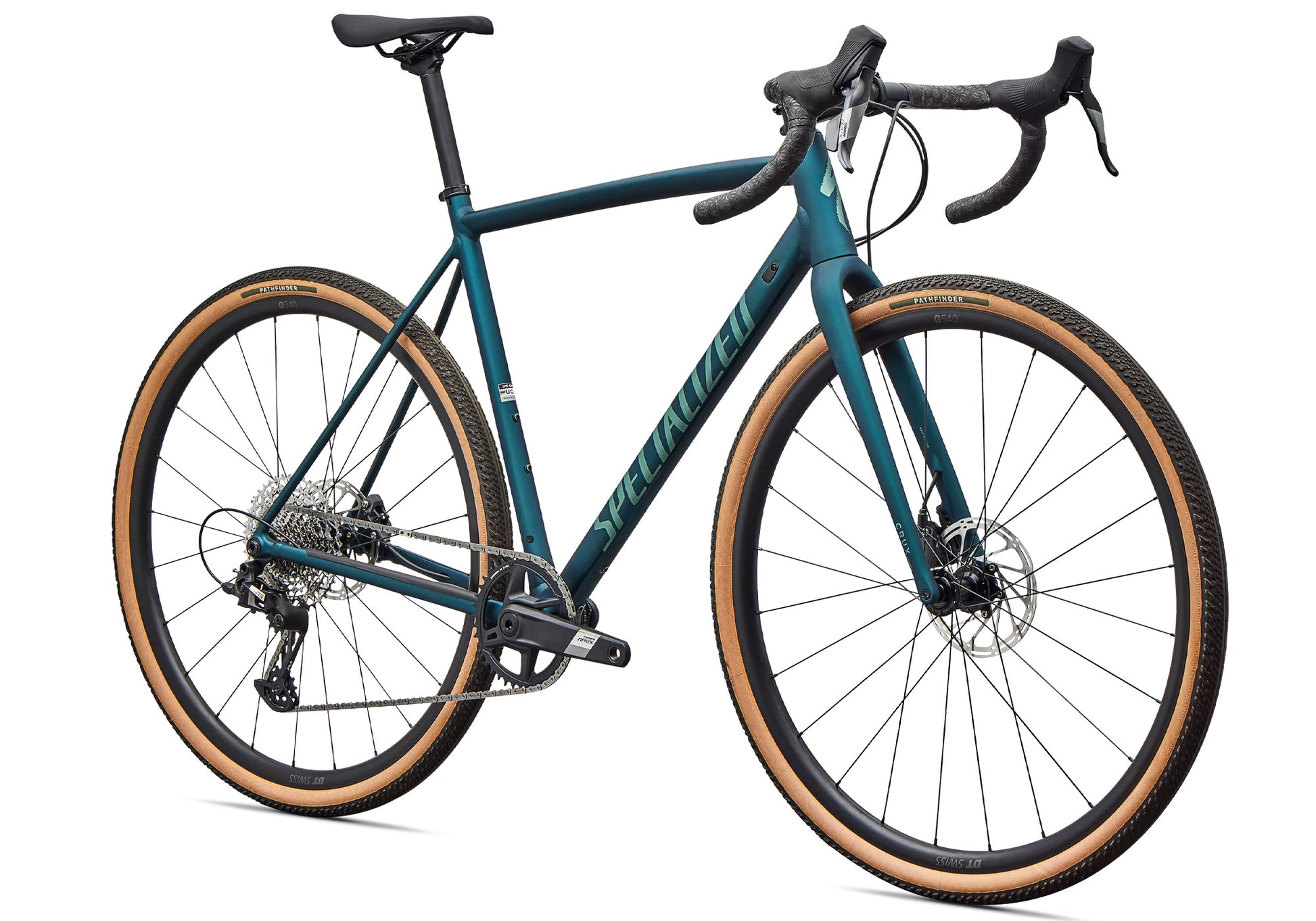

2026 Specialized Crux DSW Comp Unisex Gravel/Adventure Bike, Emerald Metallic/Fjord Metallic
2026 Specialized Crux DSW Comp Unisex Gravel/Adventure Bike, Emerald Metallic/Fjord Metallic
Couldn't load pickup availability
The Crux DSW is more than the lightest alloy gravel bike ever made, nimble, balanced, and responsive for fast, fun, high-performance riding.
Lightest Weight
At just 1399 grams*, the Crux DSW is the lightest alloy gravel frame in the world. Combine that with the Fact12r Crux carbon fork and a build curated for performance, and a complete Crux DSW tips the scales at 9.37kg—no alloy gravel bike can compete.
Most Capable
More clearance means more capability - that’s why the Crux DSW has the same tire clearance as its carbon sibling - 47mm and up to 2.1” on a 650b wheel. Combine this with the tough and light alloy frame, and Crux DSW can take you anywhere you imagine at full gas.
Ultra-Responsive
Responsive at the pedals. Supple in the saddle. Specialized used D’Aluisio Smartweld to fine-tune the properties of alloy to deliver a ride previously impossible without carbon and combine it with the same performance gravel geometry and race-influenced fit as the carbon Crux. A longer reach delivers better weight distribution for quick, confident handling, while a lower stack creates a performance first position. At 72mm of bottom-bracket drop, Specialized hit the sweet spot between nimble and stable.
- Lightest: 1399g Crux DSW Frame (raw, unpainted)
- Capable: 47c/650b x 2.1” tire clearance
- SRAM Apex XPLR 12 speed groupset
- Tough and speed DT Swiss G540 wheelset
SIZING:
49: Suit 155-163cm rider height
52: Suit 163-170cm rider height
54: Suit 170-175cm rider height
56: Suit 175-183cm rider height
58: Suit 180-188cm rider height
61: Suit 188-196cm rider height
BIKE SPECSFRAME
Specialized E5 Premium Aluminum Disc frame with Smartweld Technology, hydroformed aluminum tubing, tapered head tube, threaded BB, UDH dropout
FORK
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
WHEELS
Front: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples. Rear: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
TYRES
Pathfinder 700x40, Tubeless Ready
CRANKSET
SRAM Apex DUB Wide, 40T Chainring
BOTTOM BRACKET
SRAM DUB BSA 68 Wide
SHIFT LEVERS
SRAM Apex XPLR 12 speed
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Apex XPLR, mechanical, 12-speed
CASSETTE
SRAM Apex XPLR, 12 speed, 11-44t
CHAIN
SRAM Apex D1
BRAKES
SRAM Apex, Hydraulic Disc
HANDLEBARS
Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
TAPE
Supacaz Super Sticky Kush
STEM
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
SADDLE
Body Geometry Power Sport, steel rails
SEATPOST
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
PEDALS
N/A
|
* Specifications are subject to change without notice
