Description

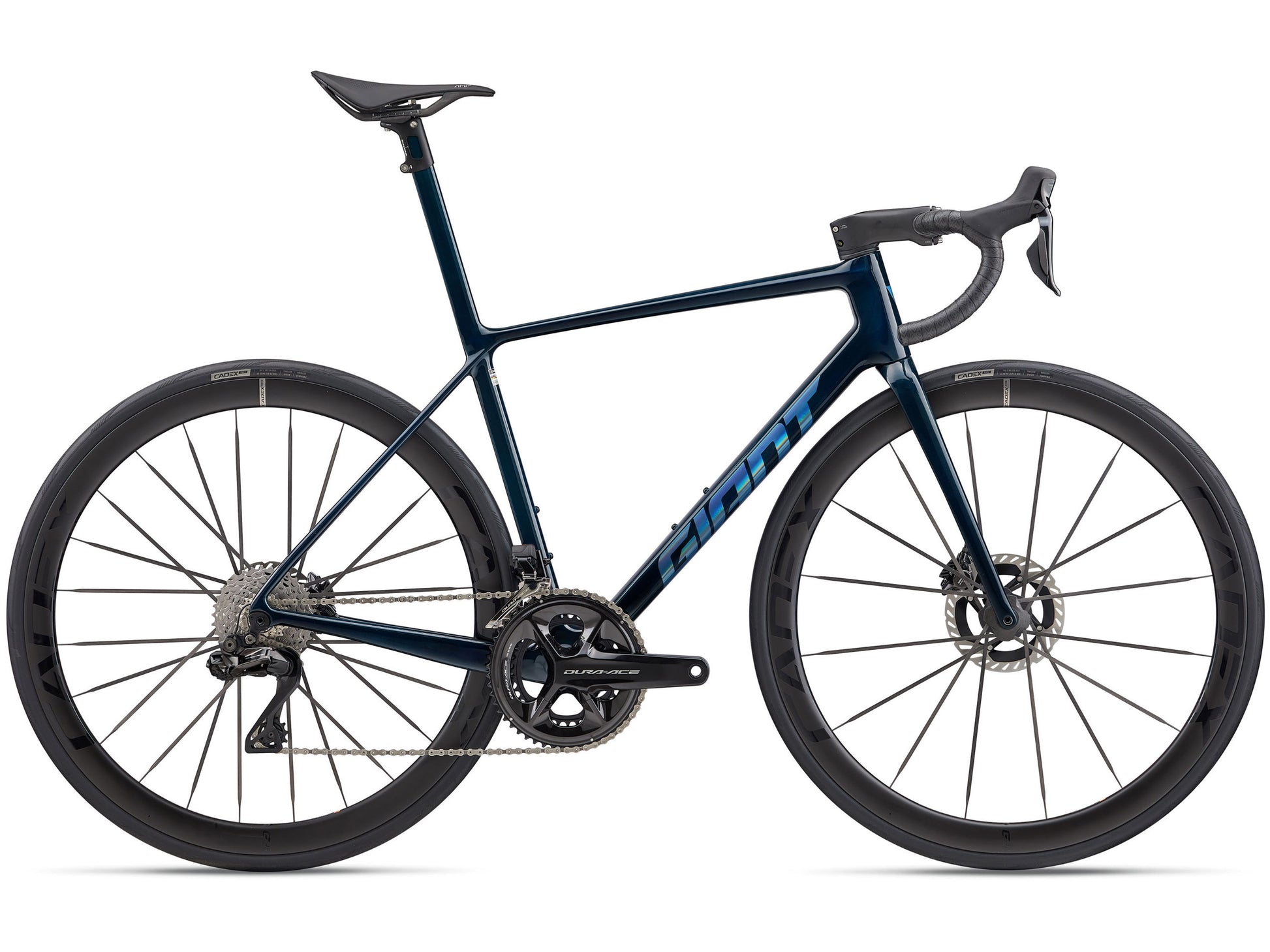

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.
SYSTEM OPTIMISATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
- Advanced SL-Grade Composite frame
- Advanced SL Grade Composite fork, full-composite OverDrive aero steerer
- Shimano Dura-Ace Di2 24 speed groupset with ceramic bearin g bottom bracket
- Cadex Max 40 aero carbon WheelSystem with carbon aero spokes
- Giant Contact SLR carbon super light bars and integrated stem
SIZING: (Rider height)
X-Small: 157-169cm
Small: 165-175cm
Medium: 171-181cm
Medium/Large: 177-187cm
Large: 183-193cm
X-Large: 189-199cm
BIKE SPECSFRAME
Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
FORK
Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
WHEELS
Rims: CADEX Max 40 WheelSystem, [F]40mm, [R]40mm. Hubs: [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle. Spokes: CADEX Aero Carbon Spokes
TYRES
CADEX Race GC, tubeless, 700x30c (30mm), folding
CRANKSET
Shimano Dura-Ace, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
CHAINRINGS
36/52T
BOTTOM BRACKET
CEMA ceramic, press fit
SHIFT LEVERS
Shimano Dura-Ace Di2 24 speed
FRONT DERAILLEUR
Shimano Dura-Ace Di2 FD-R9250
REAR DERAILLEUR
Shimano Dura-Ace Di2 FD-R9250
CASSETTE
Shimano Dura-Ace, 12-speed, 11x34
CHAIN
Shimano CN-M9100
BRAKES
Shimano Dura-Ace Di2 hydraulic, Shimano RT-CL900 rotors [F]160mm, [R]140mm
HANDLEBARS
Giant Contact SLR carbon
TAPE
Stratus Lite 2.0
STEM
Giant Contact SLR AeroLight carbon
SADDLE
CADEX AMP
SEATPOST
Giant Integrated Seatpost, -5/+15mm offset
SEAT BINDER
Integrated w/ frame
PEDALS
N/A
EXTRAS
Computer mount, tubeless prepared, 33mm max tyre size
|
* Specifications are subject to change without notice
