2026 Giant Revolt Advanced 3 Men's Gravel/Adventure Bike, Aquarium
2026 Giant Revolt Advanced 3 Men's Gravel/Adventure Bike, Aquarium
Couldn't load pickup availability
NOTE: Giant Bicycles are Pick-Up in-store only. Please select Pick-Up" under delivery options in the cart.
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models

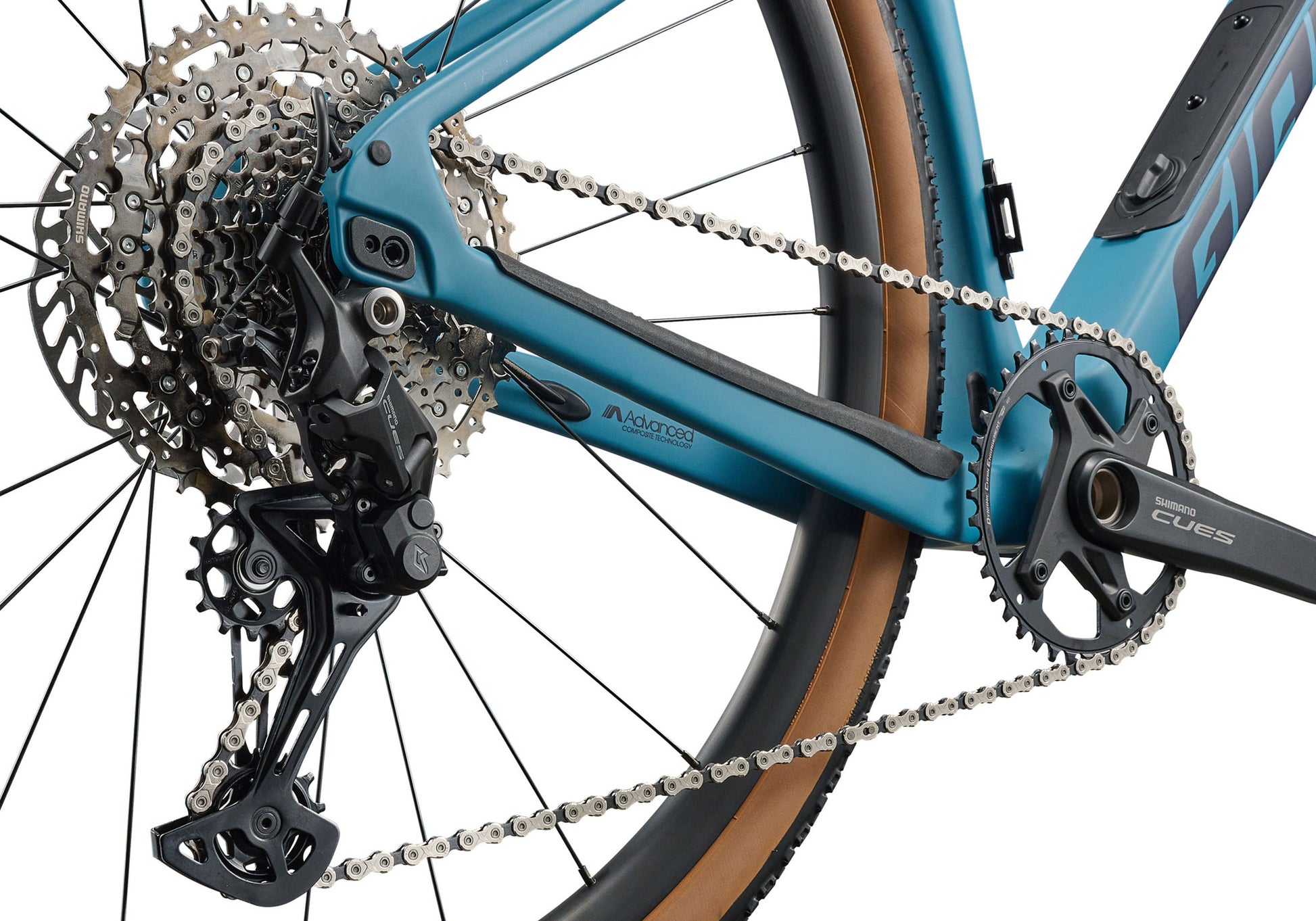

- Shimano CUES gravel specific 1x11 speed wide range groupset
- Tough Giant P-X2 high performance alloy wheelset

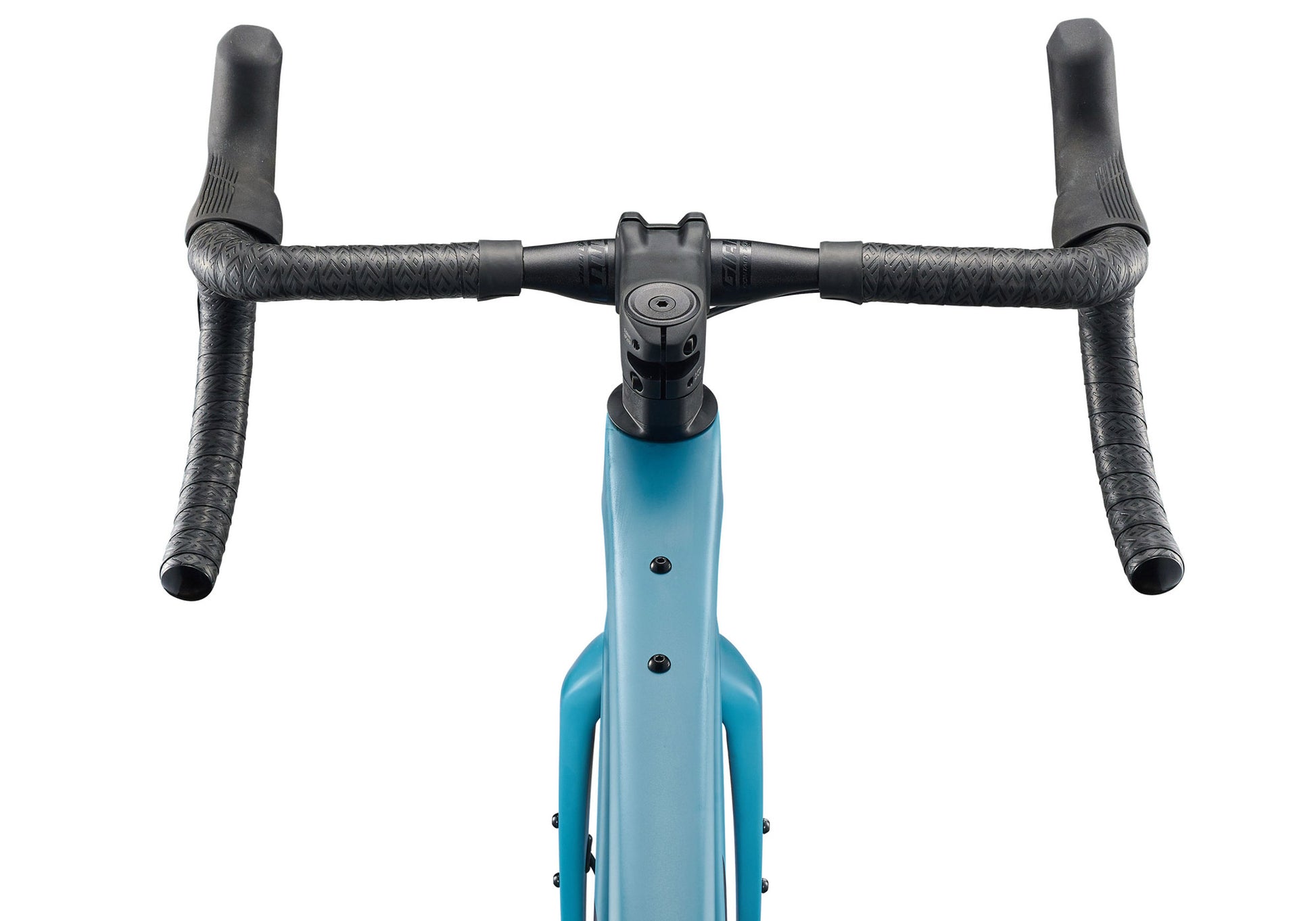

- Giant D-fuse vibration damping handlebars and carbon seatpost

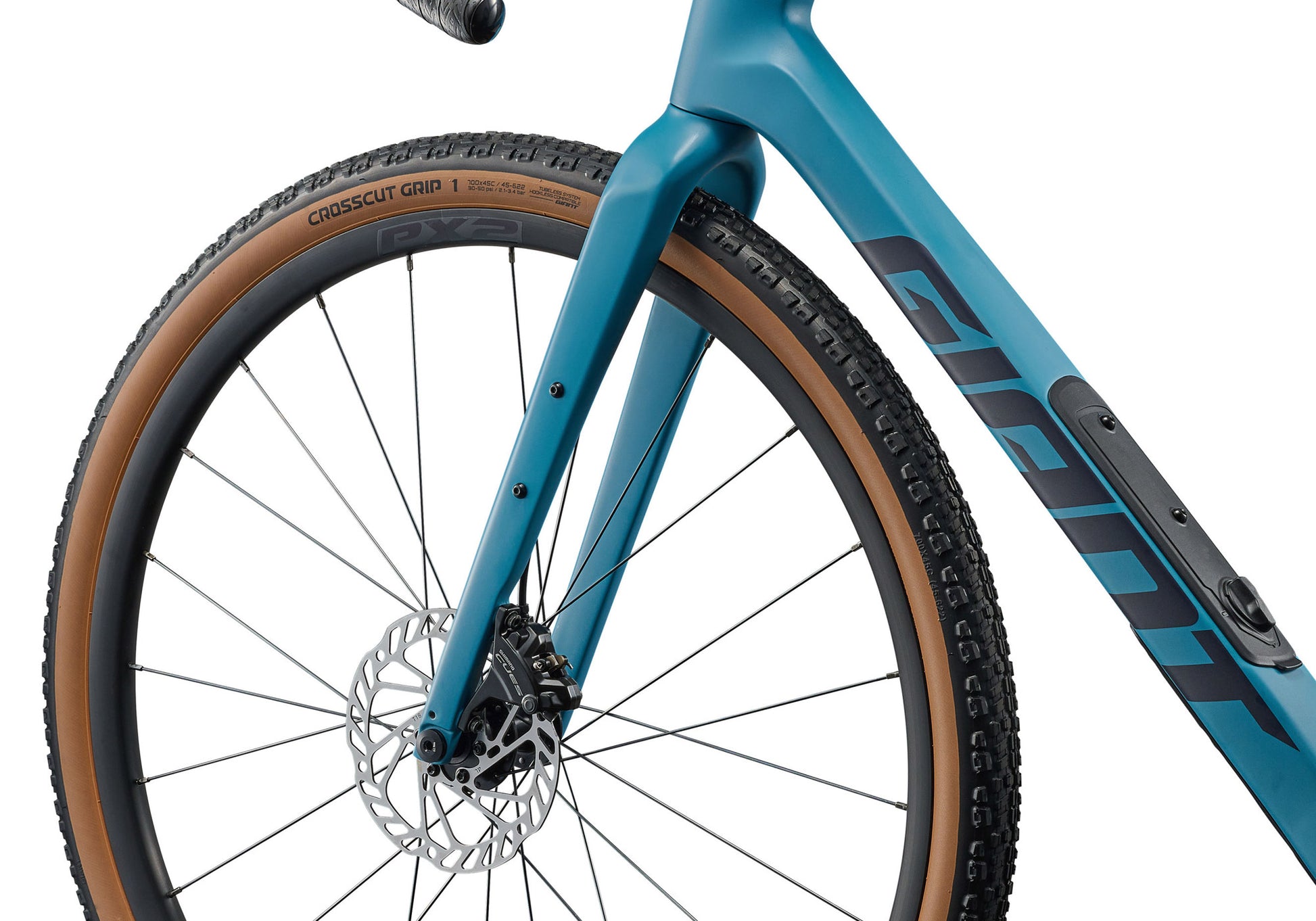

- Giant Crosscut Grip 700x45C tubeless tyres

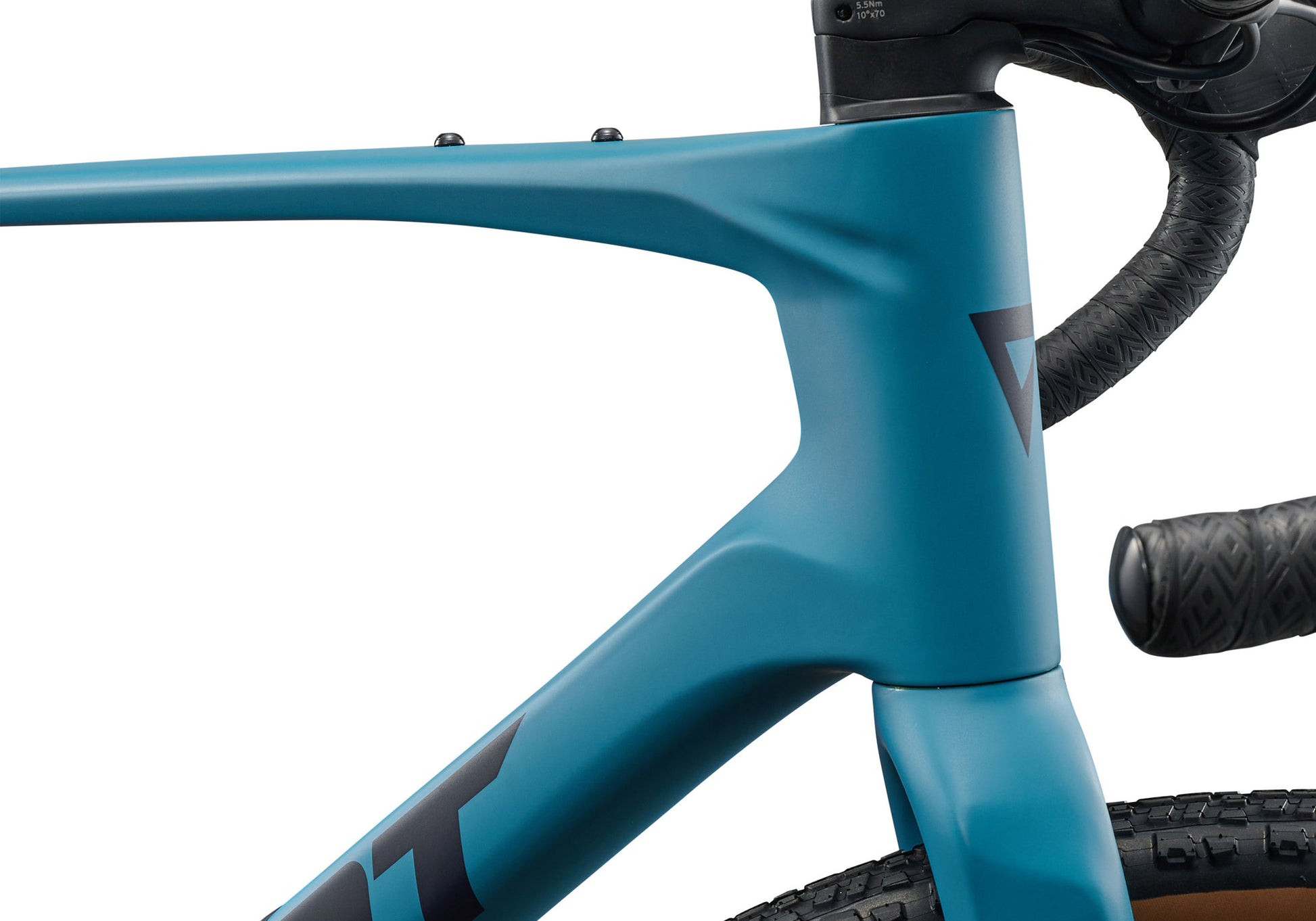

- ALLUX grade composite frame with adjustable geometry and in-frame storage and advanced grade composite forks
SIZING: (Rider height)
X-Small: 155-166cm
Small: 159-171cm
Medium: 169-181cm
Medium/Large: 174-186cm
Large: 179-191cm
X-Large: 189-200cm
BIKE SPECSFrame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebars
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Tape
Stratus Lite 3.0
SeatPost
Giant D-Fuse, composite, 14mm offset
Saddle
Giant Grit
Brakes
Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Shift Levers
Shimano CUES U6030, 1x11 speed
Rear Derailleur
Shimano Cues U6000, Shadow
Cassette
Shimano CS-LG400, 11x50T
Crankset
Shimano Cues U6030, 42T chainring XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
Shimano, threaded
Chain
KMC X11
Front Wheel
Rims: Giant P-X2 Disc wheelset, alloy. Hubs: Giant alloy, 12mm thru-axle. Spokes: Sapim Stainless
Tires
Giant Crosscut Grip, 700x45c, tubeless
Extras
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
|
* Specifications are subject to change without notice
