Description

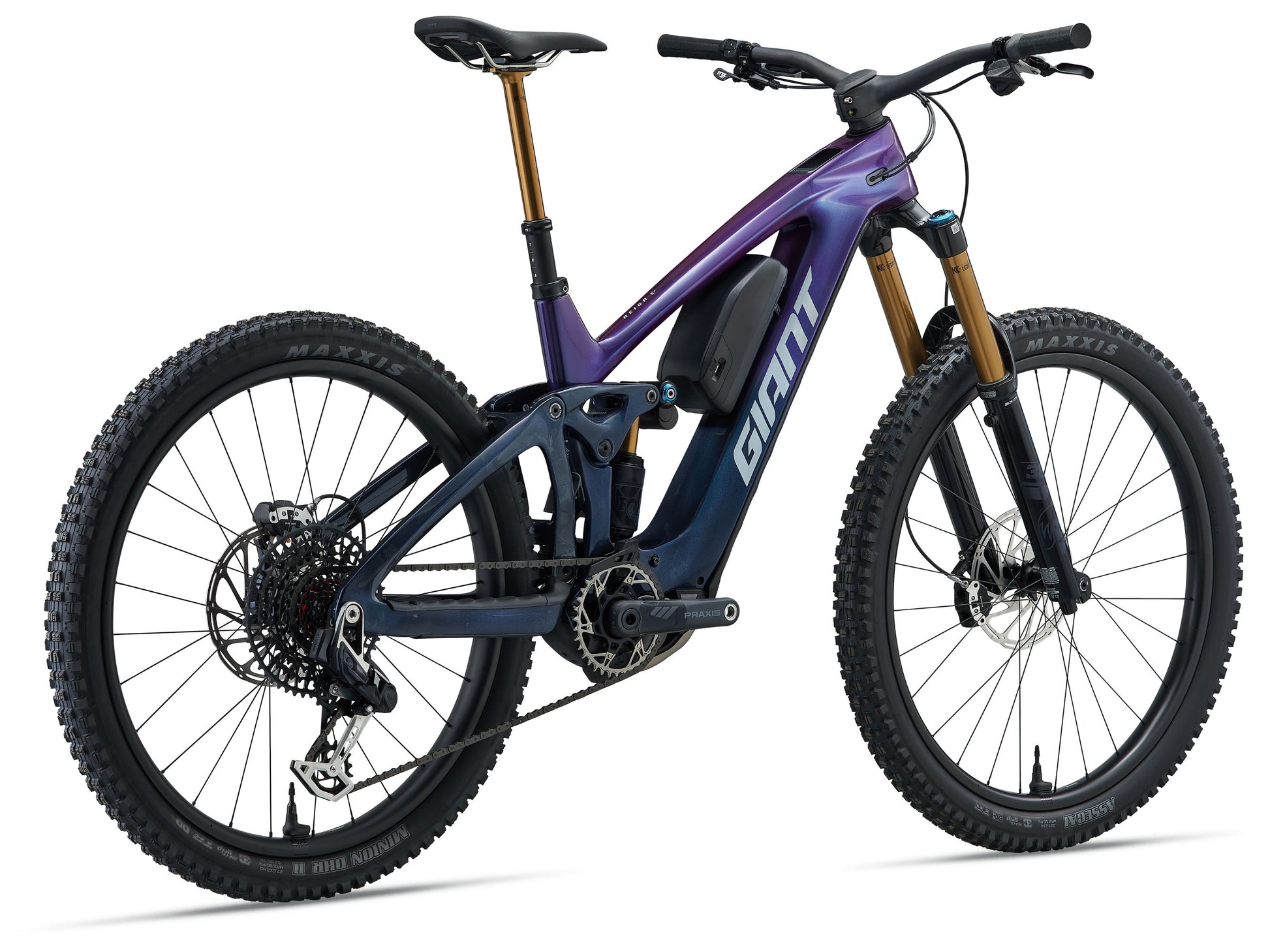

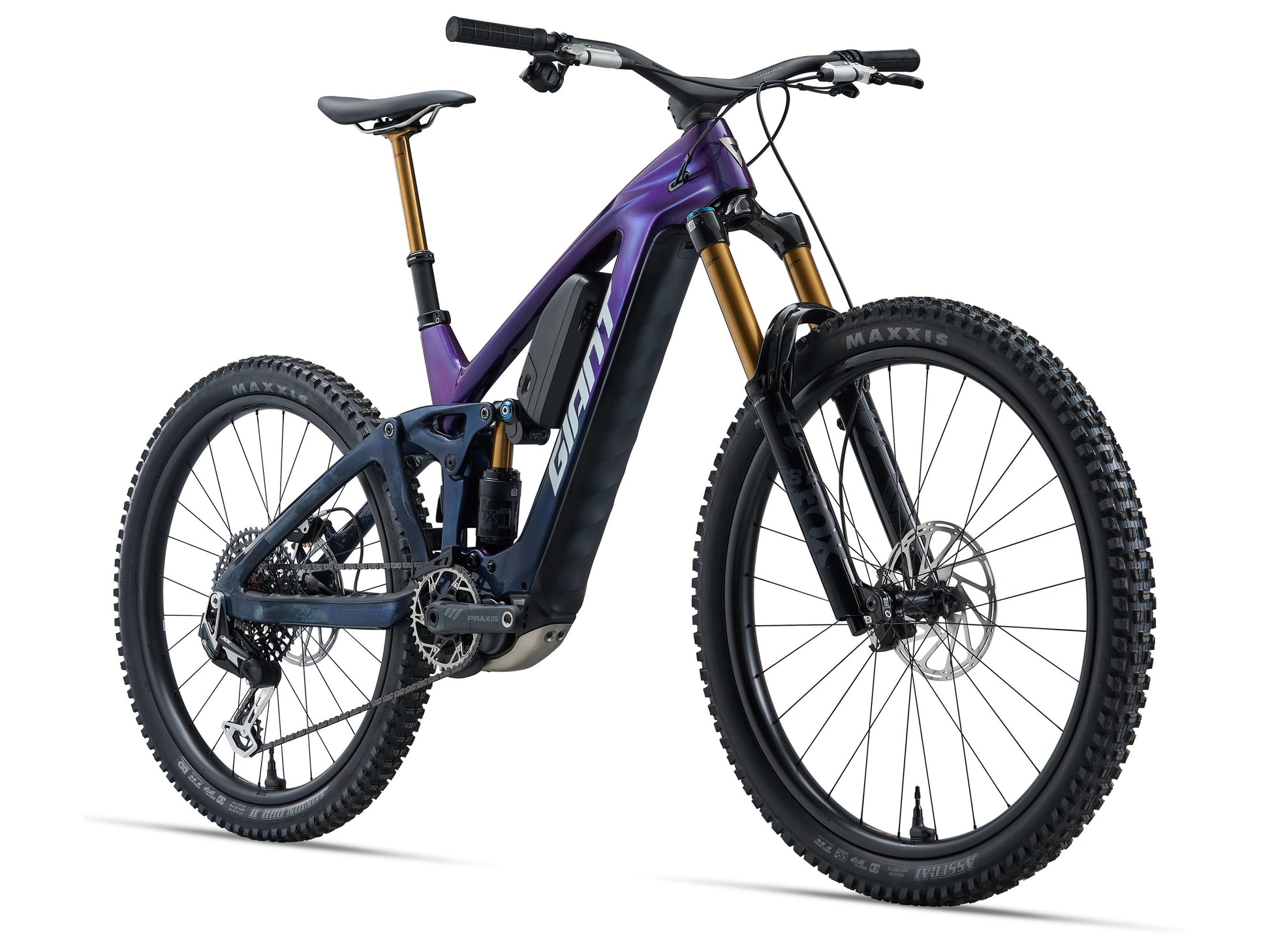

Everything about the new Reign Advanced E+ is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro 3 motor and its lightweight, stiff and ultra-adjustable composite frame. Giant added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain.

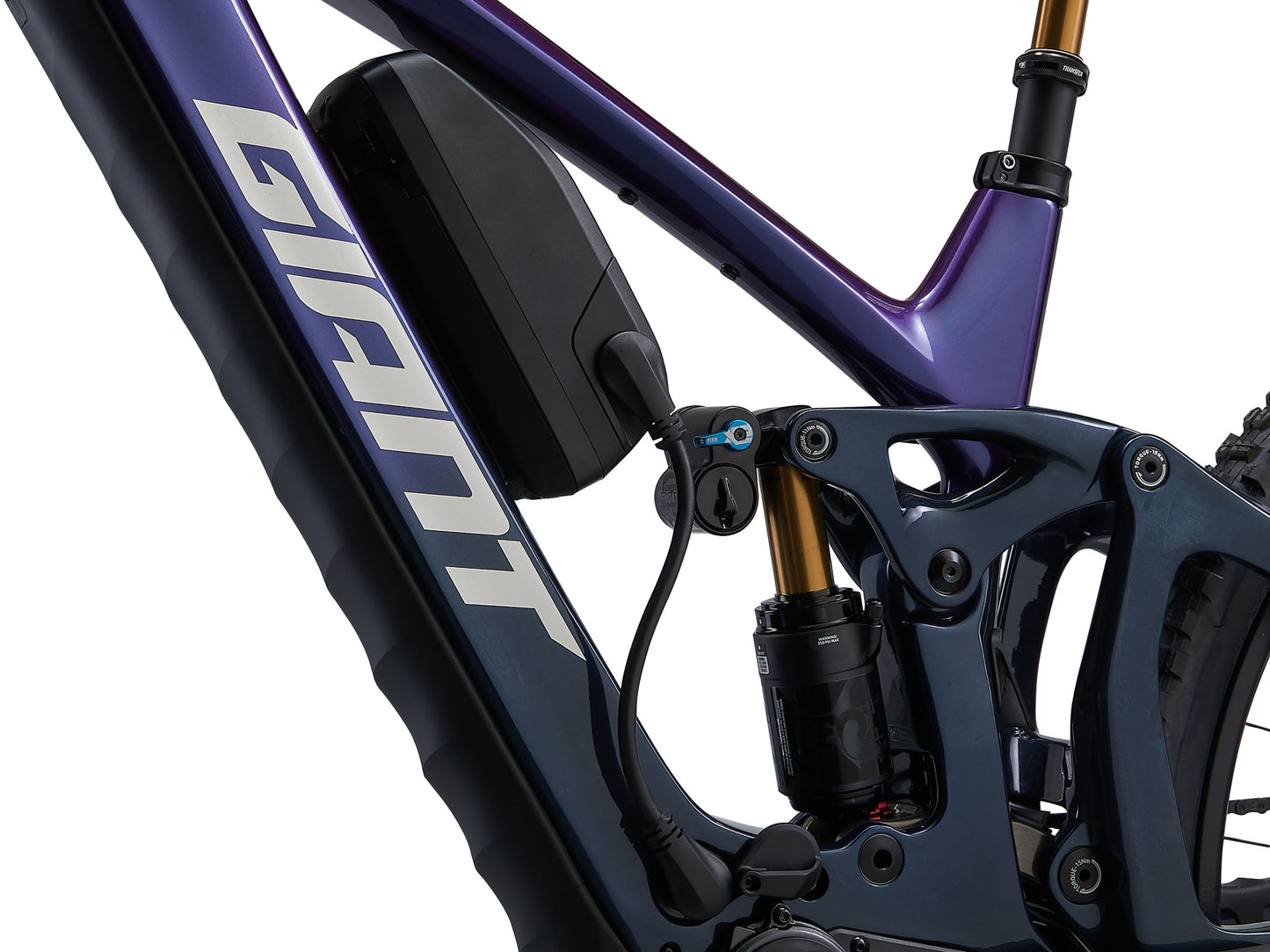

The Reign Advanced E+ 0 also includes the Giant Energypack Plus 280Wh range extender.
DOMINANT ON DESCENTS
Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedalling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens.
LIGHTWEIGHT YET POWERFUL
Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro 3 motor lets you sustain a high torque level, even at higher pedalling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E+ Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a nearly endless lifespan of up to 2300 charge cycles.
PREMIUM PROTECTION

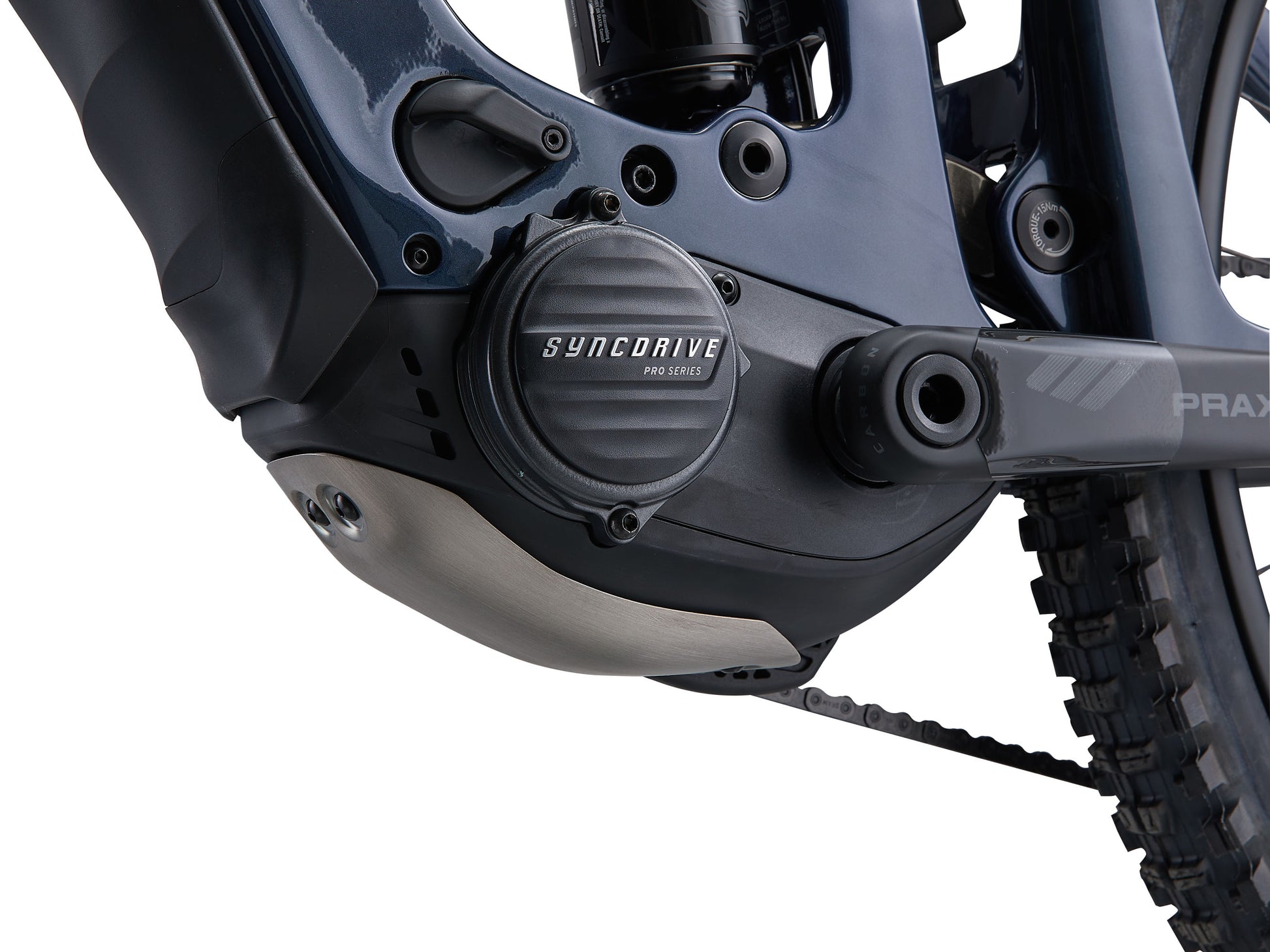

Designed to shred hard and take a beating, the Reign Advanced E+ features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminium. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Extreme: 45km | Good: 90km | Ideal: 160km (Without range extender)
Unisex Size Chart
| Size | Rider Height |
| Small | 163-174cm |
| Medium | 171-182cm |
| Large | 179-190cm |
| X-Large | 187-198cm |
BIKE SPECSFrame
Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork
Fox 38 Factory E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm

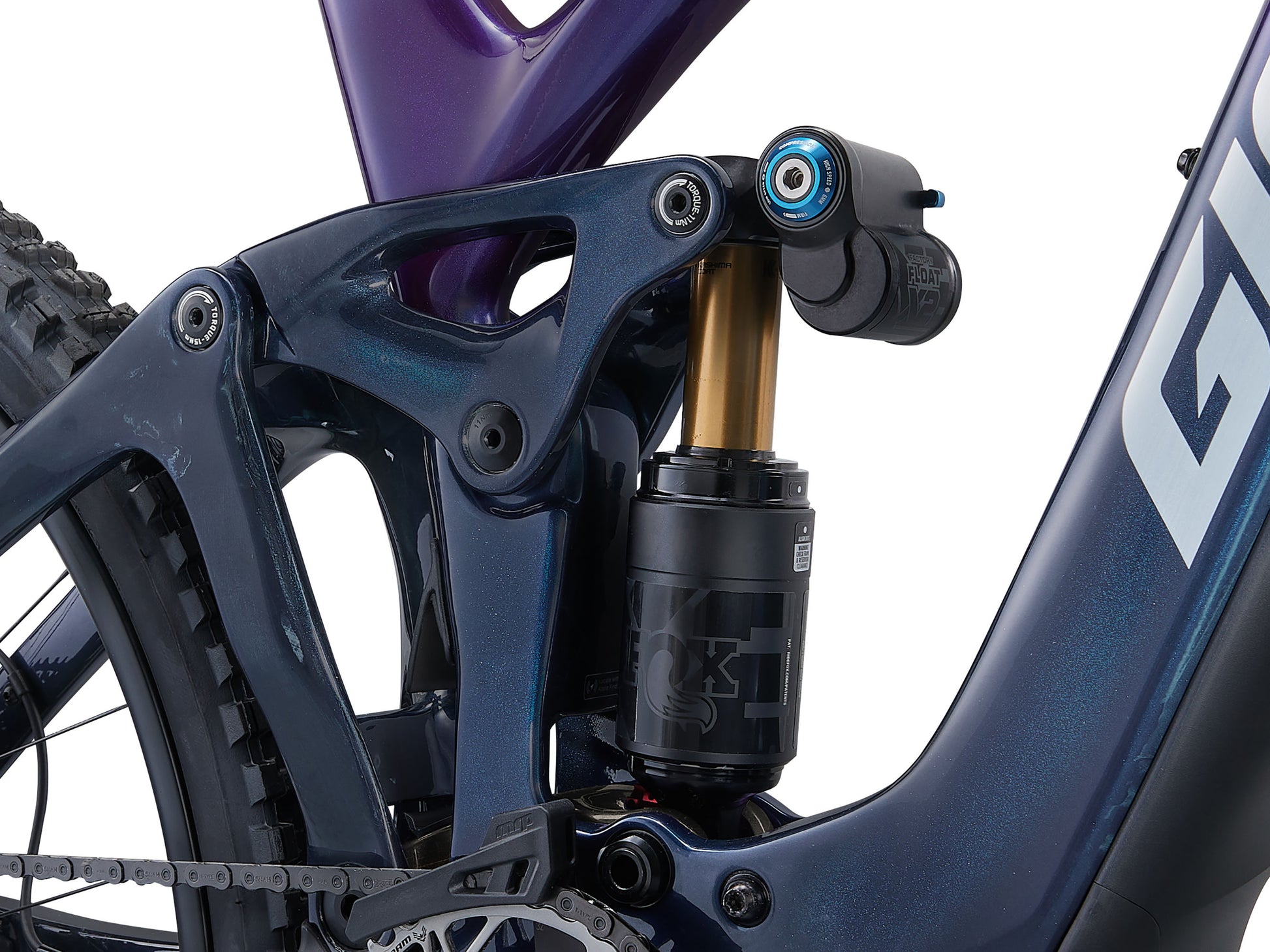

Rear Shock
Fox Float X2 Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned
Motor
Giant SyncDrive Pro 3, 48v, 90Nm, 800W max power, powered by Yamaha
Controller

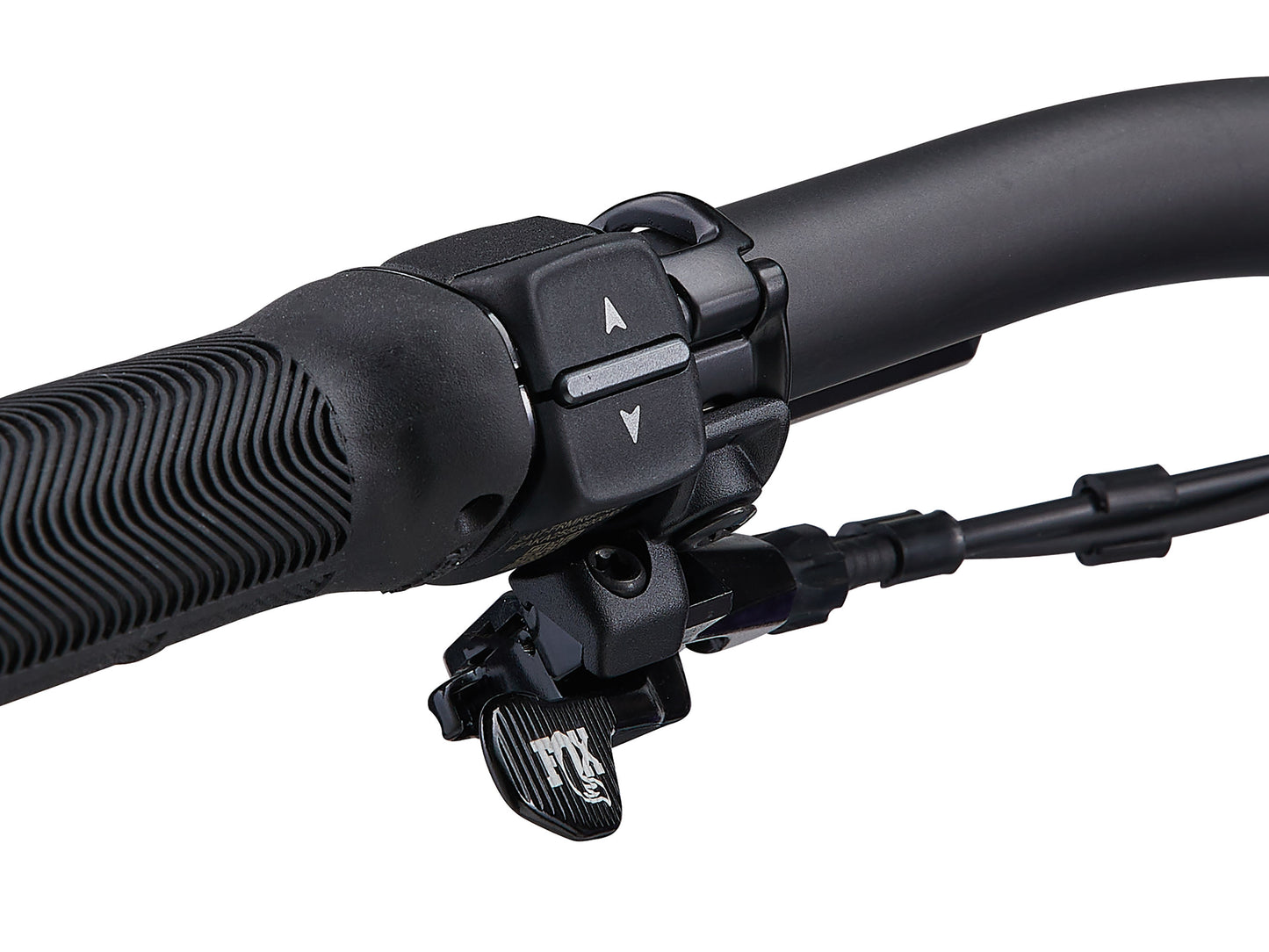

RideControl Ergo 4, grip integrated

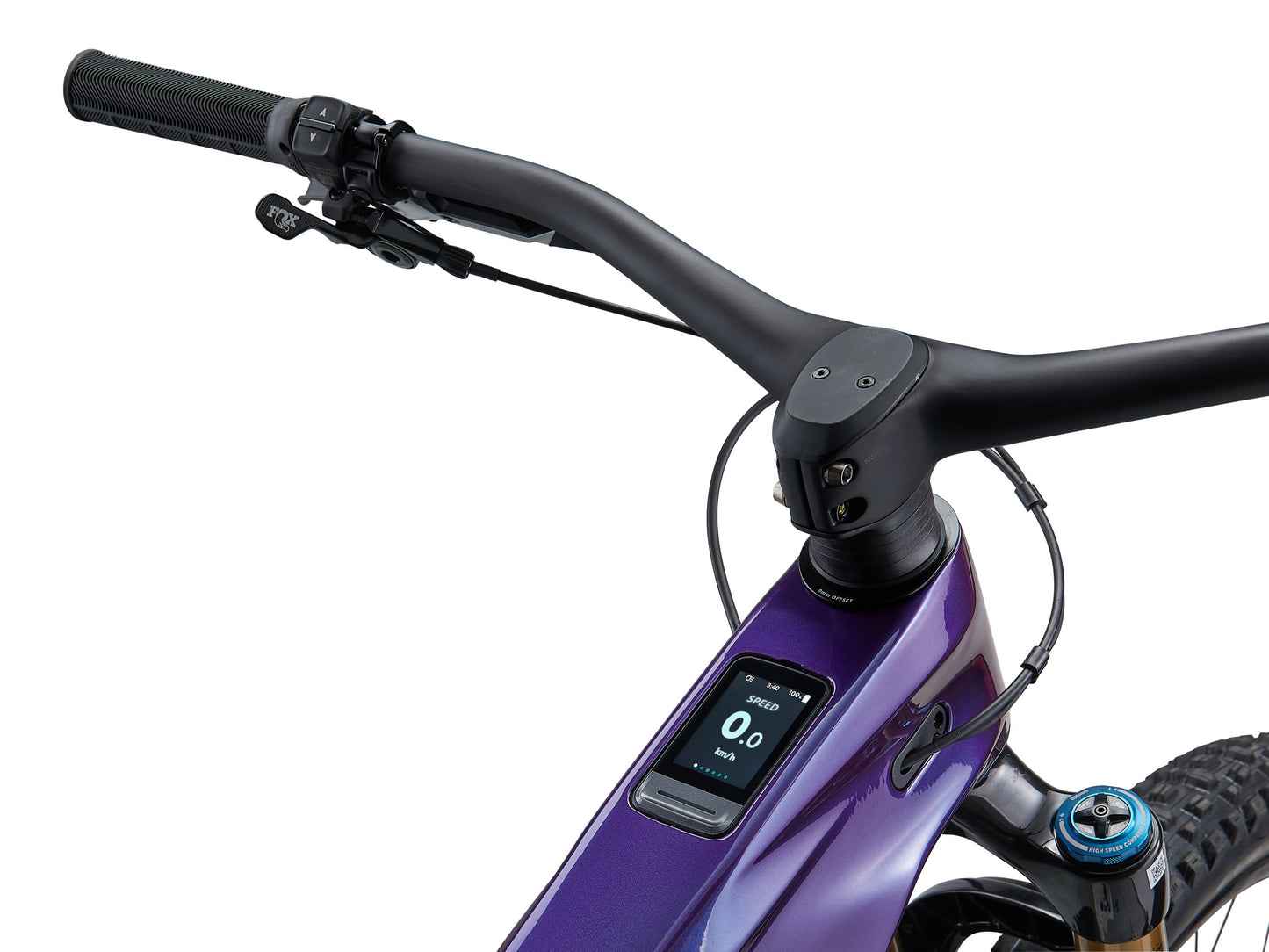

Display
RideControl GO LUX, frame integrated LED display ANT+
Battery
Giant EnergyPak Smart 560Wh, integrated, 48V, includes Giant EnergyPak Plus 280 range extender
Charger
Giant EnergyPak smart charger 4A, 48V
Handlebars
Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 35mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System
Stem
Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 35mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System
Saddle
Giant Romero Super Light
Seatpost
Fox Transfer Factory dropper, remote S: 150mm travel
Grips
Giant Tactal Pro-E, single lock-on
Brakes
SRAM Maven Ultimate, hydraulic, SRAM HS2 rotors [F]200mm, [R]200mm
Shift Levers
SRAM AXS Pod, Rocker Paddle, 1x12 speed

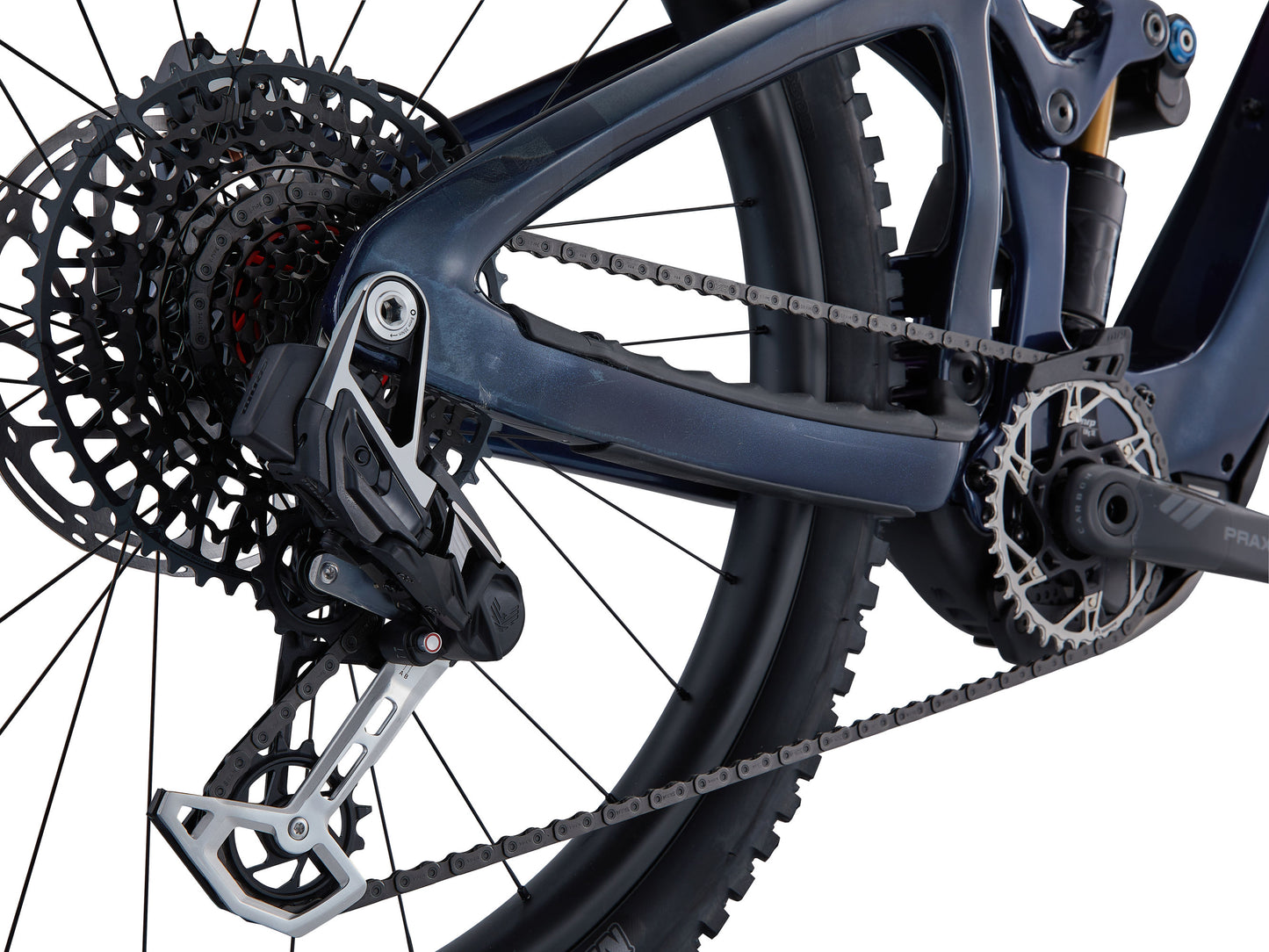

Rear Derailleur
SRAM XX Eagle T-Type AXS 12 speed
Cassette
SRAM X0 XS-1295 Eagle T-Type 10-52T 12 speed
Chain
SRAM X0 T-Type
Crankset
Praxis Performance Carbon e-crank arms SRAM Eagle T-Type steel direct mount, 36T chain ring
Pedals
N/A
Wheels
Rims: Giant E-TRX Hookless Tubeless ready Carbon 29" [F] 27.5" [R] 30mm inner width. Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle [R]. Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
Tyres
Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
Extras
Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP E-Amg, custom bashguard with integrated damping design
|
- Specifications are subject to change without notice
