Before using this vehicle check applicable local laws relating to your intended use of the vehicle on roads and road related areas.

Description

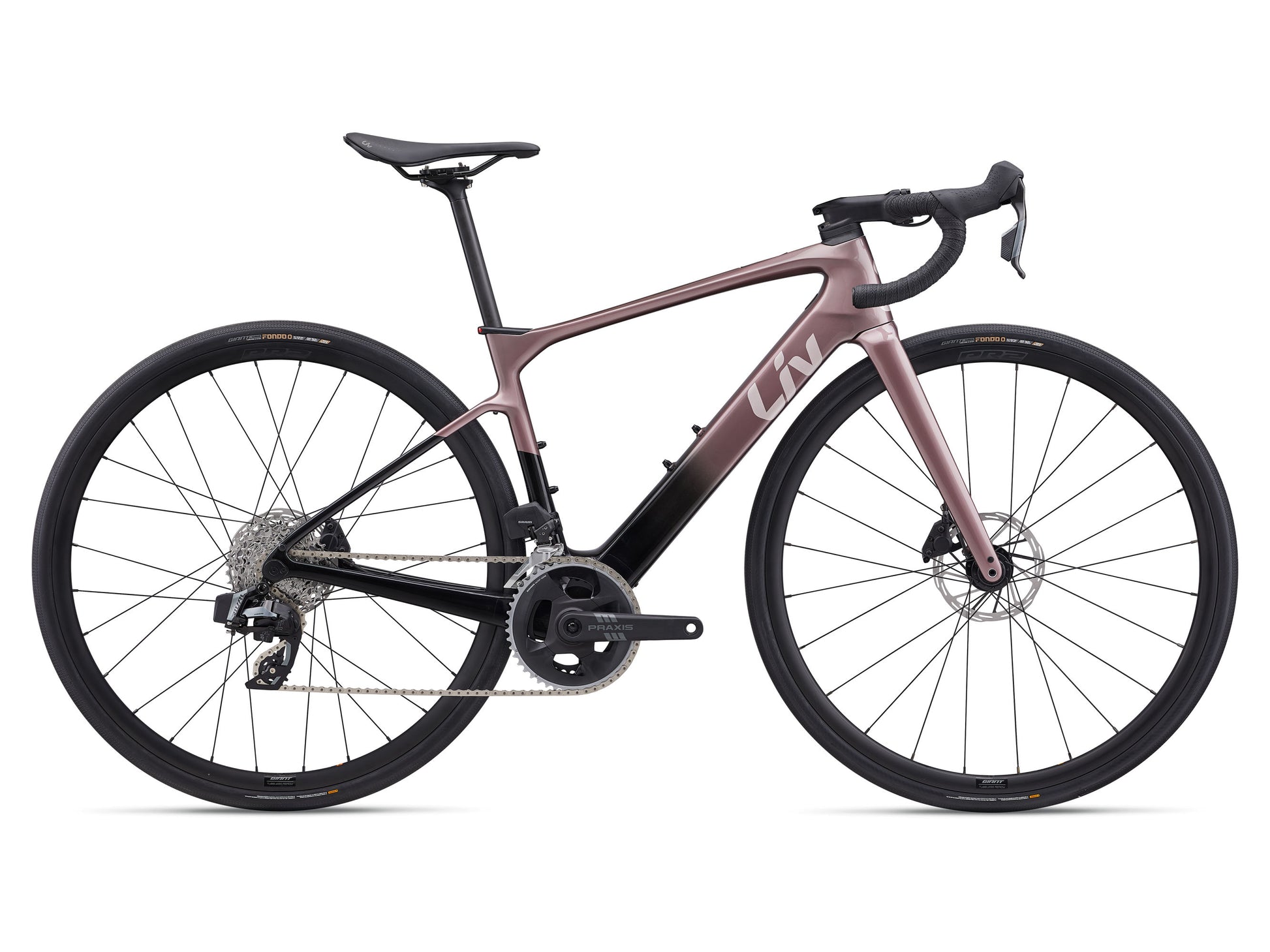

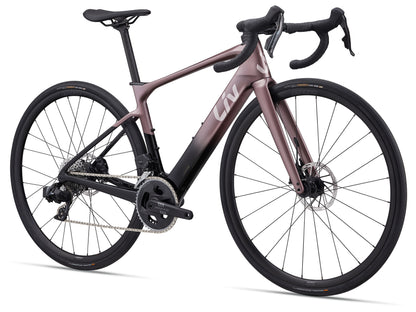

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast even when it’s not moving. The Avail E+ Elite 2 features SRAM Rival AXS wireless 12 speed electronic gearing, a high performance alloy wheelset and carbon seatpost for vibration damping, lively handling, light weight and performance.
A NATURAL RIDE
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
MAXIMUM MILES. MINIMUM FATIGUE.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
DELIVERING POWER & SPEED
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25 km/h in Australia.
SIZING: (Rider height)
X-Small: 150-163cm
Small: 158-169cm
Medium: 164-175cm
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Extreme: 40km | Good: 70km | Ideal: 100km
BIKE SPECSFRAME
Advanced-grade composite,12x145 thru-axle
FORK
Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
HUBS
[F] Giant Alloy, 24H [R] Giant SyncDrive Move Plus, 28H
RIMS
Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
SPOKES
Sapim spoke E-Light [R] Race [F], e-bike optimised
TYRES
Giant Gavia Fondo 0, tubeless, 700x32, folding
CRANKSET
SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Alloy ISIS, XS:165, S:165mm, M:170mm
BOTTOM BRACKET
Giant E+ System BBSS
SHIFT LEVERS
SRAM Rival AXS HRD, ED-Rival-E1 SRAM Rival AXS, FD-Rival-E-E1 12 speed
FRONT DERAILLEUR
SRAM Rival AXS, FD-Rival-E-E1
REAR DERAILLEUR
SRAM Rival AXS, RD-Rival-E-E1 12 speed
CASSETTE
SRAM Rival E1 XG-1250, 12-speed, 10-36T
CHAIN
SRAM Rival-E1, 12-speed
BRAKES
SRAM Rival AXS HRD, ED-Rival-E1, SRAM PaceLine rotors [F]160mm, [R]160mm
HANDLEBARS
Giant Contact SL D-Fuse Alloy XS:38/41cm, S:38/41cm, M:40/43cm
STEM
Giant Contact SL AeroLight Alloy XS:80mm S:90mm, M:100mm
SADDLE
Liv Approach
SEATPOST
Giant D-Fuse, Composite, 14mm offset
MOTOR
Giant SyncDrive Move Plus, Rear Hub, 30Nm
CONTROLLER
Mode support switch from SRAM Blips
DISPLAY
Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
BATTERY
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
CHARGER
Giant EnergyPak 4A smart charger, 60% in 1:45
LIGHTING
Seatpost clamp integrated tail light
PEDALS
Not included
|
* Specifications are subject to change without notice
