Description

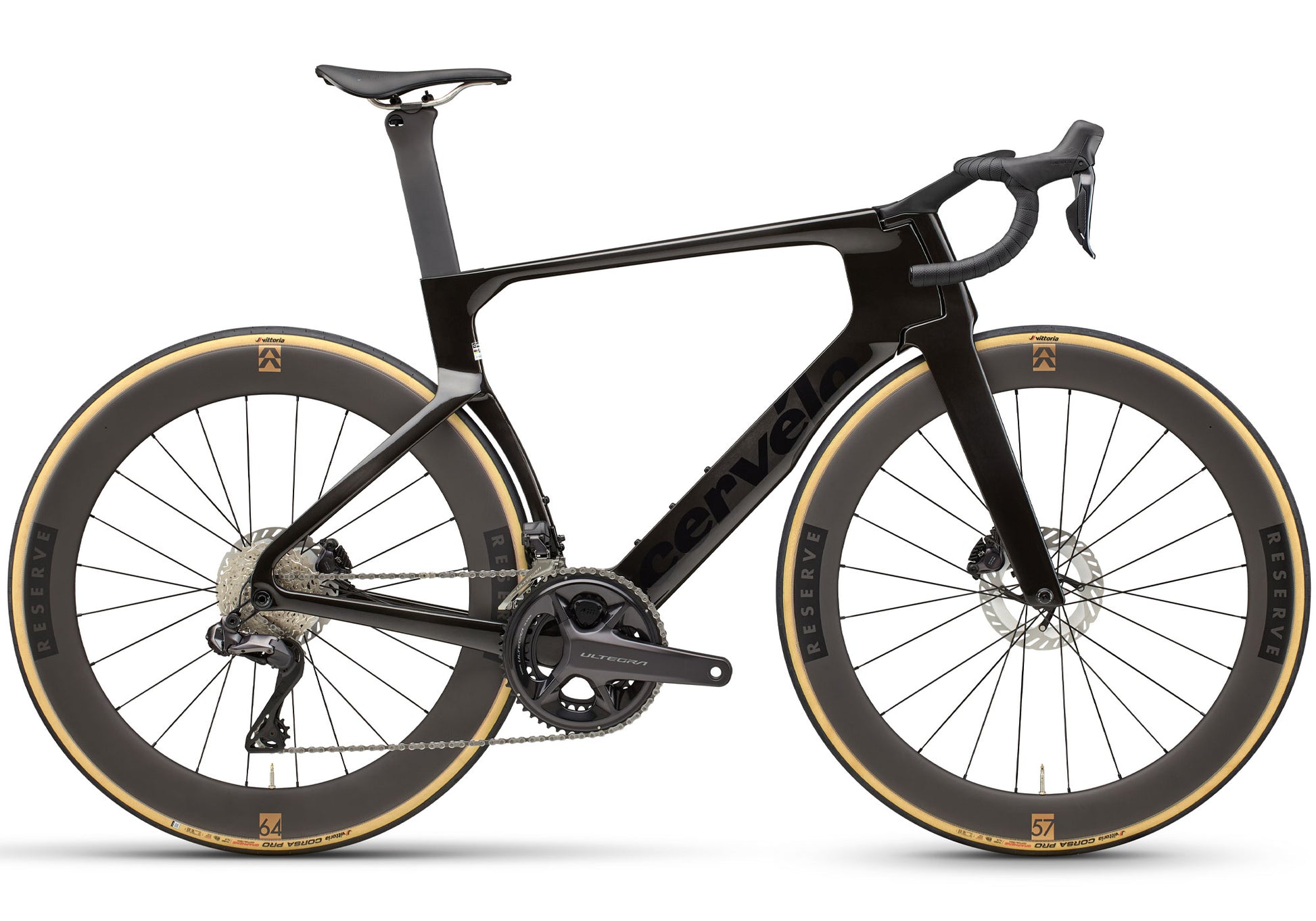

The Cervélo S5 is a sport-wide benchmark for speed and aerodynamic efficiency with the race results to back it up. From Wout van Aert winning the Green Jersey by the biggest margin of victory in modern history, to Simon Yates riding himself into the maglia rosa, S5’s iconic V-stem and bayonet fork are a fixture at the front of the professional peloton. The new S5 builds on that legacy of speed by getting even faster.
Aero Aero Aero
The new S5 is 6.3 Watts faster than its predecessor. These gains are realized primarily at the front end of the bike, but the integration of the asymmetric profiles of the seat tube and rear wheel are a significant source as well. Cervélo has long been the aerodynamic leader in the peloton, and they are confident that the new S5 is at least 5 Watts faster than the bikes of the competition.
One-Piece Handlebar/Stem
HB19 uses the “Plus-Four” concept, meaning the dimension at the hoods is 4cm narrower than in the drops (e.g. 38cm/42cm). This approach helps riders maintain a more aero body position while their hands are on the hoods, and provides stability in the drops for descending and sprinting. All bar sizes are UCI-legal, even in light of the most recent regulations change.
Not just faster. Lighter, too.
Despite an increase in surface area, the new S5 is 124 grams lighter than its predecessor. While the increase in fork and head tube depth added weight, Cervélo optimized the layup and hardware to make the system lighter.
Reserve 57|64 Wheelset Designed for S5:
The new Reserve 57|64 wheelset was co-developed by Reserve and Cervélo, and designed for use in the new S5. The rear wheel’s asymmetry matches the seat tube, ensuring air flows smoothly over both. The new wheelset is 3 Watts faster than the 52|63 wheels, and weighs the same.
Model Highlights:
- Race-ready package
- One-piece carbon cockpit | carbon seatpost
- Shimano Ultegra Di2 electronic 12 speed groupset with 4iiii Precision Pro, GEN3+ Dual Sided power meter
- Reserve 57|64TA carbon wheelset | Light DT Swiss 240 hubs
- Selle Italia NOVUS BOOST EVO SuperFlow saddle with Titanium rails
- -Extras: Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
SIZING:
X-Small 48cm: Suit 150-160cm rider height
Small 51cm: Suit 160-168cm rider height
Medium 54cm: Suit 168-176cm rider height
Large 56cm: Suit 176-184cm rider height
X-Large 58cm: Suit 184-194cm
XX-Large 61cm: Suit 184-194cm
BIKE SPECSFrame
Cervélo All-Carbon
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Handlebars/Stem
Cervélo HB19 Carbon one piece
SeatPost
Cervélo SP34 Carbon
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Titanium rails
Brakes
Shimano Ultegra, R8170 hydraulic with Shimano CL800 Centerlock rotors
Shift Levers
Shimano Ultegra, R8170
Front Derailleur
Shimano Ultegra, R8150 electronic
Rear Derailleur
Shimano Ultegra, R8150 electronic
Cassette
Shimano Ultegra, R8100, 11-34T, 12-Speed
Crankset
Shimano Ultegra, R8100, 52/36T with 4iiii Precision Pro, GEN3+ Dual Sided power meter
Bottom Bracket
FSA, BBright thread together for 24mm spindle
Chain
Shimano Ultegra M8100
Wheelset
Front: Reserve 57TA, DT Swiss 240 hub, 12x100mm, 24H, centerlock, tubeless compatible. | Rear: Reserve 64TA, DT Swiss 240 hub, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible.
Tires
Vittoria Corsa Pro TLR G2.0 700x29c
Extras
Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
|
* Specifications are subject to change without notice
