Description

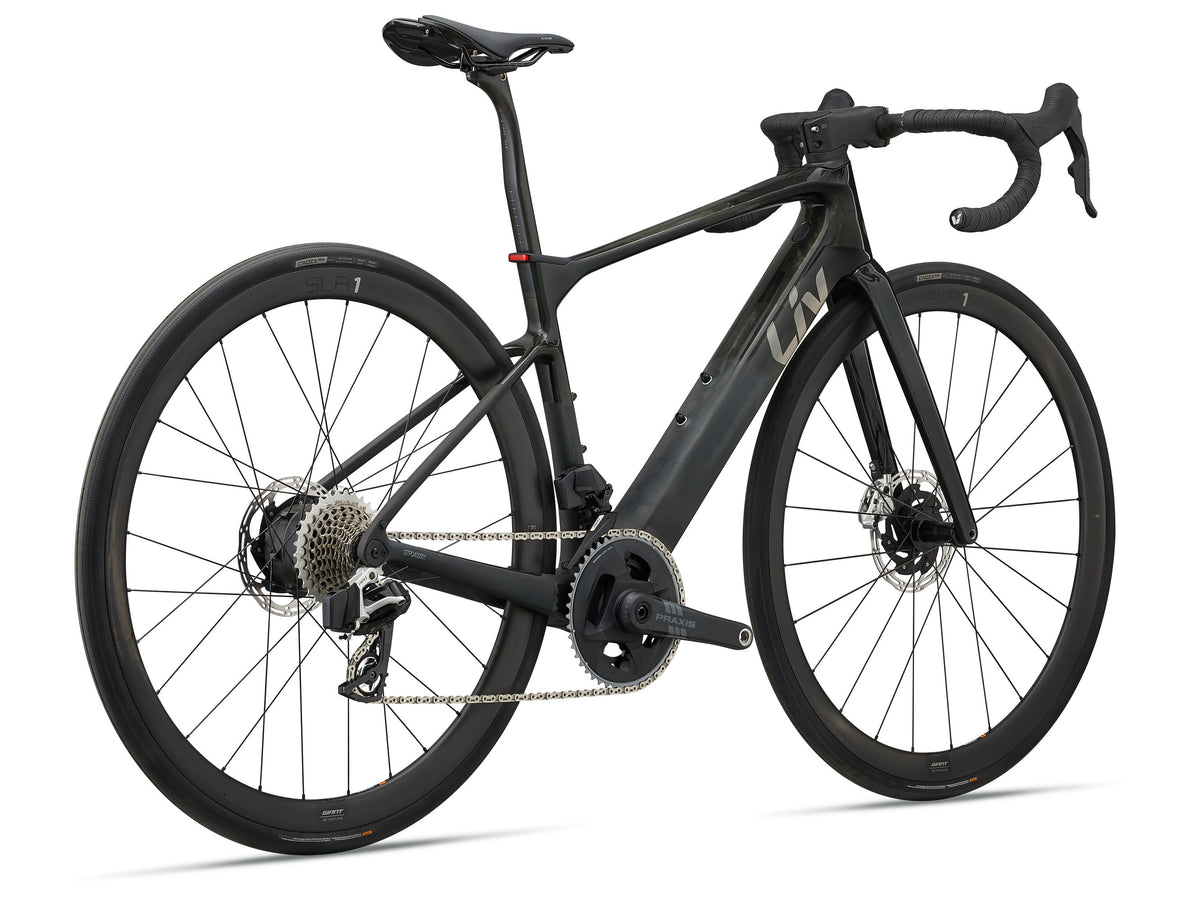

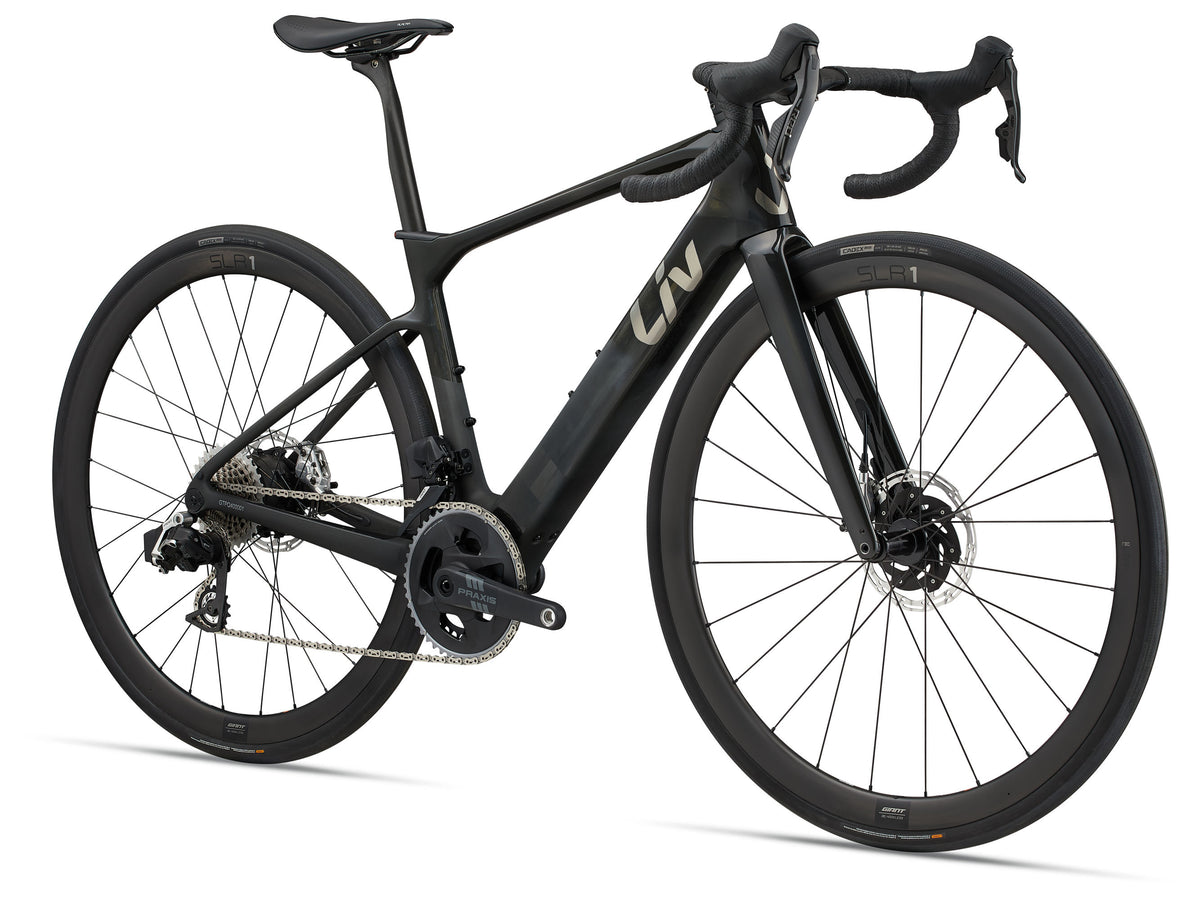

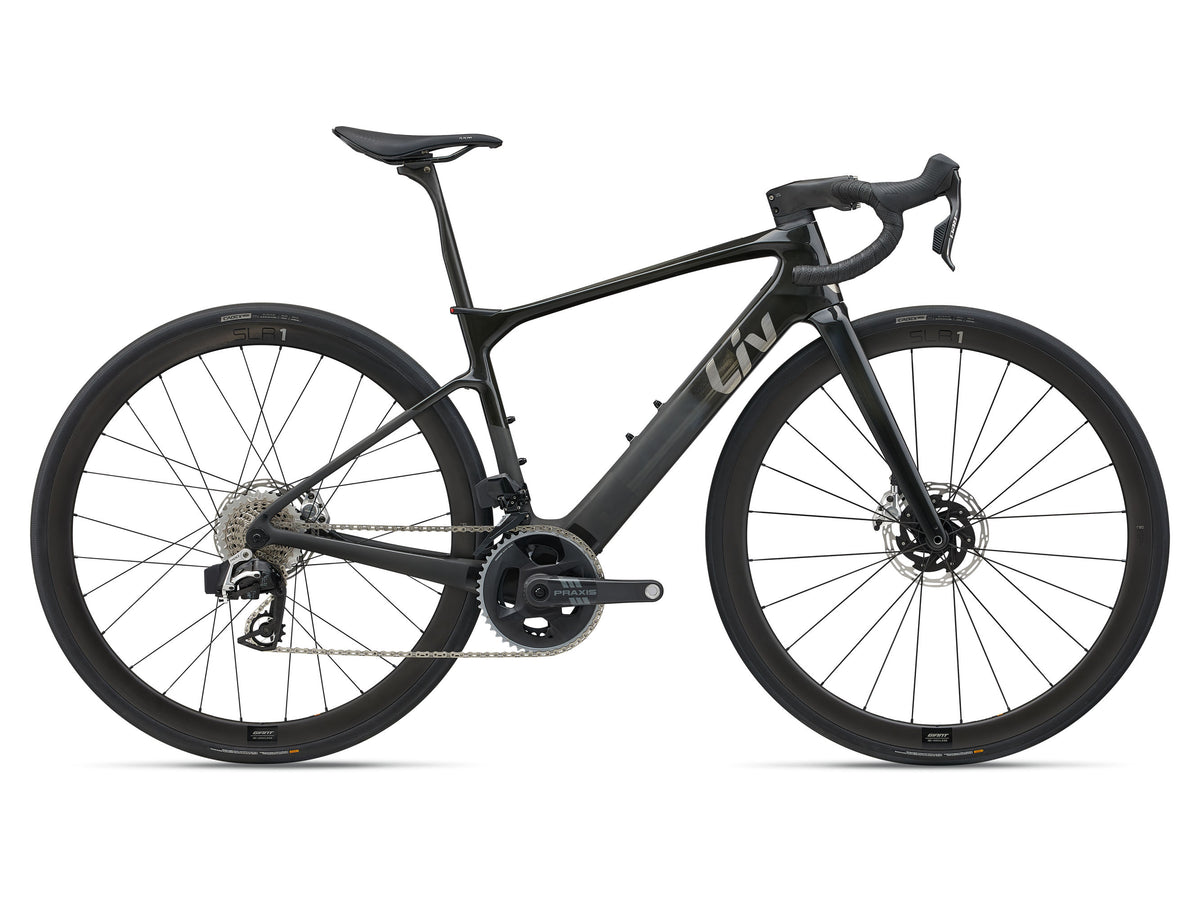

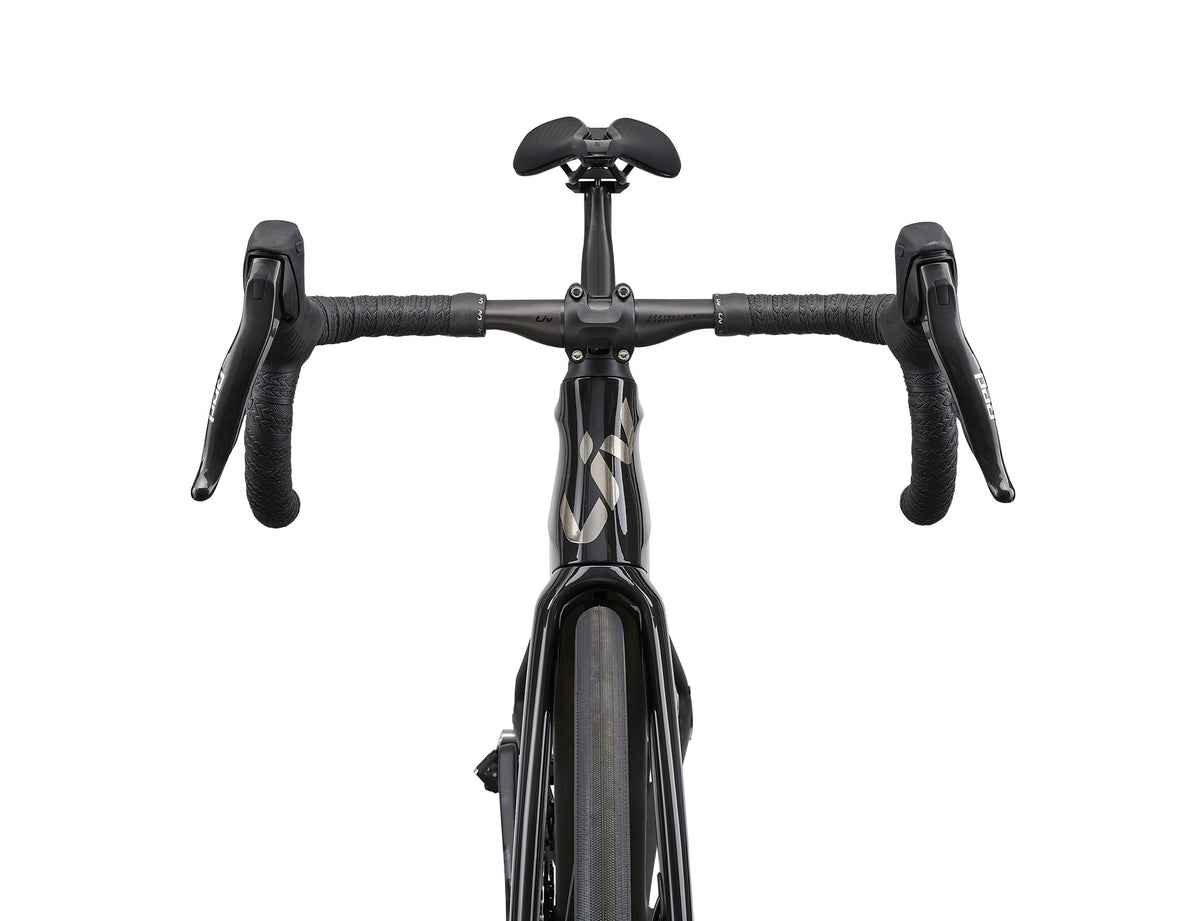

THE DESIGN OF THE AVAIL ADVANCED E+ ELITE STEALTHILY CONCEALS ITS POTENT ELECTRIC CAPABILITIES. A COMPACT REAR HUB MOTOR, LIGHTWEIGHT CARBON FRAME AND FORK, HIDDEN CONTROLS, AND INTERNAL CABLE ROUTING IS THE EPITOME OF A BEAUTIFUL, HIGH-END ROAD BIKE THAT LOOKS FAST—EVEN WHEN IT’S NOT MOVING.
A NATURAL RIDE
It looks like an analogue road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
MAXIMUM MILES. MINIMUM FATIGUE.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender*. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience. *sold separately
DELIVERING POWER & SPEED

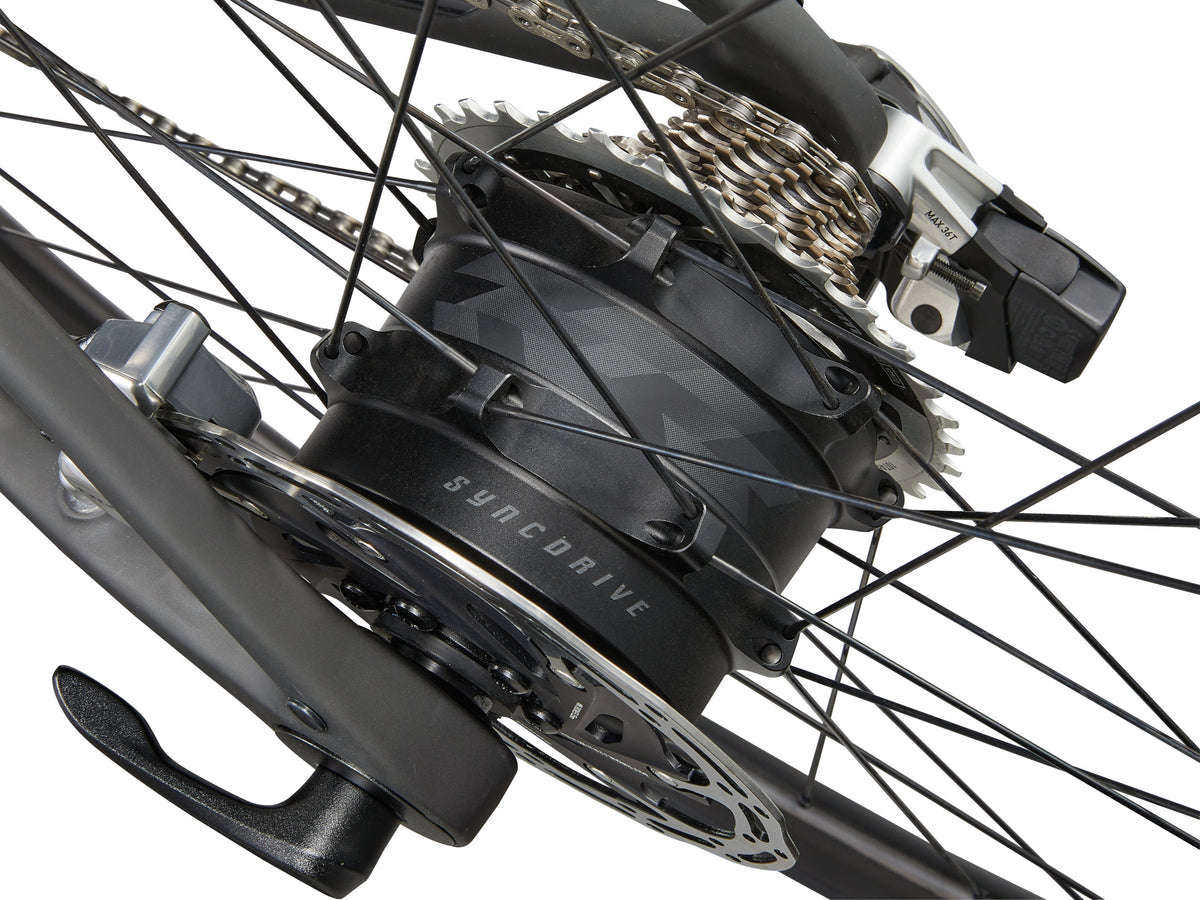

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30Nm which is comparable to 75Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25km/h in Australia.
- Frame: Advanced grade composite frame and SL grade composite fork.
- Motor: Giant SyncDrive Move Plus, Rear Hub, 30Nm.
- Battery: 400Wh. up to 120km range. Range extender compatible.
- Giant SLR 1 E+ 36mm Carbon Disc Wheel System
- Carbon stem and handlebars
- Range: Up to 120km
- Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Women's Size Chart
| Size | Rider Height |
| Medium | 164-175cm |
BIKE SPECSFrame
Advanced-Grade Composite, disc, 12x145mm
Fork
Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, disc, 12x100mm
Motor
Giant SyncDrive Move Plus, Rear Hub, 30Nm
Display and ccontroller
RideControl GO, frame integrated LED display ANT+ Wireless display compatible. Mode support switch from SRAM blips.
Battery
EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Charger
EnergyPak 4A smart charger compact
Stem
Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm

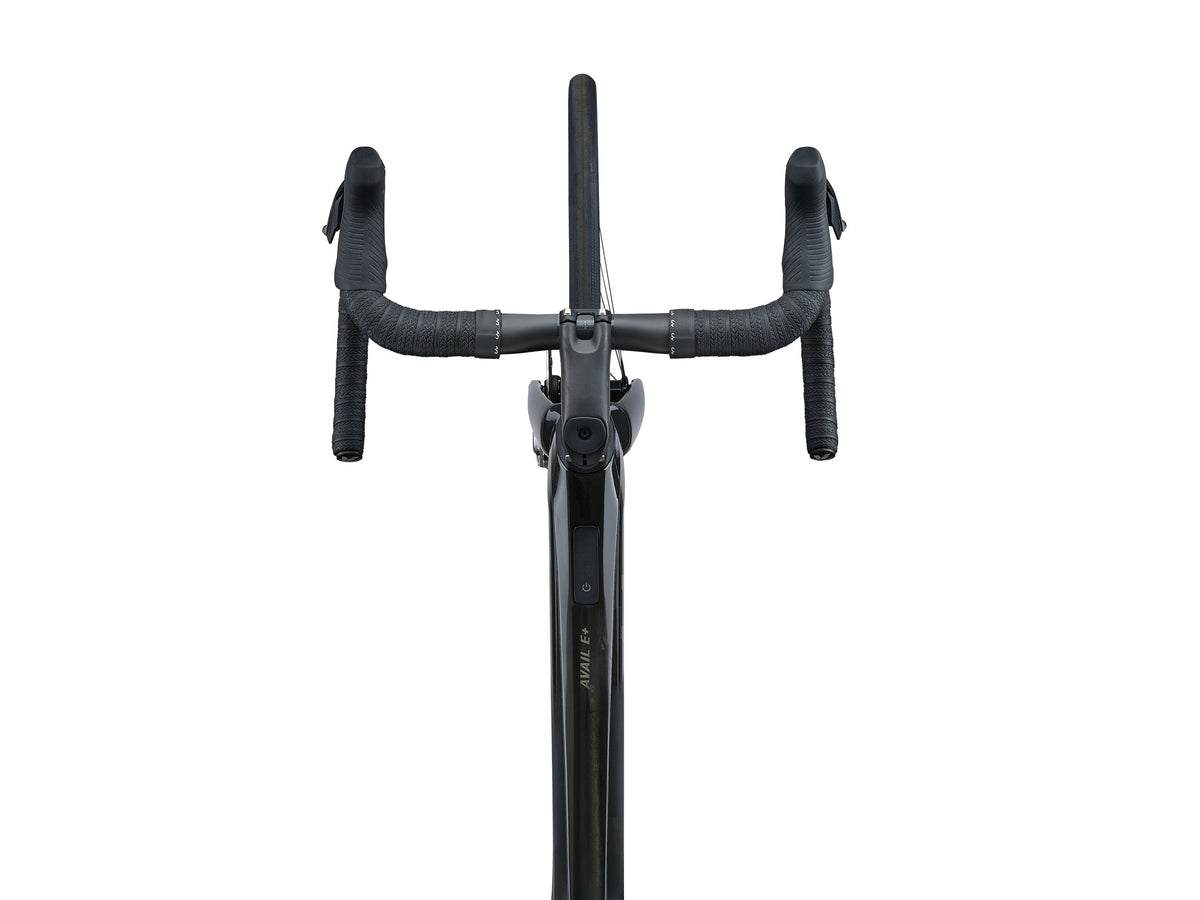

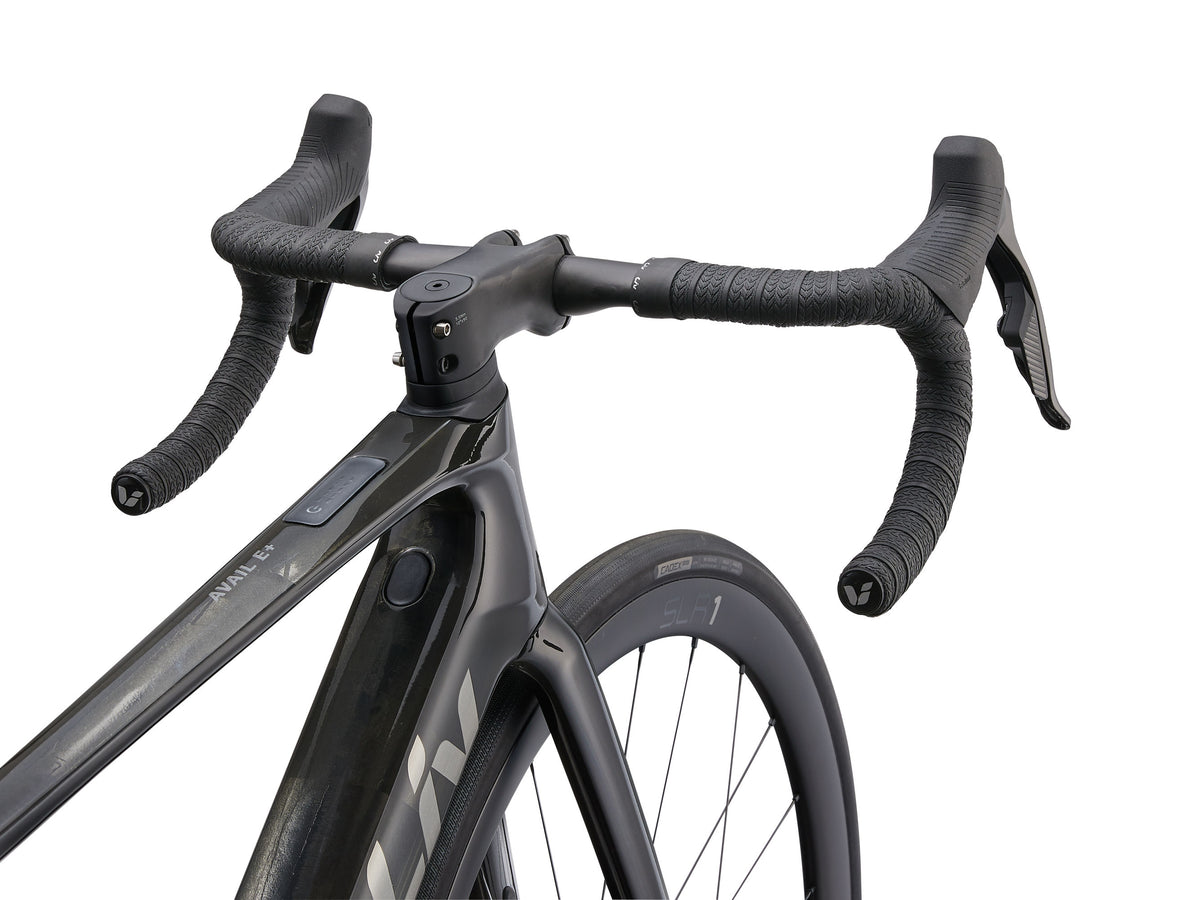

Handlebars
Liv Contact SLR D-Fuse XS:38/40cm, S:40/42cm, M:40/42cm
Saddle
Liv Alacra SL
Seatpost
Giant D-Fuse SLR, Composite, -5/+15mm offset
Bar tape
Stratus Lite 3.0
Brakes
SRAM RED AXS HRD, ED-RED-E1, SRAM CenterLine X rotors [F]160mm, [R]160mm
Shift Levers
SRAM RED AXS HRD, ED-RED-E1 24 speed
Cassette
SRAM RED XG-1290, 12-speed, 10-33T
Rear Derailleur
SRAM RED AXS, RD-RED-E-E1 12 speed
Chain
SRAM RED E1, 12-speed

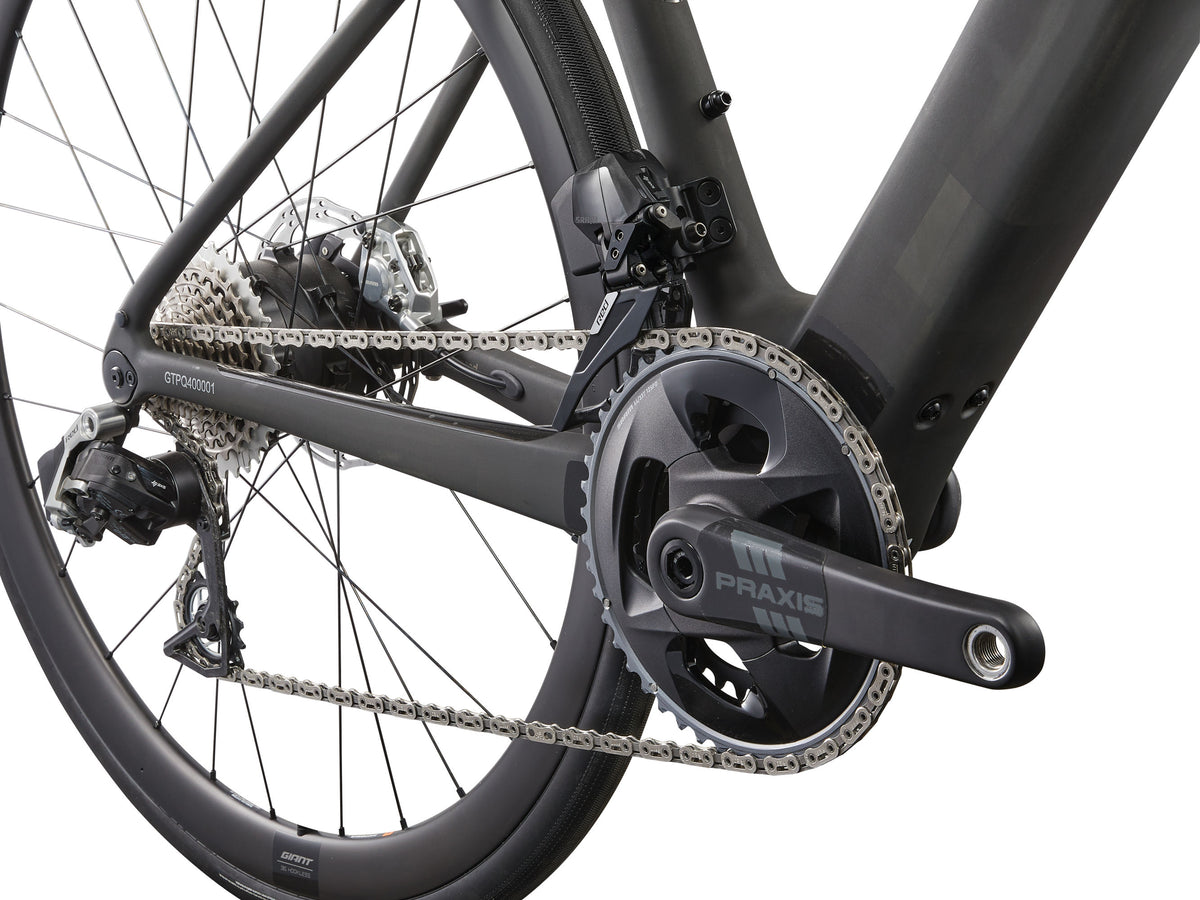

Crankset
SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, XS: 165mm, S:165mm, M:170mm
Pedals
N/A
Wheels
Giant SLR 1 E+ 36mm Carbon Disc Wheel System, Hookless, Tubeless Ready
Tyres
CADEX Classics, tubeless, 700x28c, folding
NSW Certification
ULL-104279-EA
|
- Specifications are subject to change without notice
Before using this vehicle check applicable local laws relating to your intended use of the vehicle on roads and road related areas.
This bicycle has a maximum assisted speed of 25km/h, and maximum continuous power output of 250W and meets Standard EN15194 for electrically power assisted cycles - EPAC bicycles.
Only e-bikes that comply with EN15194 can be used on NSW roads and road related areas from March 2029.
