Description
In ideal conditions you'll enjoy up to 250km range with the new Energypack 800 and powerful Yamaha SyncDrive 85nm motor, so you'll be able to ride every trail, every steep climb, every thrilling descent, again and again!
Trail technology

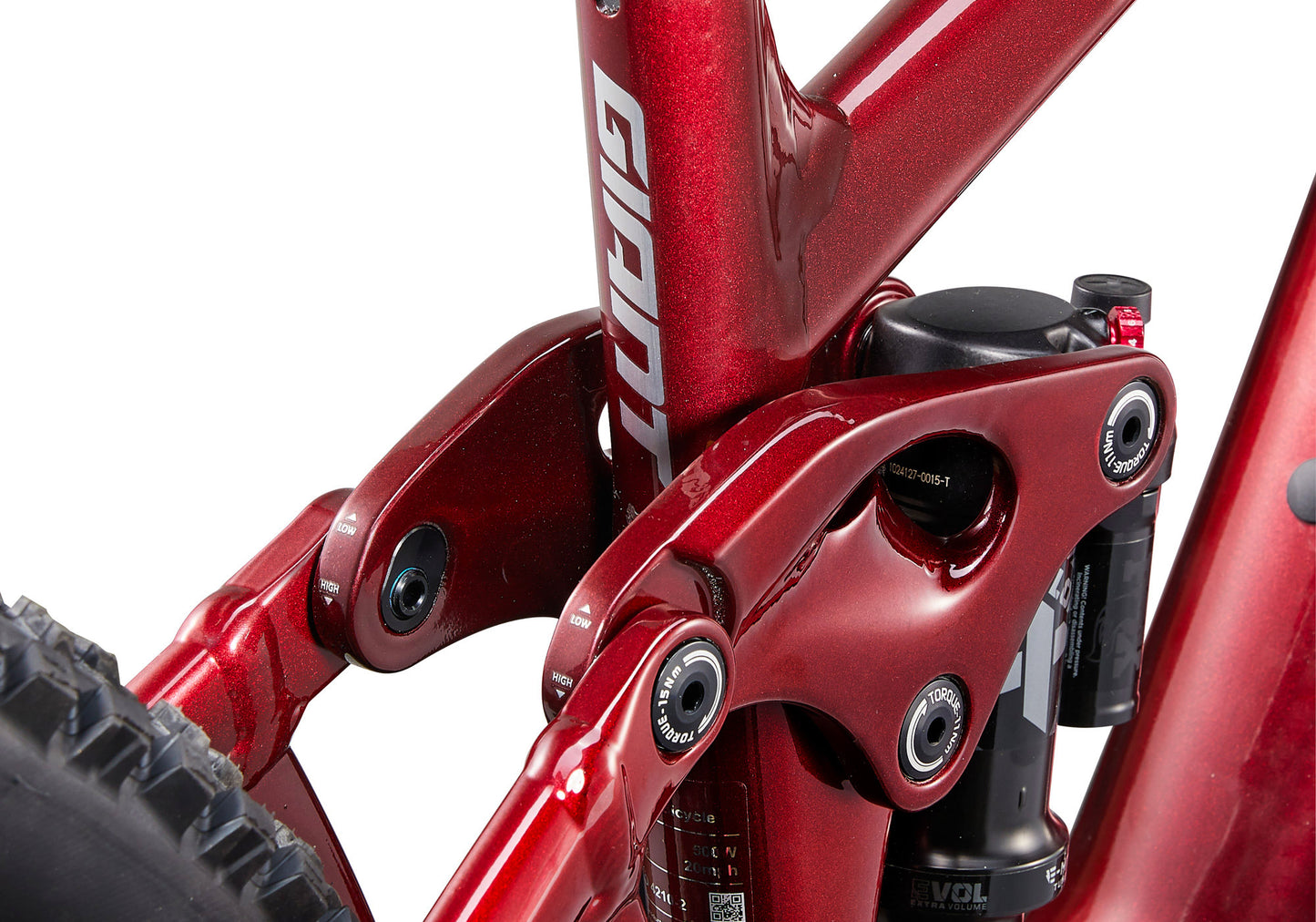

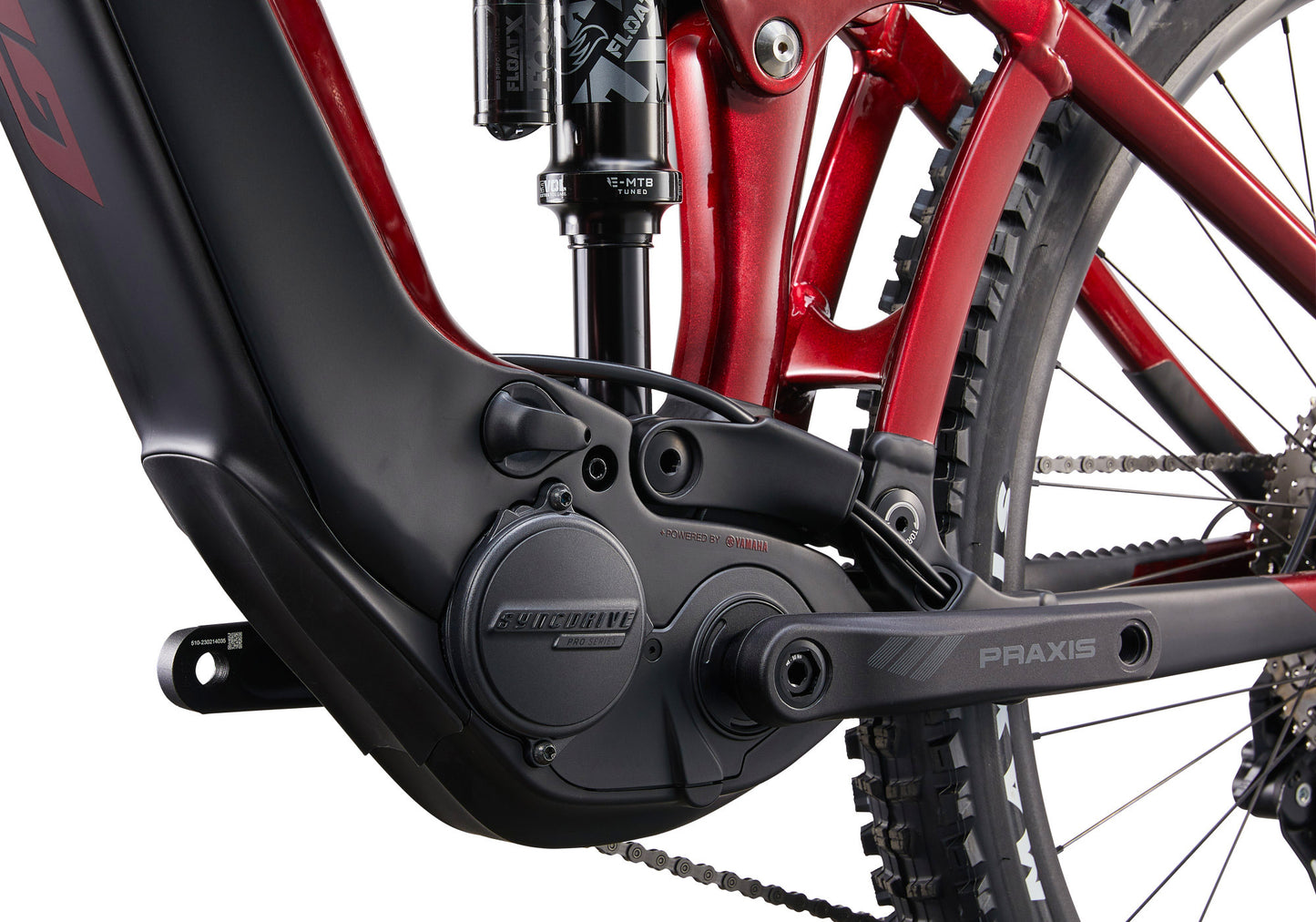

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak with 800Wh of energy.
A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.
- Energypak 800WH battery with 70-250km range depending on terrain
- RideControl GO, frame integrated LED display
- ALUXX SL-grade Aluminium frame 160mm travel with flip-chip adjustable geometry mated to Fox 38 Rhythm forks with 170mm travel
- Shimano CUES SL-6000 11 speed gearing
- Shimano Deore 4 piston hydraulic disc brakes
- Giant Contact Switch, dropper seat post
SIZING: (Rider height)
Medium: 171-180cm
Large: 179-188cm
X-Large: 187-198cm
BIKE SPECSFRAME
ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
FORK
Fox 38 Rhythm E-Tuned, 170mm travel, 44mm offset, GRIP damper, Boost Kabolt-X 110x15mm
FRONT HUB
Shimano MT410 Boost, Center-Lock
REAR HUB
Shimano MT410 Boost, Center-Lock
SPOKES
Sapim E-Lite e-bike optimized
RIMS
Giant AM 29"[F] 27.5"[R], Tubeless ready, 30mm inner width
INNER TUBES
Presta valve
FRONT TYRE
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
REAR TYRE
Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
CRANKSET
Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
CHAINRINGS
Praxis Wave 36T Cold Forged 4130 premium steel
BOTTOM BRACKET
N/A
SHIFT LEVERS
Shimano CUES, SL-6000, 1x11 speed
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano CUES, U6000, Shadow+
CASSETTE
Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
CHAIN
Shimano LinkGlide, CN-LG500
FRONT BRAKE
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 220mm
REAR BRAKE
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
HANDLEBARS
Giant Contact Trail 35mm
GRIPS
Giant Tactal Pro-E, single lock-on
STEM
Giant Contact SL 35mm
SADDLE
Velo VL3594
SEATPOST
Giant Contact Switch, dropper, 30.9mm
SEAT BINDER
Alloy clamp
PEDALS
N/A
MOTOR
SyncDrive Pro 2, 85Nm, powered by Yamaha
CONTROLLER
RideControl Ergo 3, grip integrated. RideControl GO, frame integrated LED displayANT+ Wireless display compatible
BATTERY
EnergyPak Smart 800Wh EnergyPak Plus range extender compatible. Torx 25 Battery Lock with built-in Torque limiter. EnergyPak 6A smart charger
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)
|
