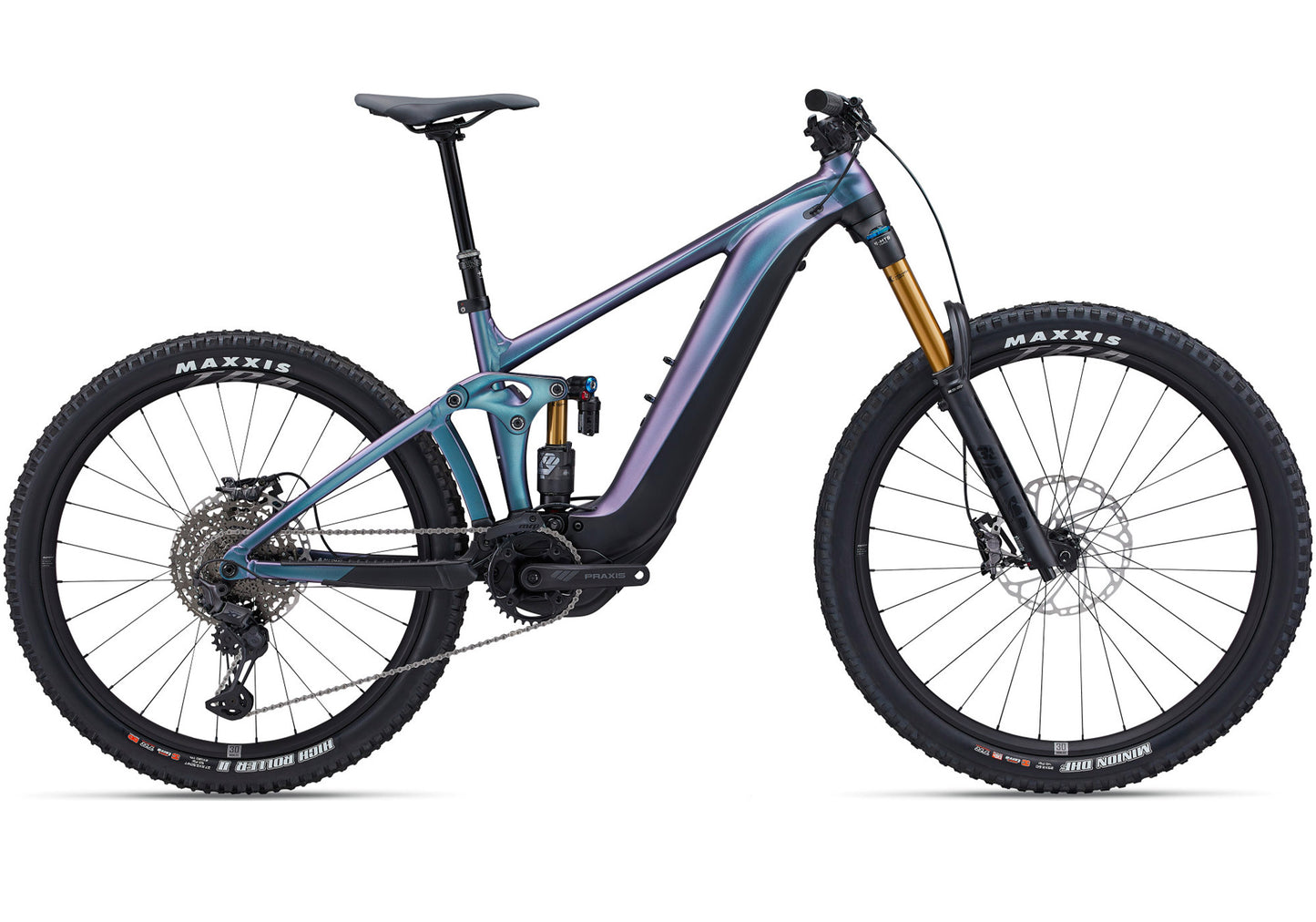

2024 Giant Reign E+ 1 Men's Electric Mountain Bike - Blue Dragonfly

2024 Giant Reign E+ 1 Men's Electric Mountain Bike - Blue Dragonfly

Regular price $11,499.00 AUD
Regular price $0.00 AUD Sale price $11,499.00 AUD
Call to order
GST included. Shipping calculated at checkout.
Size

The 2024 Giant Reign E+ 1 benefits from top shelf Shimano XT components and Fox Factory suspension along with a high-spec wheelset. In ideal conditions you'll enjoy up to 250km range with the new Energypack 800 and powerful Yamaha SyncDrive 2 85nm motor, so you'll be able to ride every trail, every steep climb, every thrilling descent, again and again!

Trail technology

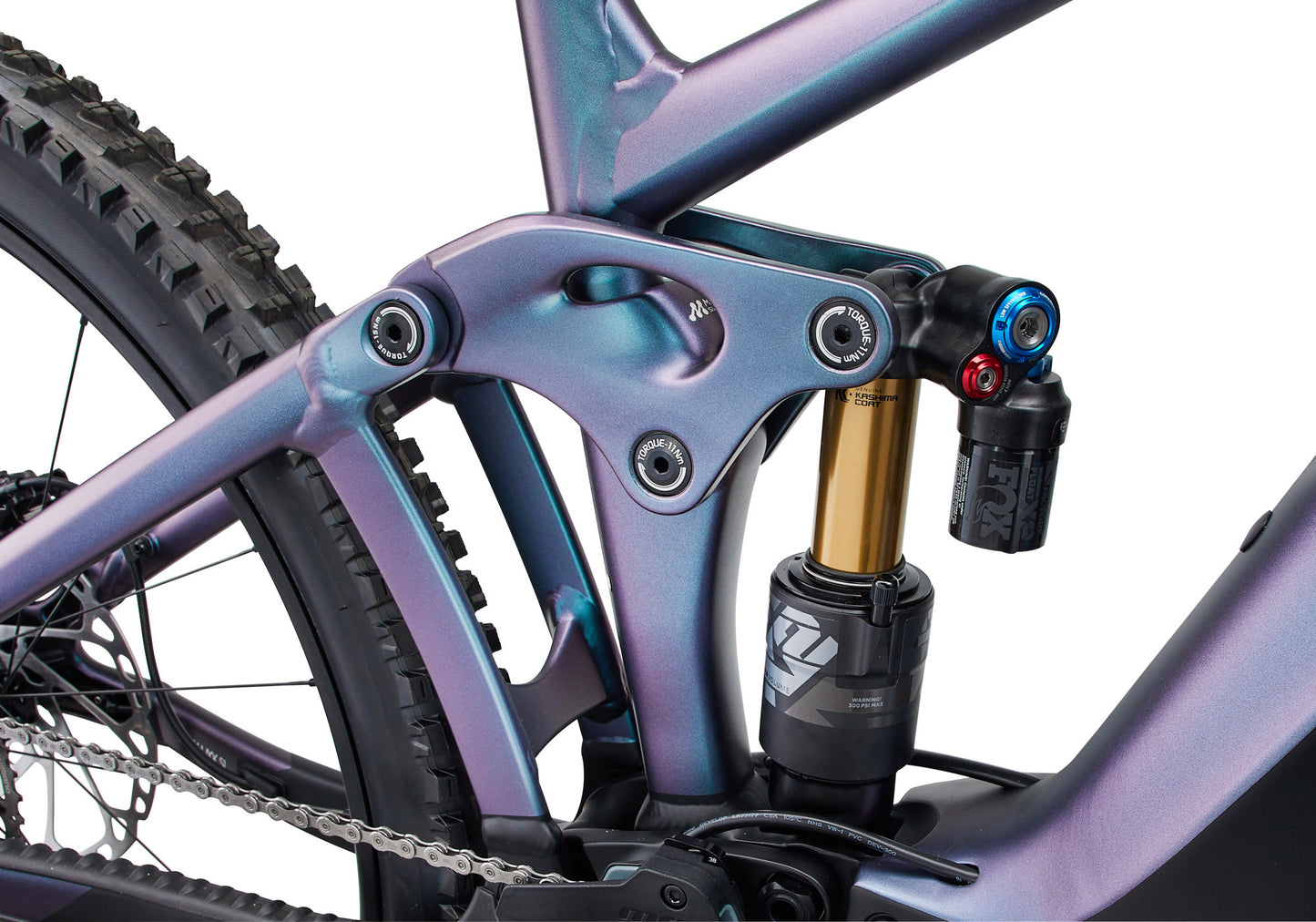

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.

Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak with 800Wh of energy.

A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.

  • Energypak 800WH battery with 70-250km range depending on terrain
  • RideControl GO, frame integrated LED display
  • ALUXX SL-grade Aluminium frame 160mm travel with flip-chip adjustable geometry mated to Fox 38 Rhythm forks with 170mm travel
  • Shimano XT 11 speed gearing
  • Shimano XT 4 piston hydraulic disc brakes
  • TranzX travel-adjustable dropper seat post
  • E-TRA Hookless Tubeless ready Alloy 29/27.5" wheelset

SIZING: (Rider height)

Small: 163-172cm
Medium: 171-180cm
Large: 179-188cm
X-Large: 187-198cm

BIKE SPECS

FRAME
ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
FORK
Fox 38 Factory E-Tuned, 170mm travel, 44mm offset, GRIP2 VVC damper, Boost Kabolt-X 110x15mm
FRONT HUB
E-TRA MTB Alloy Hub, 6 Bolt, 110x15
REAR HUB
148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle
SPOKES
Sapim E-Lite Race e-bike optimized
RIMS
E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width
INNER TUBES
Presta valve
FRONT TYRE
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
REAR TYRE
Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
CRANKSET
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set
CHAINRINGS
Praxis Wave 36T Cold Forged 4130 premium steel
BOTTOM BRACKET
N/A
SHIFT LEVERS
Shimano XT LinkGlide, 1x11 speed
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano XT LinkGlide 11-speed, Shadow+
CASSETTE
Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
CHAIN
Shimano LinkGlide, CN-LG500
FRONT BRAKE
Shimano XT BR-M8120, 4-piston, hydraulic disc 220mm
REAR BRAKE
Shimano XT BR-M8120, 4-piston, hydraulic disc 220mm
HANDLEBARS
Giant Contact Trail 35mm
GRIPS
Giant Tactal Pro-E, single lock-on
STEM
Giant Contact SL 35mm
SADDLE
Giant Romero Trail
SEATPOST
TranzX travel-adjustable dropper, remote, 30.9mm
SEAT BINDER
Alloy clamp
PEDALS
N/A

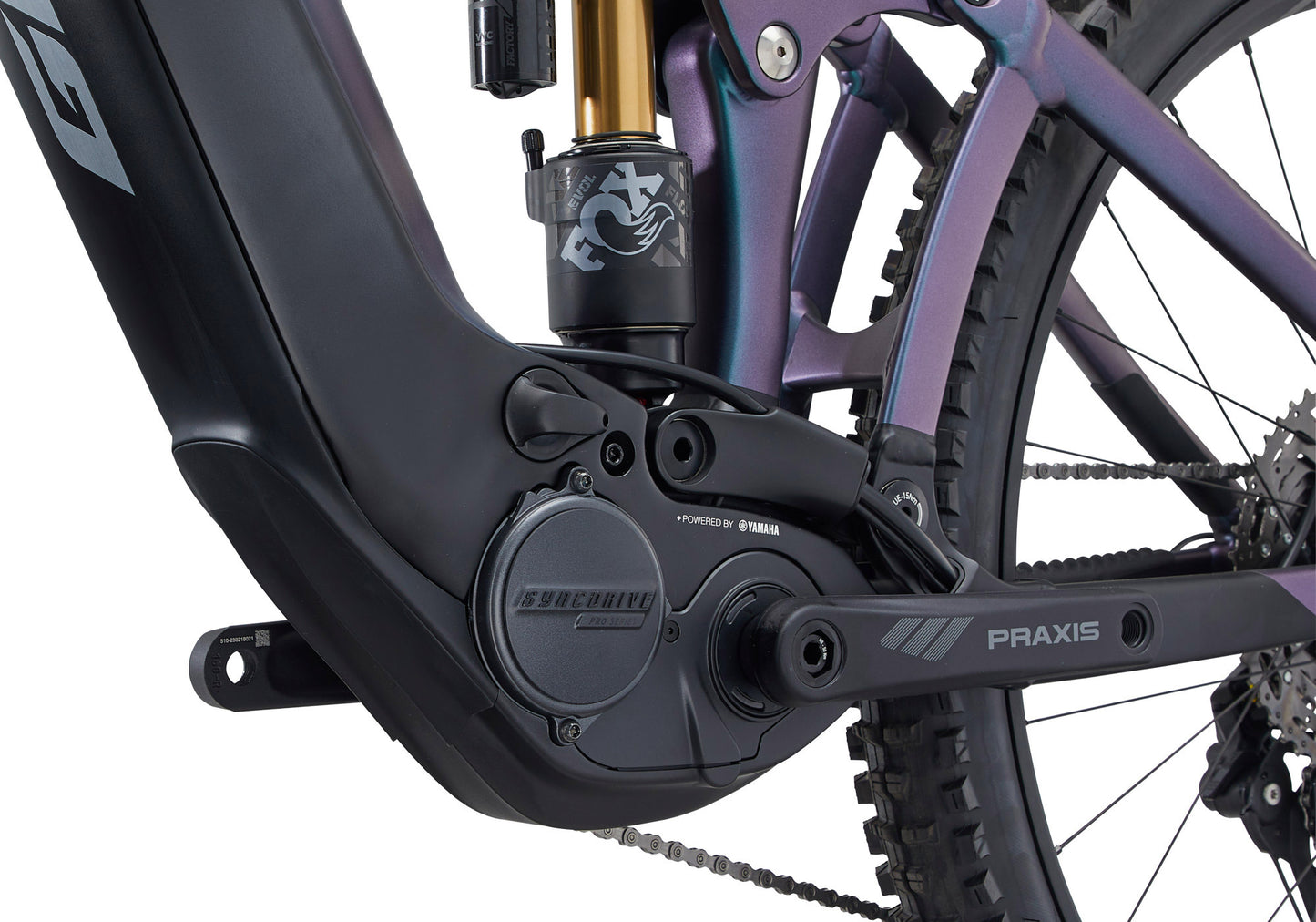

MOTOR
SyncDrive Pro 2, 85Nm, powered by Yamaha
CONTROLLER
RideControl Ergo 3, grip integrated. RideControl GO, frame integrated LED displayANT+ Wireless display compatible
BATTERY
EnergyPak Smart 800Wh EnergyPak Plus range extender compatible. Torx 25 Battery Lock with built-in Torque limiter. EnergyPak 6A smart charger
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)
* Specifications are subject to change without notice
