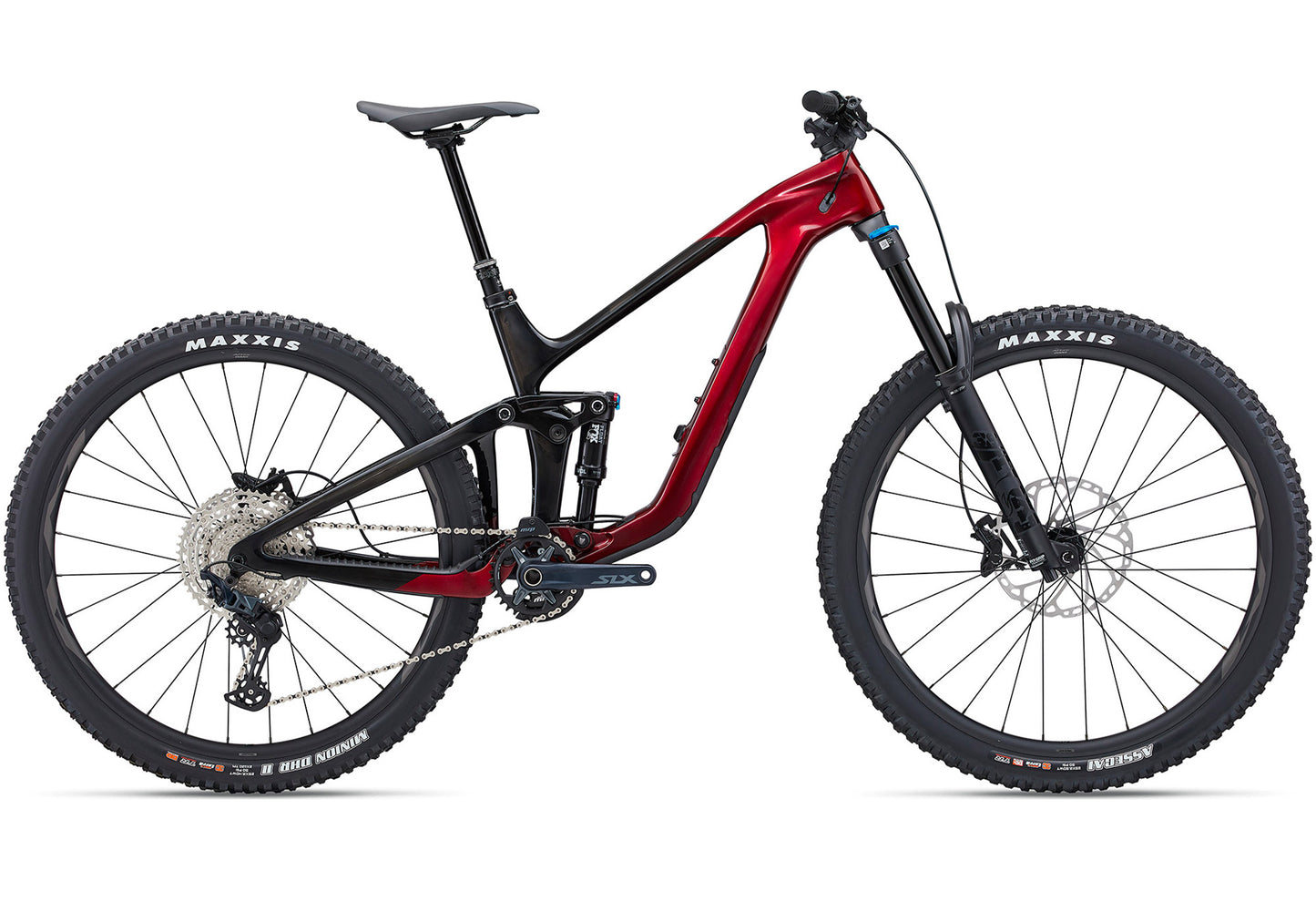

Description
This all-new composite chassis is built strong, light and fast for Giant enduro pros. A new suspension setup been developed, tested and raced at the highest levels. And more adjustability lets you tackle technical trails just the way you like.

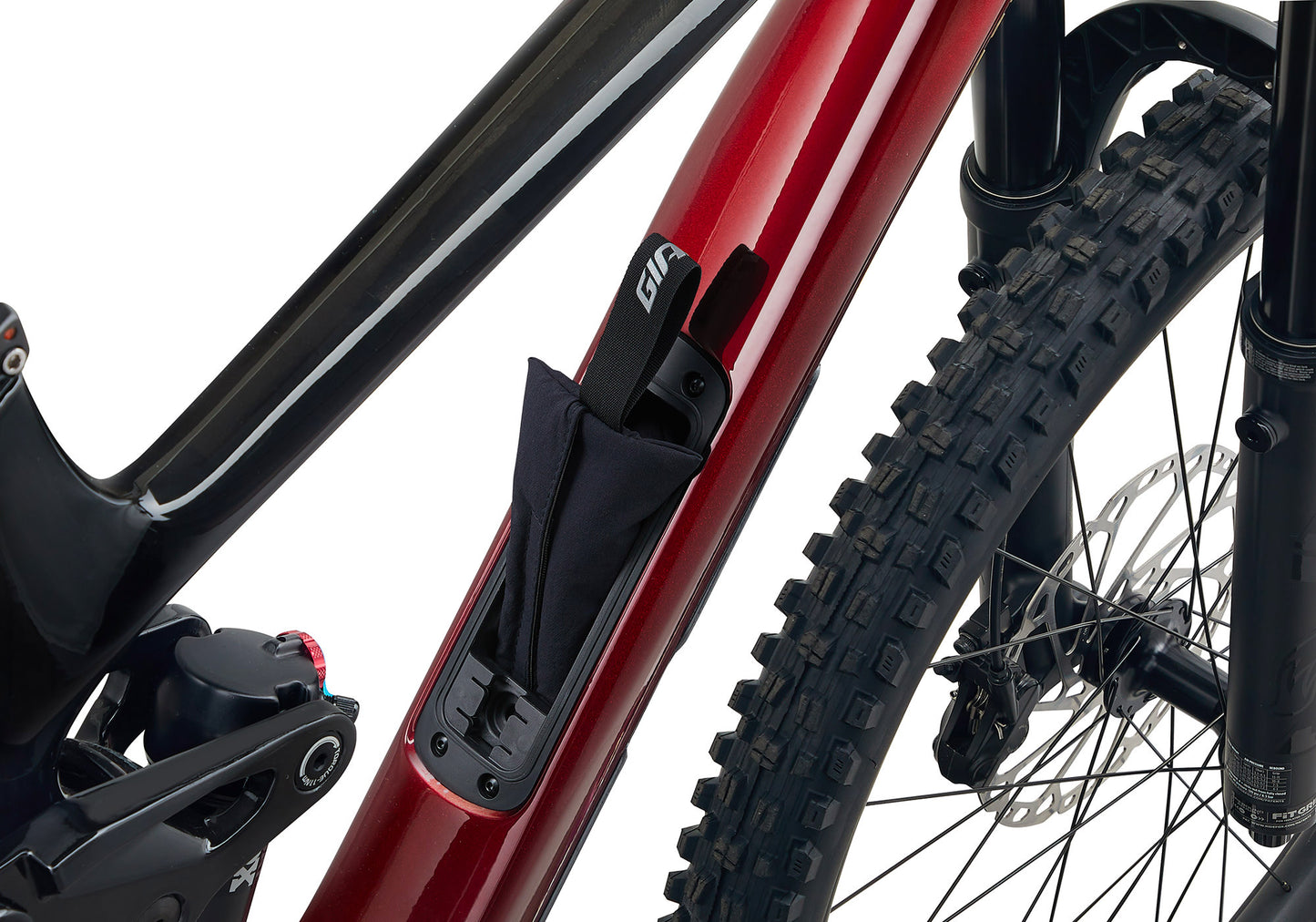

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.
Small: 163cm - 172cm
Medium: 171cm - 180cm
Large: 179cm - 188cm
X-Large: 187cm - 198cm
* Specifications are subject to change without notice
This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.
- Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension
- Fox 38 Rhythm forks with 170mm travel

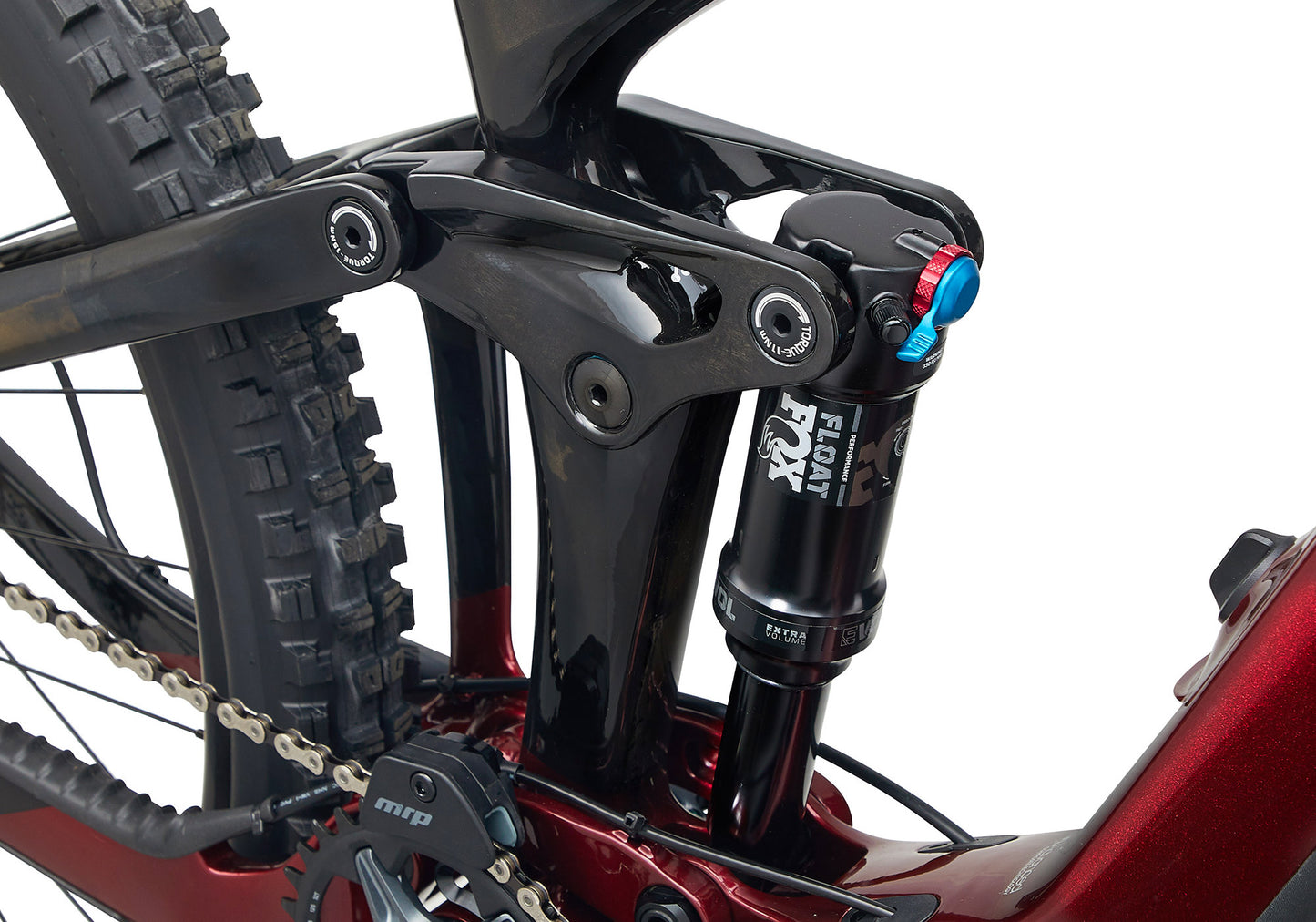

- Fox Float Performance rear shock
- Shimano SLX 12 speed drivetrain for durability and smooth shift performance in all conditions
- Giant AM 29 alloy wheelset
- TranzX travel-adjustable dropper seat post
- Shimano 4 piston hydraulic disc brakes
Small: 163cm - 172cm
Medium: 171cm - 180cm
Large: 179cm - 188cm
X-Large: 187cm - 198cm
BIKE SPECSFRAME
Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
FORK
Fox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
REAR SHOCK
Fox Float Performance, custom tuned for Giant
HUBS
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
SPOKES
Stainless steel
RIMS
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
TYRES
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, tubeless
CRANKSET
Shimano SLX, 32t, 55mm chainline
BOTTOM BRACKET
Shimano, press fit
SHIFT LEVERS
Shimano SLX SL-M7100, 1x12 speed
DERAILLEURS
Rear: Shimano SLX RD-M7100 12 speed
CASSETTE
Shimano Deore M6100, 10x51 12 speed
CHAIN
KMC X-12
BRAKES
Shimano BR-MT520, hydraulic, Shimano RT-66 rotors 220mm
HANDLEBARS
Giant Contact TR35, 35mm. Grips: Giant Tactal Pro Single lock-on
STEM
Giant Contact SL superlight, 35mm, 8 degree
SADDLE
Giant Romero SL
SEATPOST
TranzX travel-adjustable dropper, remote
PEDALS
N/A
EXTRAS
Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
|
