Description

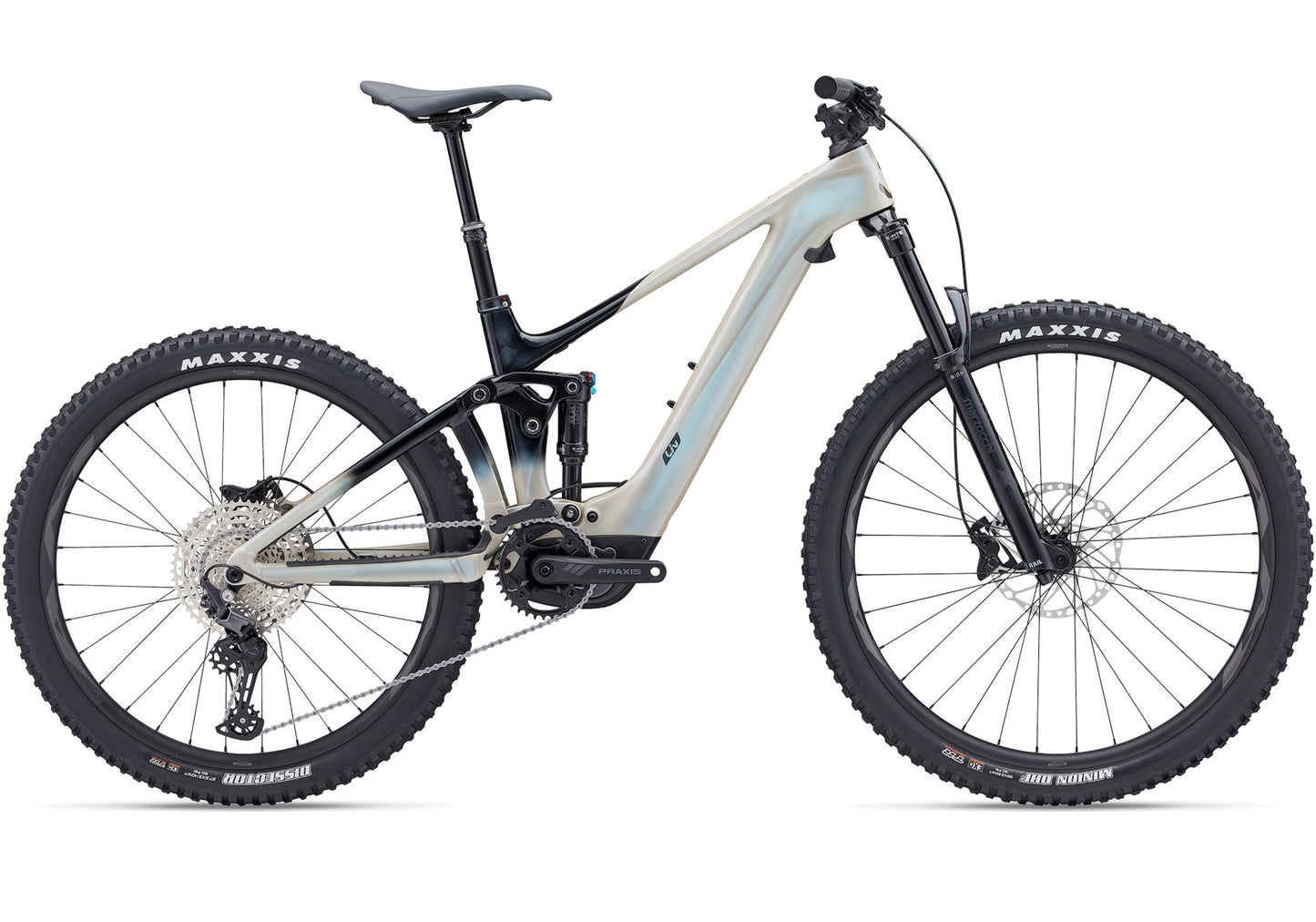

Enjoy next-level performance and unforgettable fun on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
X-Small: 152cm - 163cm
Small: 158cm - 169cm
Medium: 164cm - 175cm
Large: 170cm - 181cm
* Specifications are subject to change without notice
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
- SyncDrive Pro2 Mg 85Nm motor, powered by Yamaha with 400Wh battery with Giant range extender compatibility
- Superlight composite frame with alloy rear triangle 140mm travel with flip chip adjustable geometry and Marzocchi Bomber Z2 E-Tuned with 150mm travel
- Durable and accurate Shimano Deore 1x12 speed gearing
- Shimano 4 piston hydraulic disc brakes to confidently brake in all terrain and speeds
- Tranz-X dropper seat post with handlebar remote
- Tough Giant AM alloy rims
X-Small: 152cm - 163cm
Small: 158cm - 169cm
Medium: 164cm - 175cm
Large: 170cm - 181cm
BIKE SPECSFRAME
Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
FORK
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
REAR SHOCK
Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
HUBS
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
SPOKES
Sapim E-Lite [R] Race [F], e-bike optimised
RIMS
Giant AM, alloy 29" [F], 27.5" [R]
TYRES
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
CRANKSET
Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
BOTTOM BRACKET
N/A
SHIFT LEVERS
Shimano SLX 12 speed
DERAILLEURS
Shimano Deore 12-speed, Shadow+
CASSETTE
Shimano CS-M6100-12, 10-51T, 12-speed
CHAIN
KMC e.12 Turbo, EcoProteq, e-bike optimized
BRAKES
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
HANDLEBARS
Giant Contact 35 Trail. Grips: Liv Tactal Pro-E Single Lock-On Grips
STEM
Giant Contact SL 35
SADDLE
Liv Sylvia E+
SEATPOST
TranzX travel-adjustable dropper
PEDALS
N/A
MOTOR
Giant SyncDrive Pro2 Mg, 85Nm, Magnesium Casing, powered by Yamaha, PedalPlus 6-Sensor technology
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus, Giant EnergyPak Plus 200 range extender compatible
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool), MRP 1X custom "V3" co-moulded TR chain guide
|
