Description
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It starts with the Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts - 4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other.
When nothing but the best will do, the top-shelf S-Works Levo is outfitted SRAM’s new XX Transmission drivetrain, feature-packed FOX Factory suspension, and a super-light, super-tough Roval Traverse SL wheelset.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

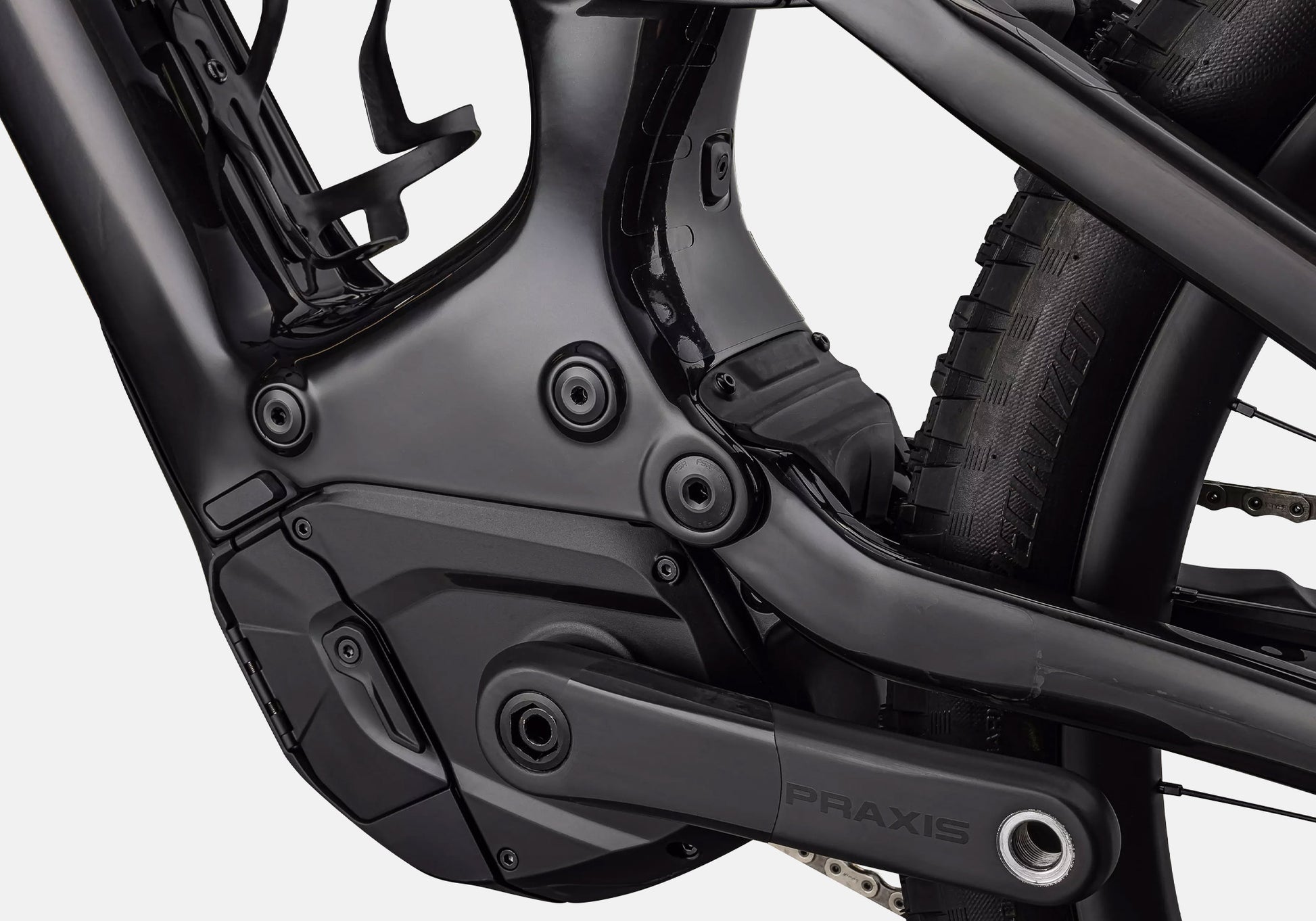

- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

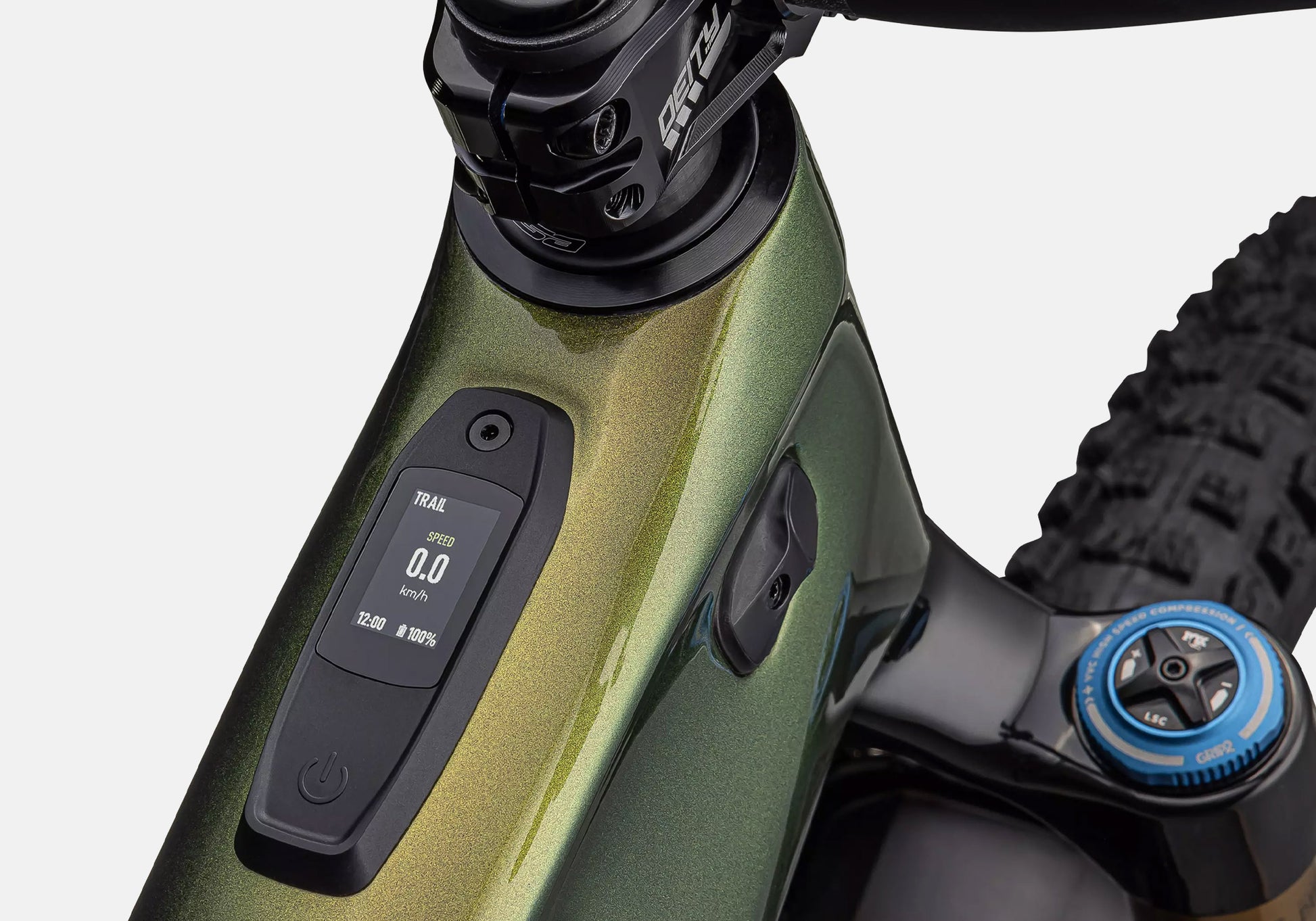

- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
SIZING
S1: 150cm - 160cm rider heightS2: 157cm - 173cm rider height
S3: 165cm - 180cm rider height
S4: 173cm - 188cm rider height
S5: 178cm - 193cm rider height
S6: 188cm - 203cm rider height
BIKE SPECSFrame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Fork
Fox 38 Factory, Grip 2 Damper, 29", 160mm Travel, Kashima, 44mm Offset
Stem
Deity, 35.0mm
Grips
Deity Grips
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
RockShox Reverb AXS, 30.9, 1X remote)
Seat Binder
Alloy, 38.6mm
Brakes
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotors
Shift Levers
SRAM XX Eagle Transmission Cassette, 12 seepd, 10-52t
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XG-1275, 12-speed, 10-52t
Chain
SRAM XX Eagle Transmission Flattop Chain
Crankset
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Rims
Roval Traverse SL Carbon 27.5/29
Hubs
Front: Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h. Rear: Roval Traverse SL 27.5, 148mm spacing, XD freehub body
Spokes
Roval
Tyres
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6". Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes
Presta, 40mm valve
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Wiring Harness
Custom Specialized harness
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Weight
22.5kg
|
