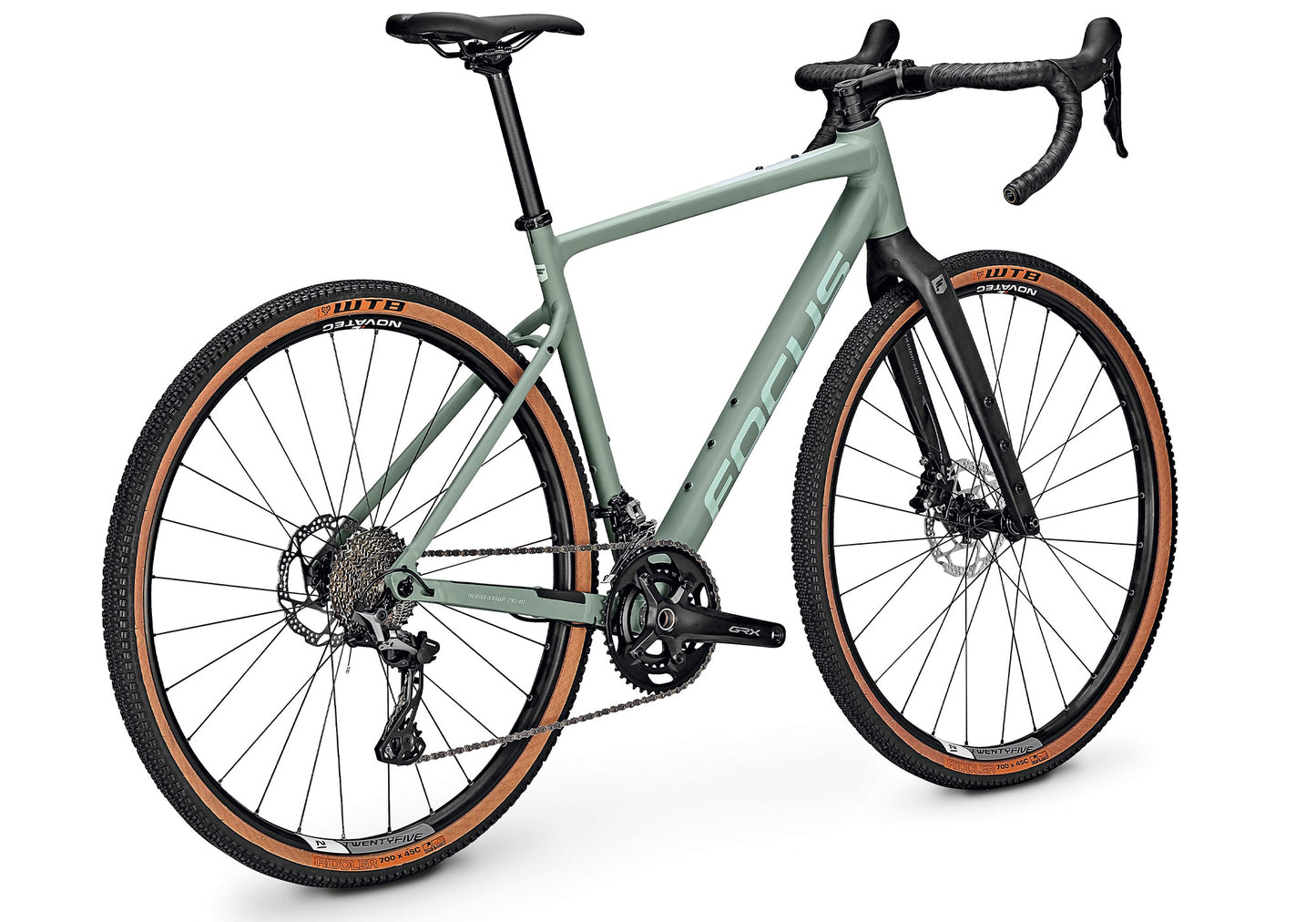

Description
Comfort and control on any terrain
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.
Huge tyre clearance
The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to specificate your ATLAS appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.
Various options to mount equipment
Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment. Every ATLAS 6.8 comes with a top tube bag. It can store all your necessities that you need during the ride.
ATLAS 6.8 Features
- Aluminium frame and carbon fork with integrated C.I.S. cable routing plus top tube bag
- Shimano GRX600 2x11 groupset with special gravel ergonomics for reliable shifting and safe braking even on rough terrain
- Reliable stability and high quality: Road Boost system wheels by Novatec with double-sealed hubs
SIZING: (rider height)
48 - suit riders 148-158cm
51 - suit riders 158-168cm
54 - suit riders 168-178cm
57 - suit riders 178-185cm
60 - suit riders 185-193cm
BIKE SPECSFRAME
Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing, Toptube Bag
FORK
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
FRONT WHEEL
Novatec 25 Elite, 25-622, disc, center lock 110x12 mm
REAR WHEEL
Novatec 25 Elite, 25-622, disc, center lock, front: 110x12 mm, 148x12 mm
INNER TUBES
Presta valve
FRONT TYRE
WTB Riddler, 700 x 45C, folding
REAR TYRE
WTB Riddler, 700 x 45C, folding
CRANKSET
Shimano GRX FC-RX600 11-speed
CHAINRINGS
30/46T
BOTTOM BRACKET
BSA
SHIFT LEVERS
Shimano GRX ST-RX600, 22-speed
DERAILLEURS
Rear: Shimano GRX RD-RX810, 11-speed. Shimano GRX FD-RX810
CASSETTE
Shimano 105 R7000, 11-speed, 11-34T
CHAIN
Shimano CN-HG601, 11-speed
FRONT BRAKE
Shimano GRX ST-RX400 Hydraulic Disc
REAR BRAKE
Shimano GRX ST-RX400 Hydraulic Disc
HANDLEBARS
FOCUS JD RA85, 31,8 mm, Drop: 116 mm, Reach: 74 mm, Flare: 10 degree
GRIPS
N/A
STEM
Aluminium, 31.8 mm, 6 degree rise
SADDLE
WTB SL8
SEATPOST
Aluminium, 27.2 mm, 0 mm set-back
SEAT BINDER
N/A
WEIGHT
10.8kg
EXTRAS
N/A
|
