Description
The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range.
Using Specialized's Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), the Levo provides a smooth and seamless amplification of your efforts - 4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. The optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride.
The Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features the all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
SIZING
S1: 150cm - 160cm rider height
S2: 157cm - 173cm rider height
S3: 165cm - 180cm rider height
S4: 173cm - 188cm rider height
S5: 178cm - 193cm rider height
S6: 188cm - 203cm rider height
BIKE SPECSFrame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

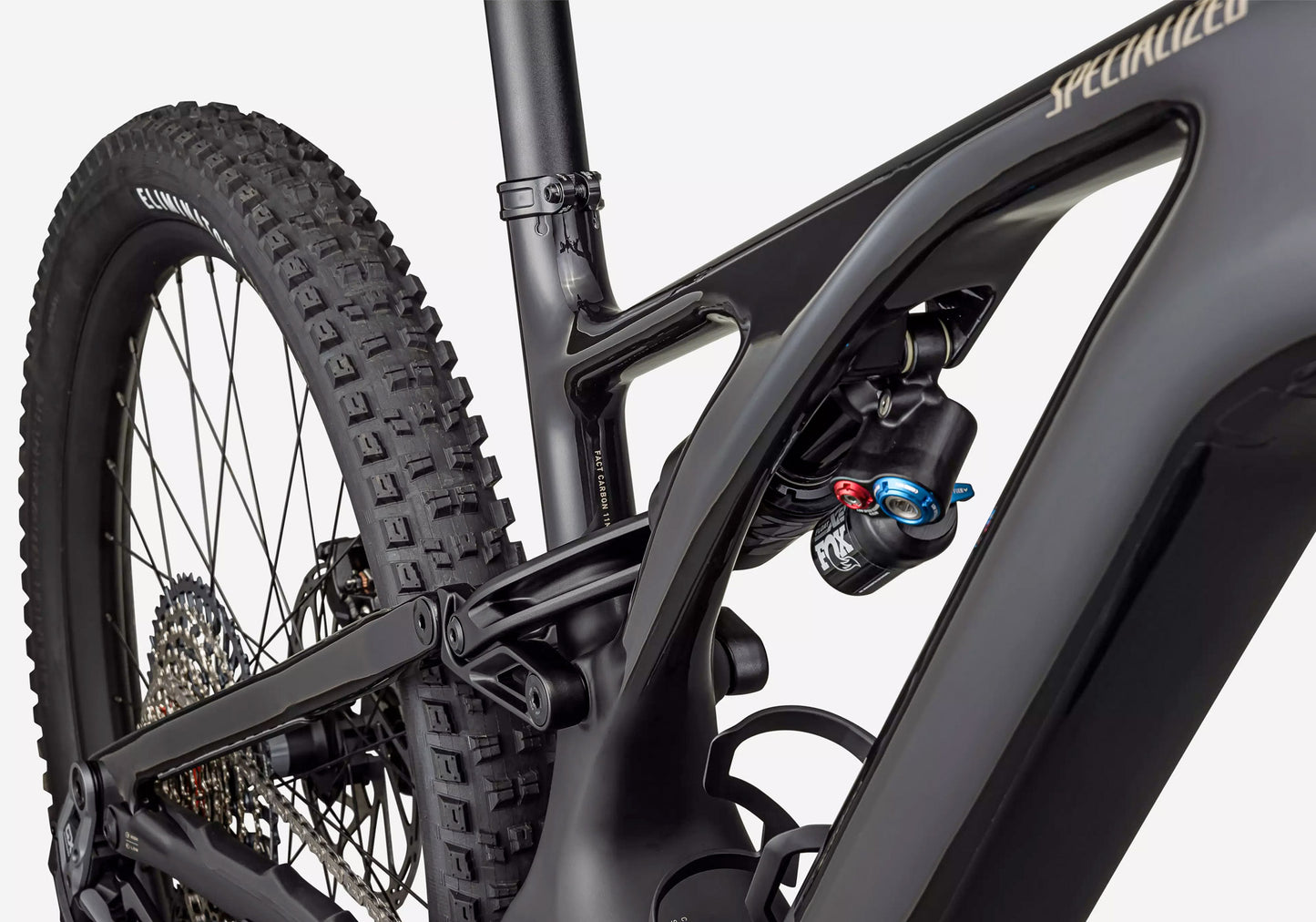

Rear Shock
S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm
Fork
Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Grips
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Seat Binder
Alloy, 38.6mm
Brakes
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm front rotor/200mm rear rotor
Shift Levers
SRAM AXS POD Controller 12 speed
Rear Derailleur
SRAM GX Eagle Transmission Derailleur 12 speed
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain 12 speed
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Rims
Front: Roval Traverse 29. Rear: Roval Traverse 27.5
Hubs
Front: Roval Traverse 29. Rear: Roval Traverse 27.5
Spokes
Roval
Tyres
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3". Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Presta, 40mm valve

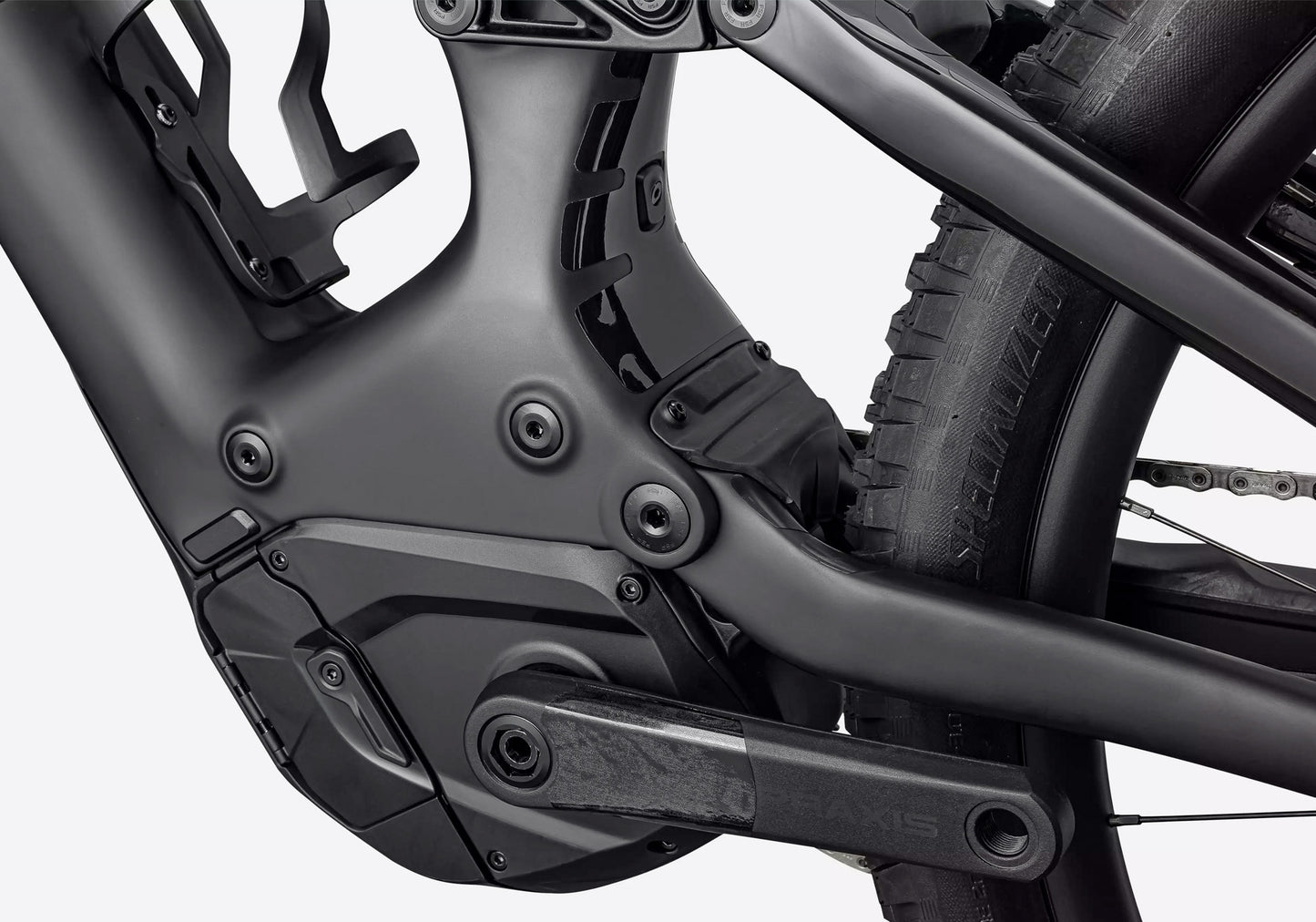

Motor
Specialized Turbo Full Power System 2.2 Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Wiring Harness
Custom Specialized harness
Weight
23.04kg
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
|
* Specifications are subject to change without notice
