Description

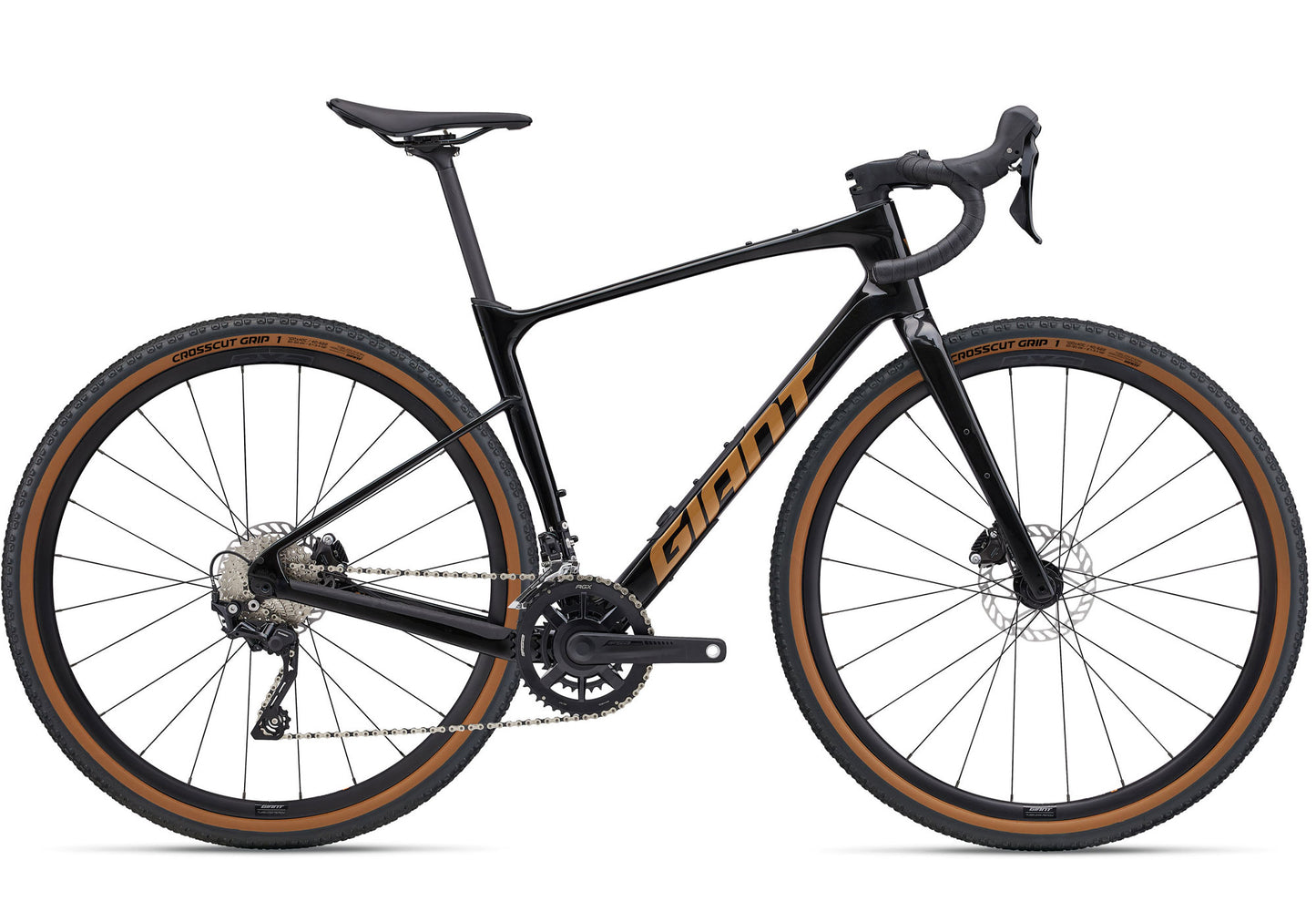

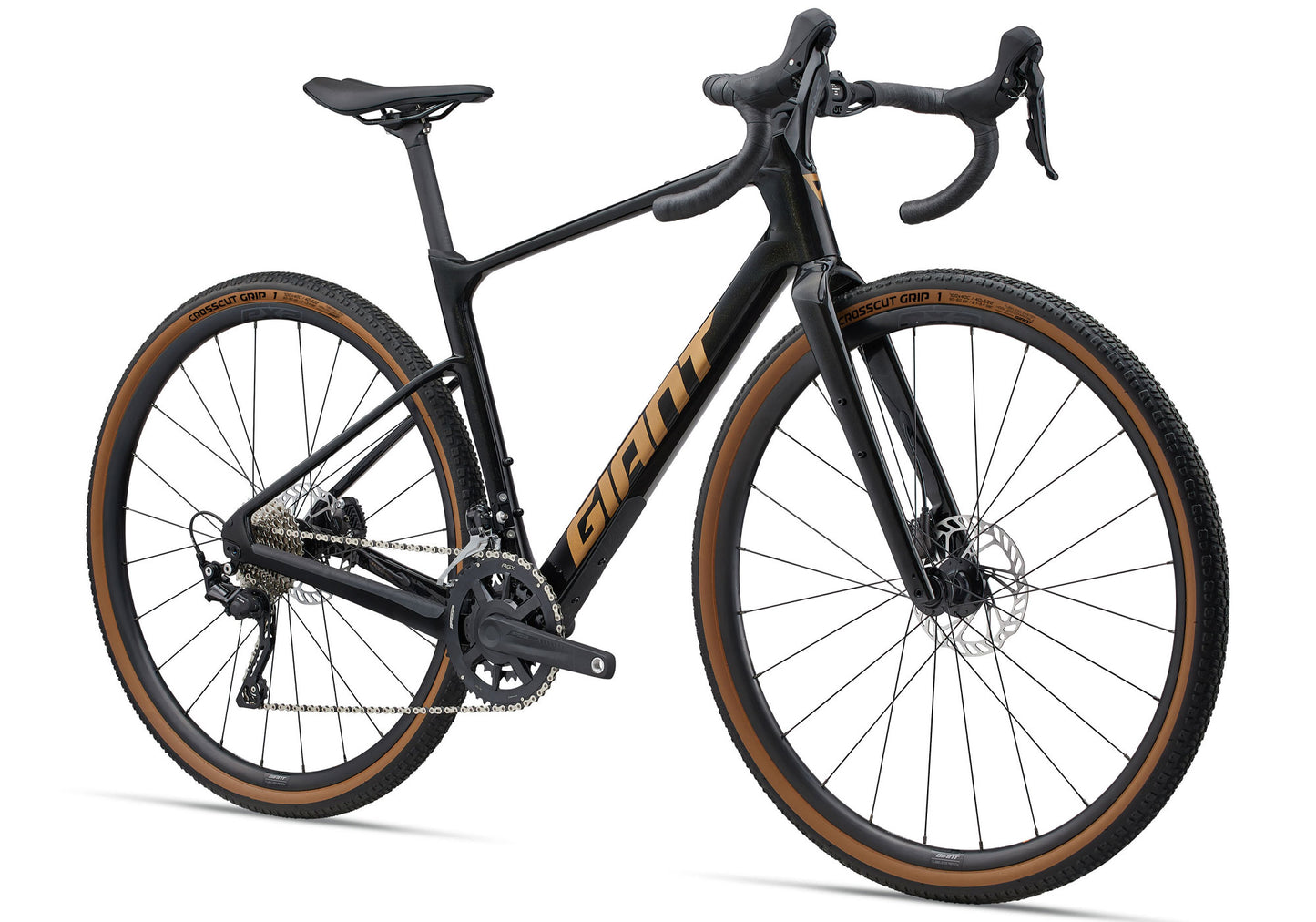

With a new composite frameset featuring fully integrated cable housing, the 2025 Giant Revolt Advanced 3 this lively gravel bike helps you push your limits on variable terrain. Featuring a vibration damping D-Fuse composite seatpost and D-Fuse alloy handlebars to absorb shocks and vibrations, you'll have greater control and less fatigue. A flip chip on the all-new, full composite rear dropout adjusts wheelbase and tyre clearance. Details include a new internal storage compartment on the down tube and additional frame mounts to add bottle cages, racks and other accessories.
Fast and versatile
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
Tuned compliance

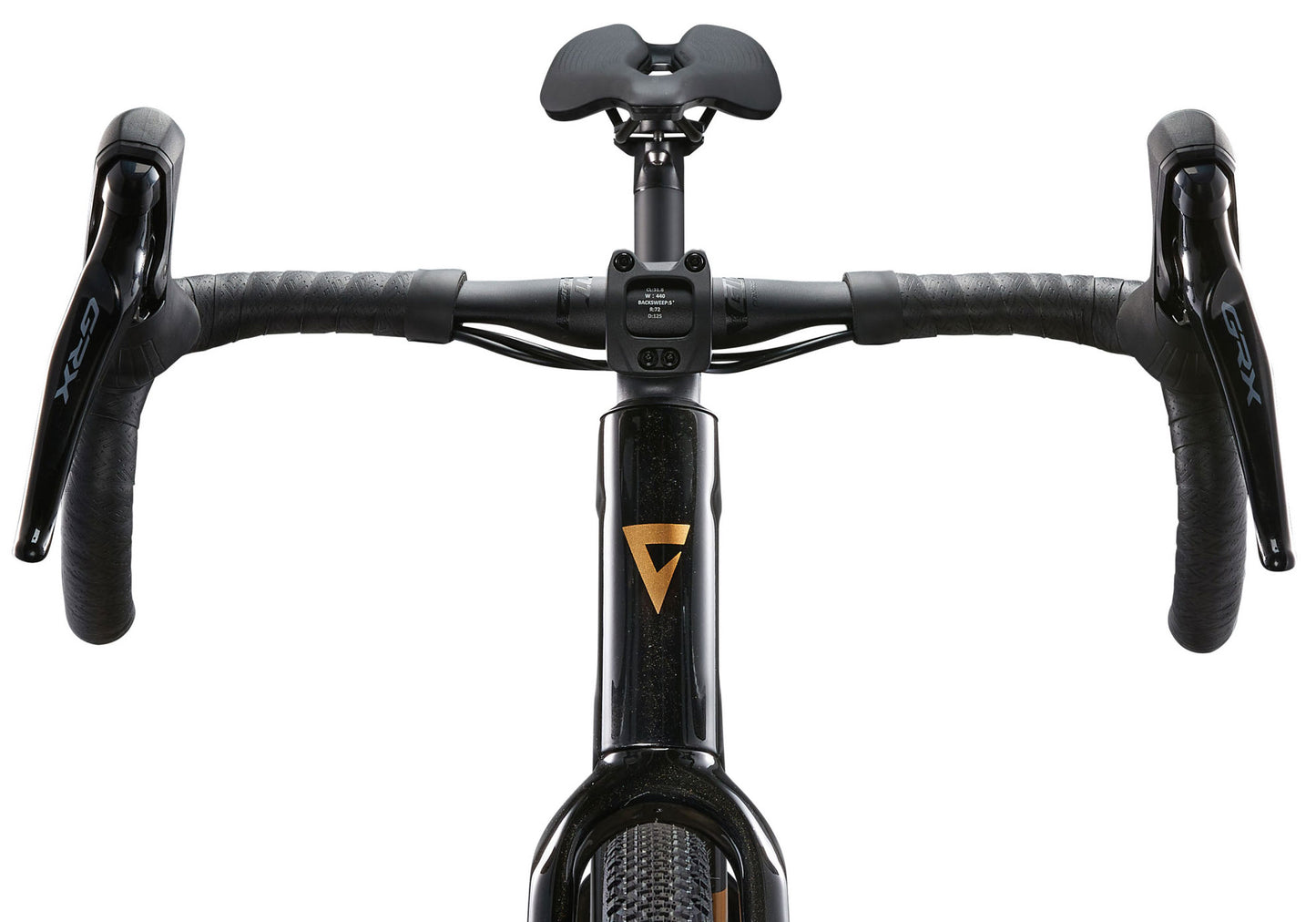

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.
Smart Integration

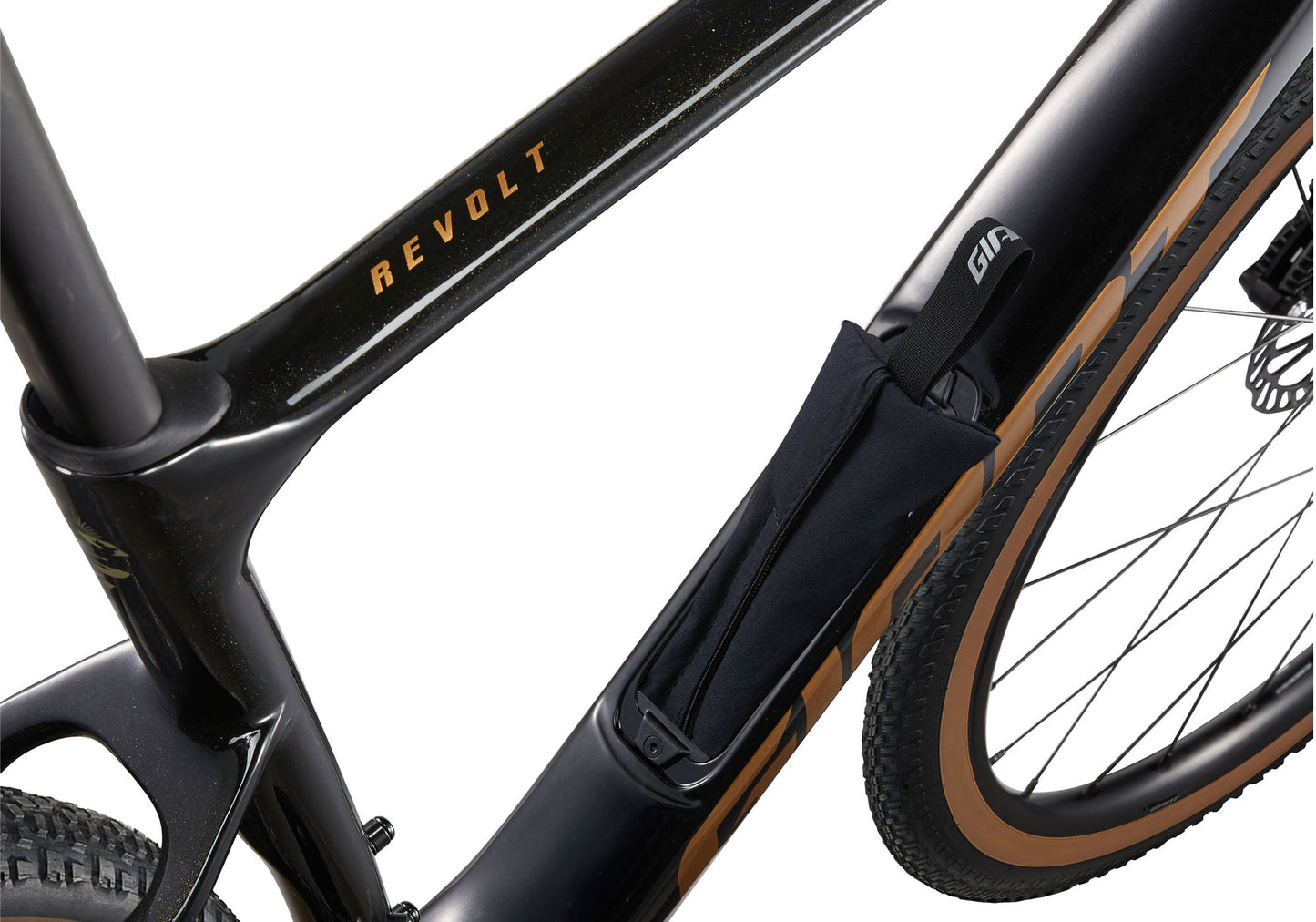

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.
- Advanced-grade composite frame and advanced composite forks for lively, tuned ride

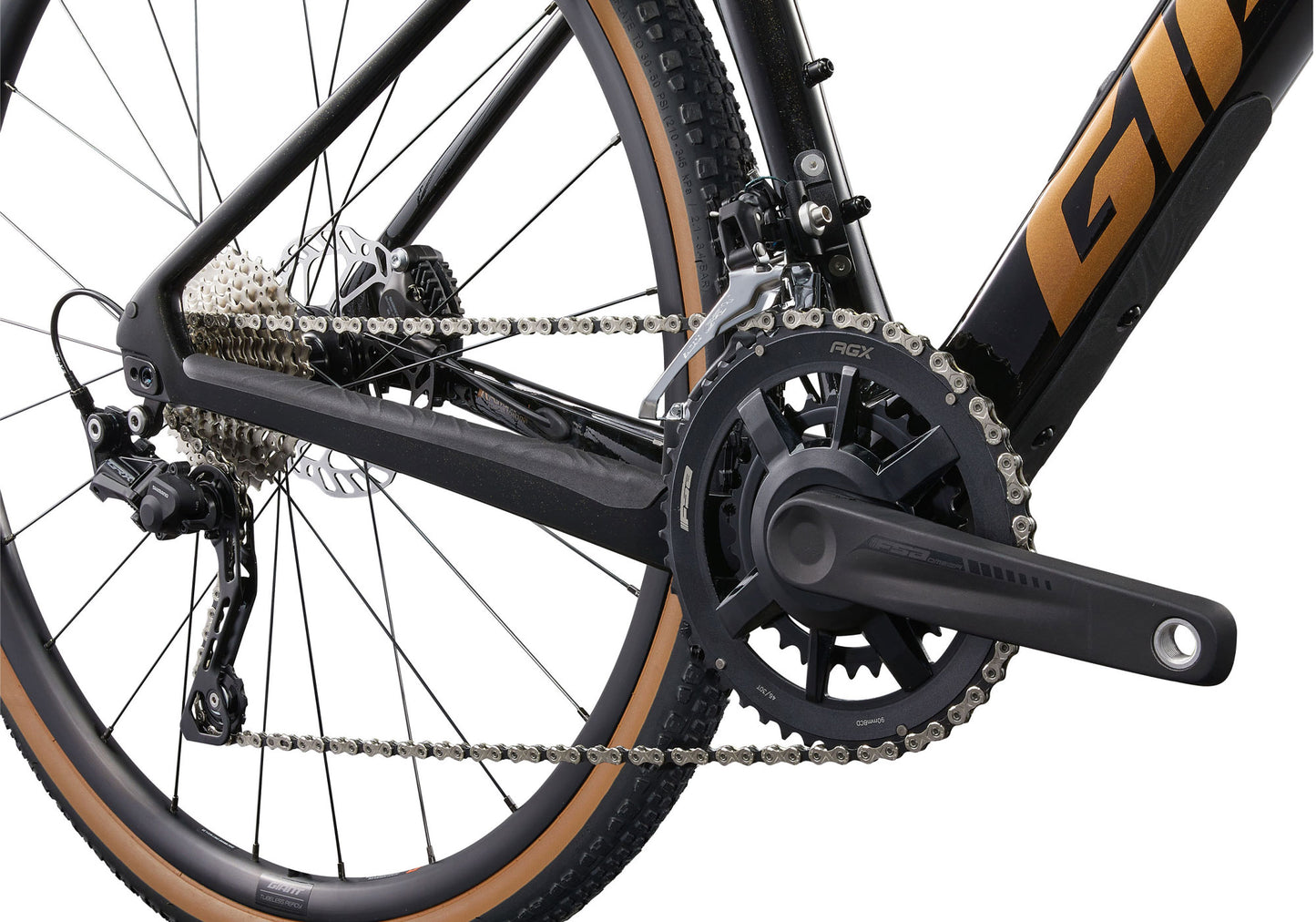

- Shimano GRX-RX400 gravel specific 2x10 speed groupset including Powerful Shimano hydraulic disc brakes. Simple and bulletproof with plenty of wide-range gear choices matched to an FSA Omega crankset.
- Giant P-X2 light and robust alloy wheelset
- Giant D-Fuse composite seatpost to absorb road vibrations
- Giant Crosscut 700x40c tubeless tyres
SIZING: (Rider height)
X-Small: 155-166cm
Small: 159-171cm
Medium: 169-181cm
Medium/Large: 174-186cm
Large: 179-191cm
X-Large: 189-200cm
BIKE SPECSFRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
FORK
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Sapim
RIMS
Giant P-X2 Disc wheelset, alloy
INNER TUBES
Presta valve
TYRES
Giant CrossCut Grip (Tan) or Maxxis Rambler TR (Black), 700x40c, tubeless
CRANKSET
FSA Omega, 30/46T
CHAINRINGS
30/46T
BOTTOM BRACKET
FSA BB-AL86, press fit
SHIFT LEVERS
Shimano GRX RX-400, 2x10
FRONT DERAILLEUR
Shimano GRX RX-400
REAR DERAILLEUR
Shimano GRX RX-400
CASSETTE
Shimano Tiagra, 11x34T 10-speed
CHAIN
KMC X10-1
BRAKES
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
HANDLEBARS
Giant Contact XR D-Fuse, 31.8mm
TAPE
Stratus Lite 3.0
STEM
Giant Contact AeroLight, -10 degree
SADDLE
Giant Approach
SEATPOST
Giant D-Fuse, composite, 14mm offset
SEAT BINDER
Integrated w/ frame
PEDALS
N/A
|
* Specifications are subject to change without notice
