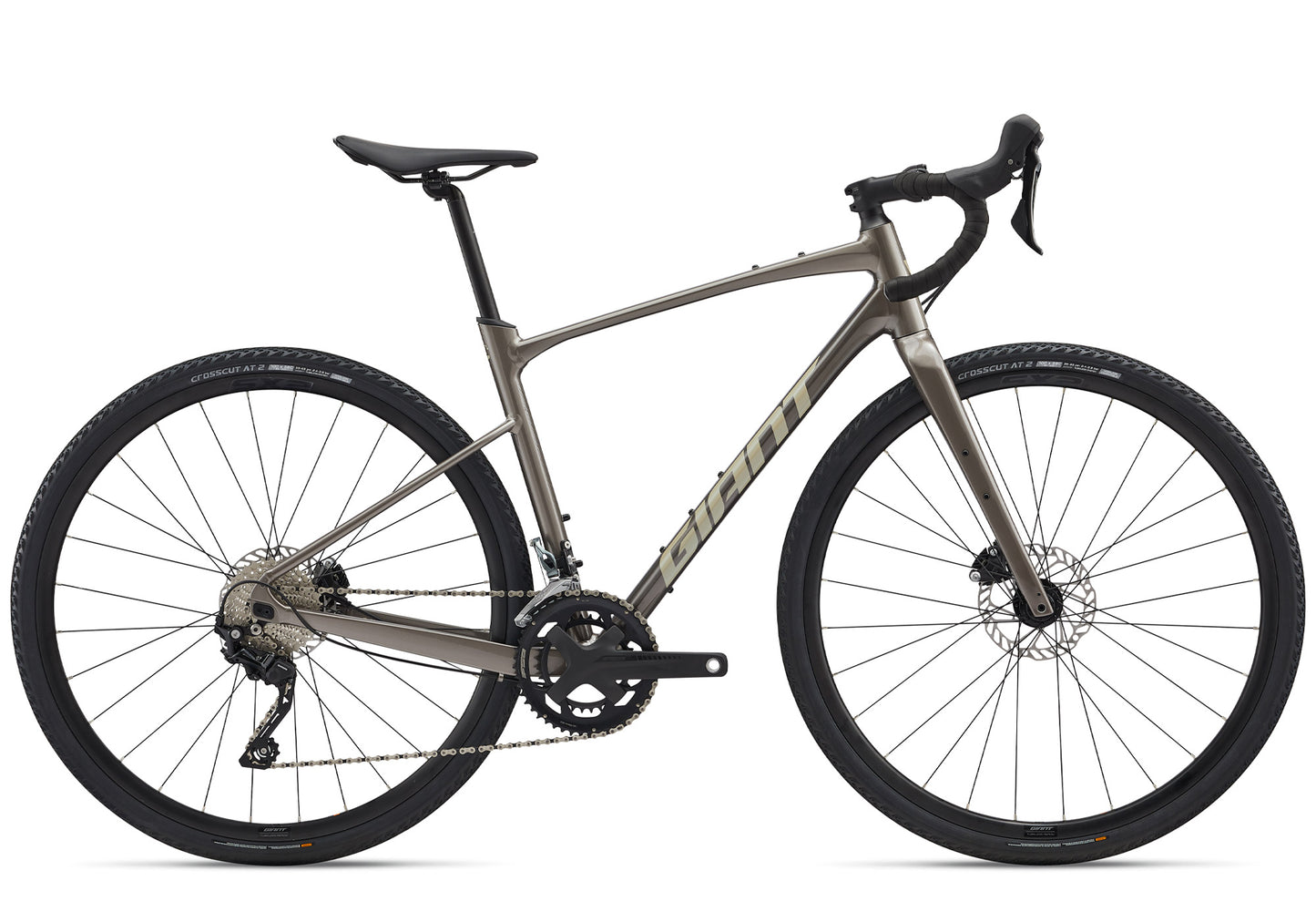

2025 Giant Revolt 1 Men's Gravel/Adventure Bike, Metal

2025 Giant Revolt 1 Men's Gravel/Adventure Bike, Metal

NOTE: Bicycles are Pick-Up in-store only. Please select Pick-Up" under delivery options in the cart.

Regular price $2,499.00 AUD
Regular price $0.00 AUD Sale price $2,499.00 AUD
Sale Call to order
GST included. Shipping calculated at checkout.
Size

RIDE ROADS, GRAVEL OR DIRT WITH THIS VERSATILE ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.

Confident handling
Frame is designed with endurance positioning and shorter chain stays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
Dropped seat stays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar* and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. *On select models

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

  • Light and responsive alloy frame and advanced grade composite forks to save weight
  • Wide-range gravel specific Shimano Tiagra/GRX 2x10 speed gearing
  • Tough yet light Giant S-X2 alloy wheels
  • Giant Crosscut AT 2 tubeless tyres
  • Giant D-Fuse alloy seat post for vibration damping
  • Powerful Shimano GRX RX-400 hydraulic brakes

    SIZING: (Rider height)

    X-Small: 155-166cm
    Small: 159-171cm
    Medium: 169-181cm
    Medium/Large: 174-186cm
    Large: 179-191cm
    X-Large: 189-200cm

    BIKE SPECS

    FRAME
    ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
    FORK
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
    FRONT HUB
    Giant alloy, 12mm thru-axle
    REAR HUB
    Giant alloy, 12mm thru-axle
    SPOKES
    Stainless
    RIMS
    Giant S-X2 Disc wheelset, alloy
    INNER TUBES
    Presta valve
    FRONT TYRE
    Giant CrossCut AT 2, 700x38c, tubeless
    REAR TYRE
    Giant CrossCut AT 2, 700x38c, tubeless
    CRANKSET
    FSA Omega Adventure, 32/48T
    CHAINRINGS
    32/48T
    BOTTOM BRACKET
    FSA Mega EXA sealed
    SHIFT LEVERS
    Shimano GRX RX-400, 2x10 speed
    FRONT DERAILLEUR
    Shimano Tiagra
    REAR DERAILLEUR
    Shimano GRX RX-400
    CASSETTE
    Shimano HG500, 11x34T
    CHAIN
    KMC X10
    FRONT BRAKE
    Shimano GRX RX-400 hydraulic, Giant MPH rotors 160mm
    REAR BRAKE
    Shimano GRX RX-400 hydraulic, Giant MPH rotors 160mm
    HANDLEBARS
    Giant Contact XR D-Fuse, 31.8mm
    TAPE
    Cork tape with gel
    STEM
    Giant Contact, 8-degree
    SADDLE
    Giant Approach
    SEATPOST
    Giant D-Fuse alloy, 14mm offset
    SEAT BINDER
    Integrated w/ frame
    PEDALS
    N/A

    * Specifications are subject to change without notice
