2023 Giant Revolt Advanced 1, Men's Adventure/Gravel Bike, Cordovan
2023 Giant Revolt Advanced 1, Men's Adventure/Gravel Bike, Cordovan
NOTE: Bicycles are Pick-Up in-store only. Please select Pick-Up" under delivery options in the cart.
Couldn't load pickup availability
Fast gravel, rough gravel, pavement or dirt. However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light

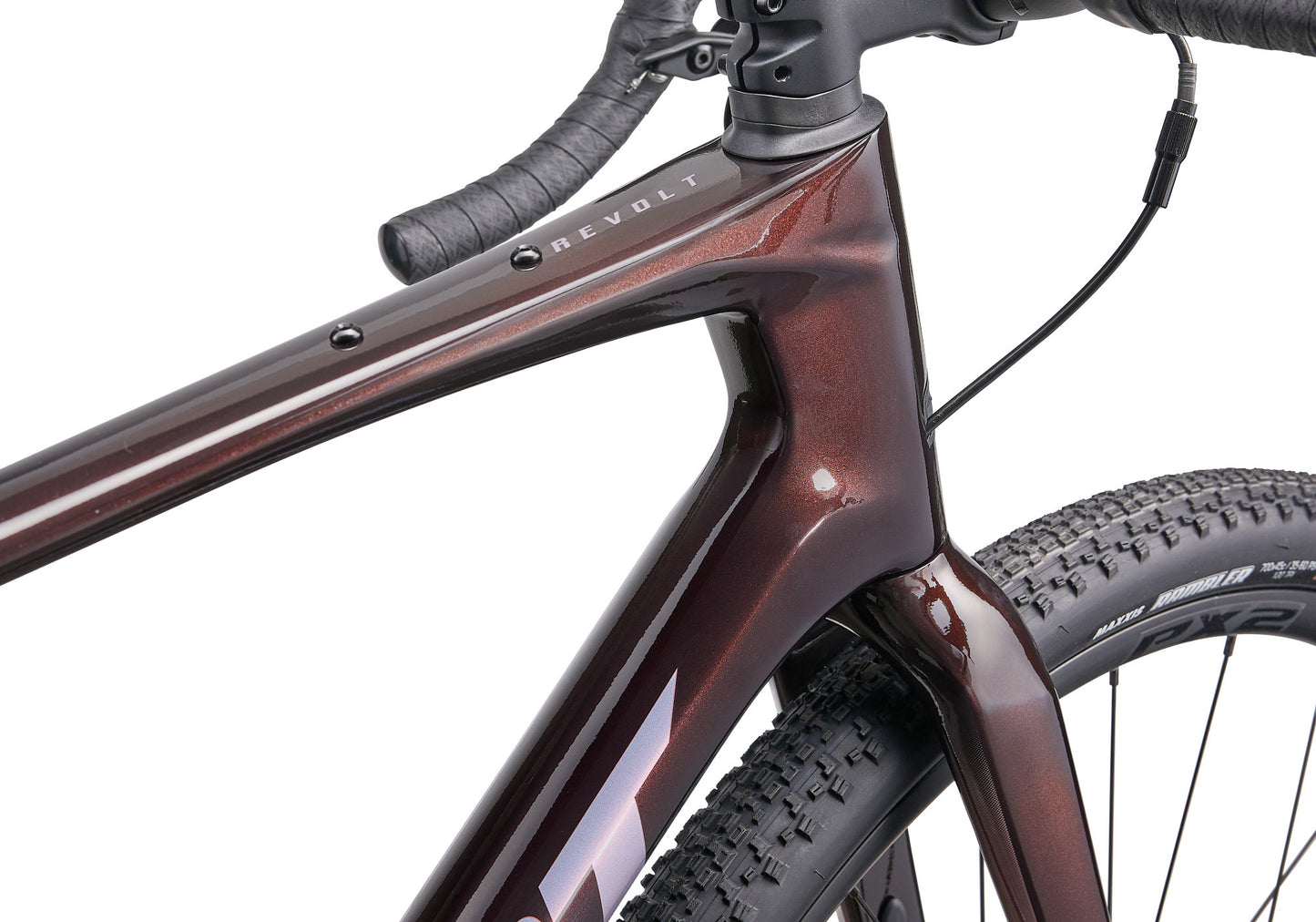

Advanced composite frame and Advanced composite fork save a combined 160 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
SIZING: (Rider height)
X-Small: 155-166cm
Small: 159-171cm
Medium: 169-181cm
Medium/Large: 174-186cm
Large: 179-191cm
X-Large: 189-200cm
BIKE SPECSFRAME
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
FORK
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
FRONT HUB
Giant alloy, 12mm thru-axle
REAR HUB
Giant alloy, 12mm thru-axle
SPOKES
Sapim
RIMS
Giant P-X2 Disc wheelset, alloy
INNER TUBES
Presta valve
FRONT TYRE
Maxxis Rambler, 700x45c, tubeless
REAR TYRE
Maxxis Rambler, 700x45c, tubeless

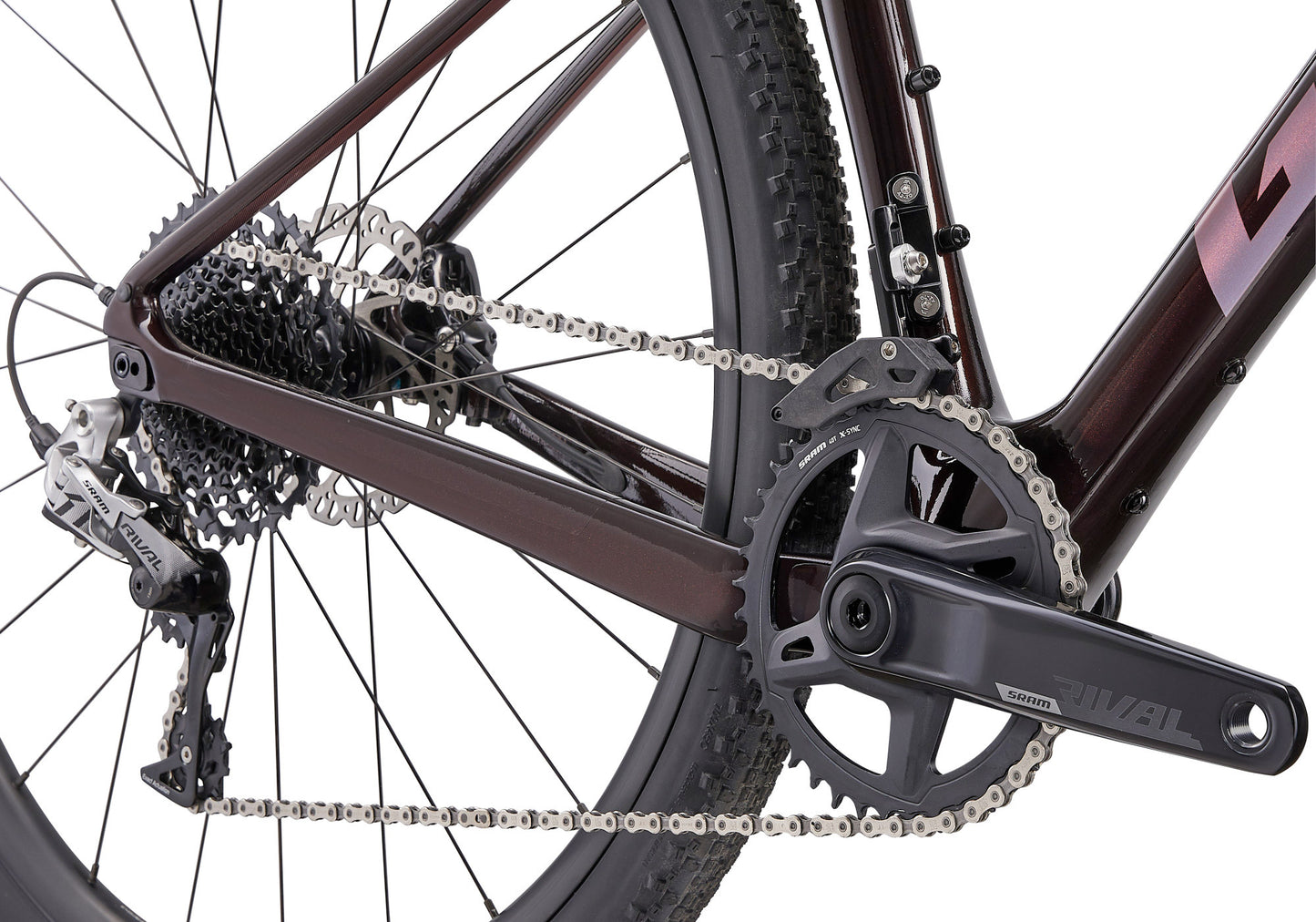

CRANKSET
SRAM Rival D1 Wide DUB, 40t
CHAINRINGS
40T
BOTTOM BRACKET
SRAM DUB, press fit
SHIFT LEVERS
SRAM Rival 1, 11 speed
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Rival 1
CASSETTE
SRAM Rival, 11-speed, 11x42
CHAIN
SRAM Rival D1
FRONT BRAKE
SRAM Rival 1 hydraulic, Giant MPH rotors 160mm
REAR BRAKE
SRAM Rival 1 hydraulic, Giant MPH rotors 160mm
HANDLEBARS
Giant Contact XR D-Fuse, 31.8mm
TAPE
Stratus Lite 3.0
STEM
Giant Contact, 8-degree
SADDLE
Giant Approach
SEATPOST
Giant Contact Switch, dropper, 30.9mm
SEAT BINDER
Integrated w/ frame
PEDALS
N/A
|
Description
Fast gravel, rough gravel, pavement or dirt. However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and Advanced composite fork save a combined 160 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
SIZING: (Rider height)
X-Small: 155-166cm
Small: 159-171cm
Medium: 169-181cm
Medium/Large: 174-186cm
Large: 179-191cm
X-Large: 189-200cm
BIKE SPECSFRAME
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
FORK
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
FRONT HUB
Giant alloy, 12mm thru-axle
REAR HUB
Giant alloy, 12mm thru-axle
SPOKES
Sapim
RIMS
Giant P-X2 Disc wheelset, alloy
INNER TUBES
Presta valve
FRONT TYRE
Maxxis Rambler, 700x45c, tubeless
REAR TYRE
Maxxis Rambler, 700x45c, tubeless
CRANKSET
SRAM Rival D1 Wide DUB, 40t
CHAINRINGS
40T
BOTTOM BRACKET
SRAM DUB, press fit
SHIFT LEVERS
SRAM Rival 1, 11 speed
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Rival 1
CASSETTE
SRAM Rival, 11-speed, 11x42
CHAIN
SRAM Rival D1
FRONT BRAKE
SRAM Rival 1 hydraulic, Giant MPH rotors 160mm
REAR BRAKE
SRAM Rival 1 hydraulic, Giant MPH rotors 160mm
HANDLEBARS
Giant Contact XR D-Fuse, 31.8mm
TAPE
Stratus Lite 3.0
STEM
Giant Contact, 8-degree
SADDLE
Giant Approach
SEATPOST
Giant Contact Switch, dropper, 30.9mm
SEAT BINDER
Integrated w/ frame
PEDALS
N/A
|
